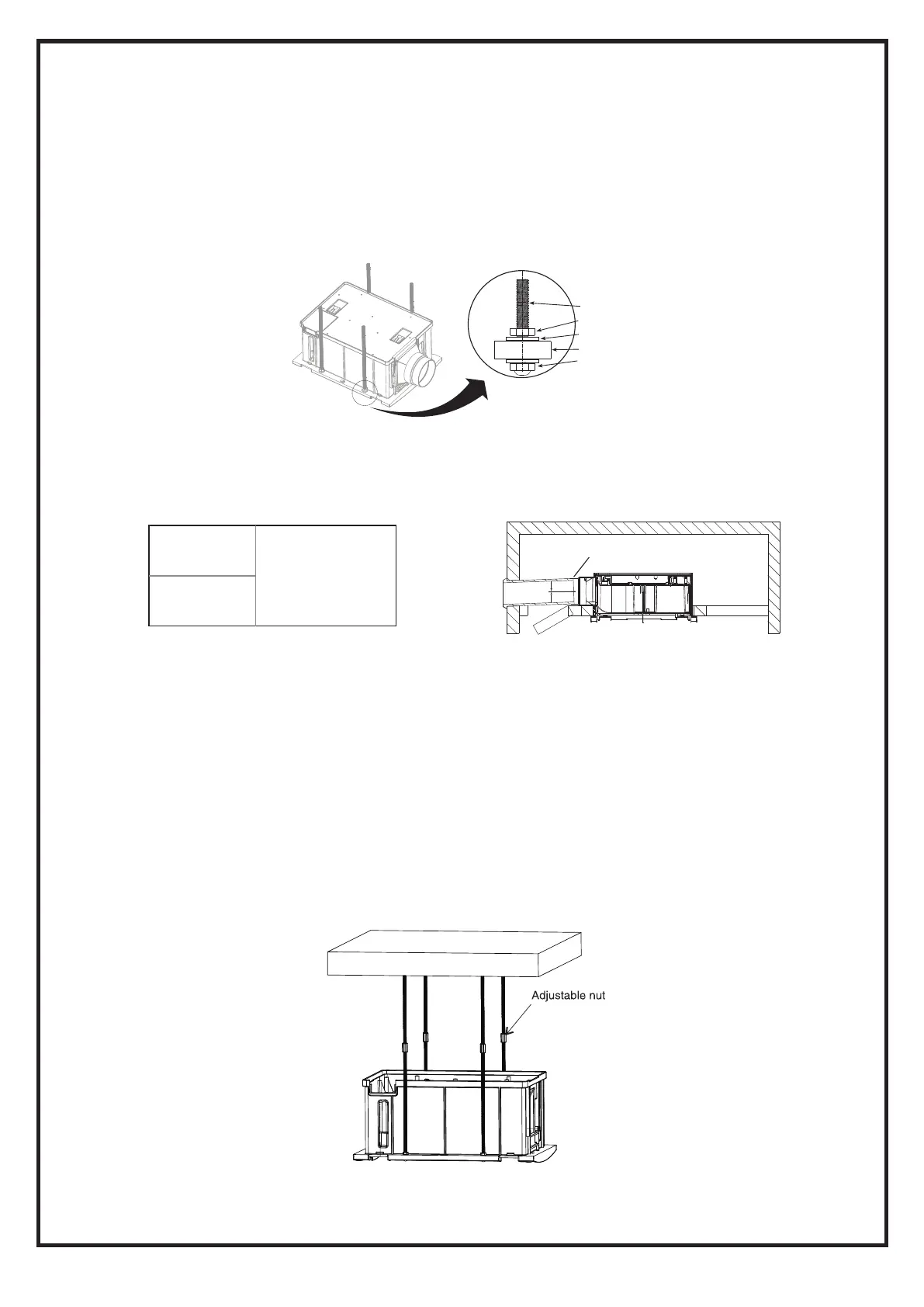

【 Installation Method】
1) he Main Body ：
Install t
2) Install the Exhaust Pipe
B.Ceiling Type Method
Plastics
Aluminum pipe
Nominal 4"
(inner diameter＞100mm)
Tape or fillings
Downdip 1-2
1
2
3
4
5
1.Screw
2.Nut
3.Washer
4The machine fixed hole
5.Hooded Nut
4) The minimum distance between the surrounding structures should be 50 cm.
Open the 4 screw covers, and use four screws to fix the Front Panel and the Main Body.
After having done the above , please confirm the following inspection points .
■
-06-
■ Whether the installation of the Front Panel is well fixed.
■ Whether the noise or shaken happen during operation.
■ Use tape or the filling to seal the junction between the exhaust pipe and the air outlet joint.
■ The exhaust pipe should have the tendency(1 degree to 2 degrees) down towards outside.
■ Fix the Main Body to the Boom ( Recommend Boom M6 if necessary).
3) Install the Front Panel
