Whirlpool HB124 - Installation Method

【Installation Method 】

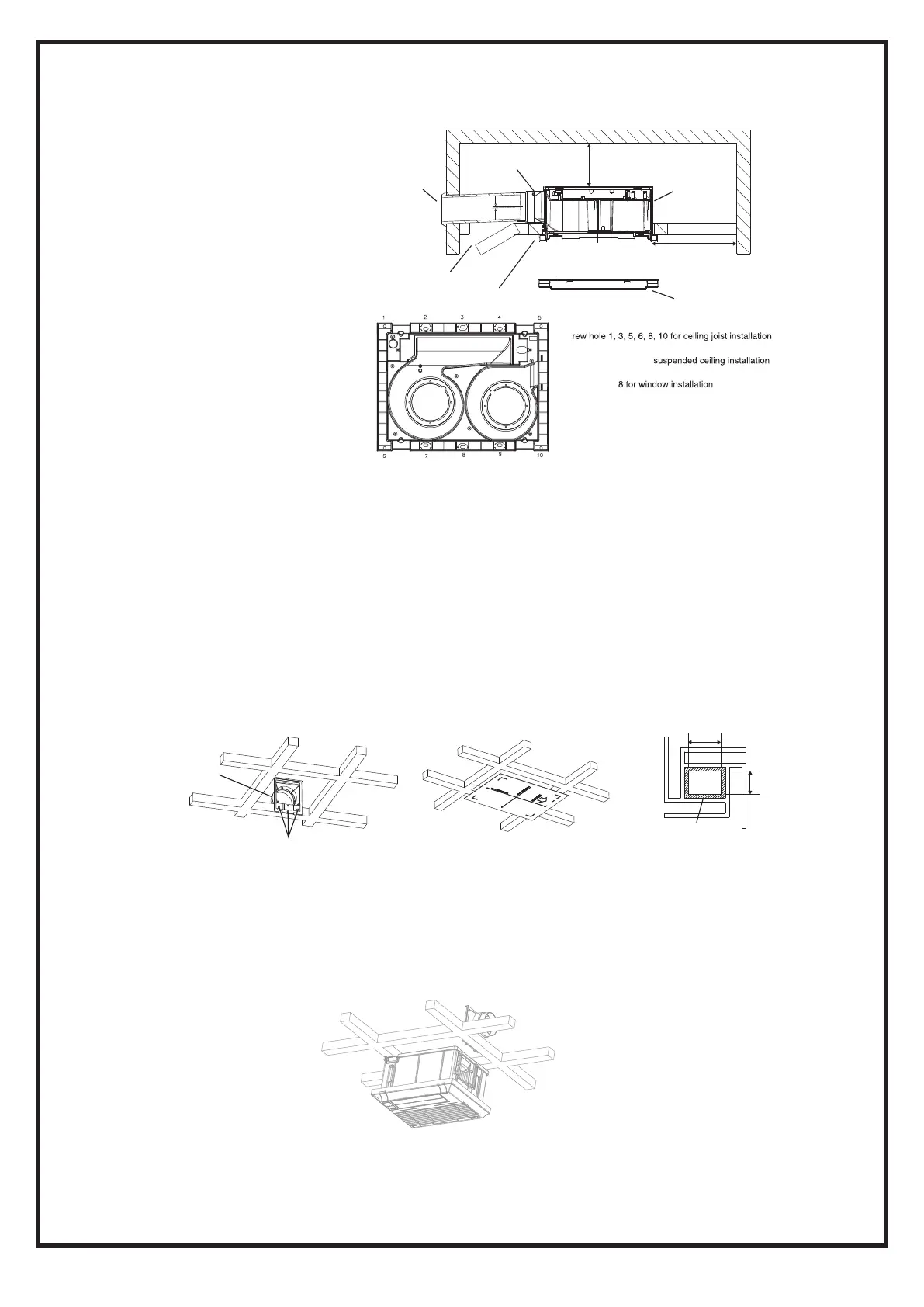

●Installation reference picture：
A. Ceiling fixed frame method
■Please use three Self-tapping screws(Φ4*25mm) to fix the Air outlet joint in the ceiling of the fixed box.
■Please put the Main Body directly face the guide slot of the Air outlet joint ,then
push up the Main Body.
■Please ensure that the Main Body joined to the Air outlet joint , then use four
subsidiary of the tapping screws (diameter 4 * 25 mm) to fix the MainBody.
three Self-tapping screws(Φ4*25mm)
Fixed Frame
375mm
262mm
The Air outlet joint
Exhaust pipe
Air outlet joint
Over 5cm
Main body
Over 50cm to the wall
Front panel
Self-tapping screw(4 pieces)
Inspecttion opening
Downdip 1-2
4) The minimum distance between the surrounding structures should be 50 cm.
Sc
Screw hole 2,4,7,9 for
Screw hole 3,
-05-
1) Install the Fixed Frame to the ceiling.
■Make the fixed frame.
■Please use materials that can bear 6kg to fix the surrounding part.
■The Fixed Frame should use sticks of 30*25mm .
■Size of the inner part of the Frame ：375*262mm.
■If there is no exhaust pipe connected to the outdoors, please firstly install hard
exhaust pipe of inner diameter 98.4mm.
2) Install the Air outlet joint
3) Install the Main Body
