【 Installation Method】
Size of the Front Panel：
300mm x 400mm
Size of the frame of the Window：
300mm x 400mm
The thickness of the Main Body：
164mm
*Window type installation must be transverse installation.
1) Install at the place of the aluminum framed window or replace the exhaust fan in the
bathroom.
2) Fix the water resistance housing to the frame of the aluminum window(must use the
waterproof glue for the waterproof).
3) After connecting the power cord, embed the Main body into the hole with screws.
4) The minimum distance between the surrounding structures should be 50 cm.

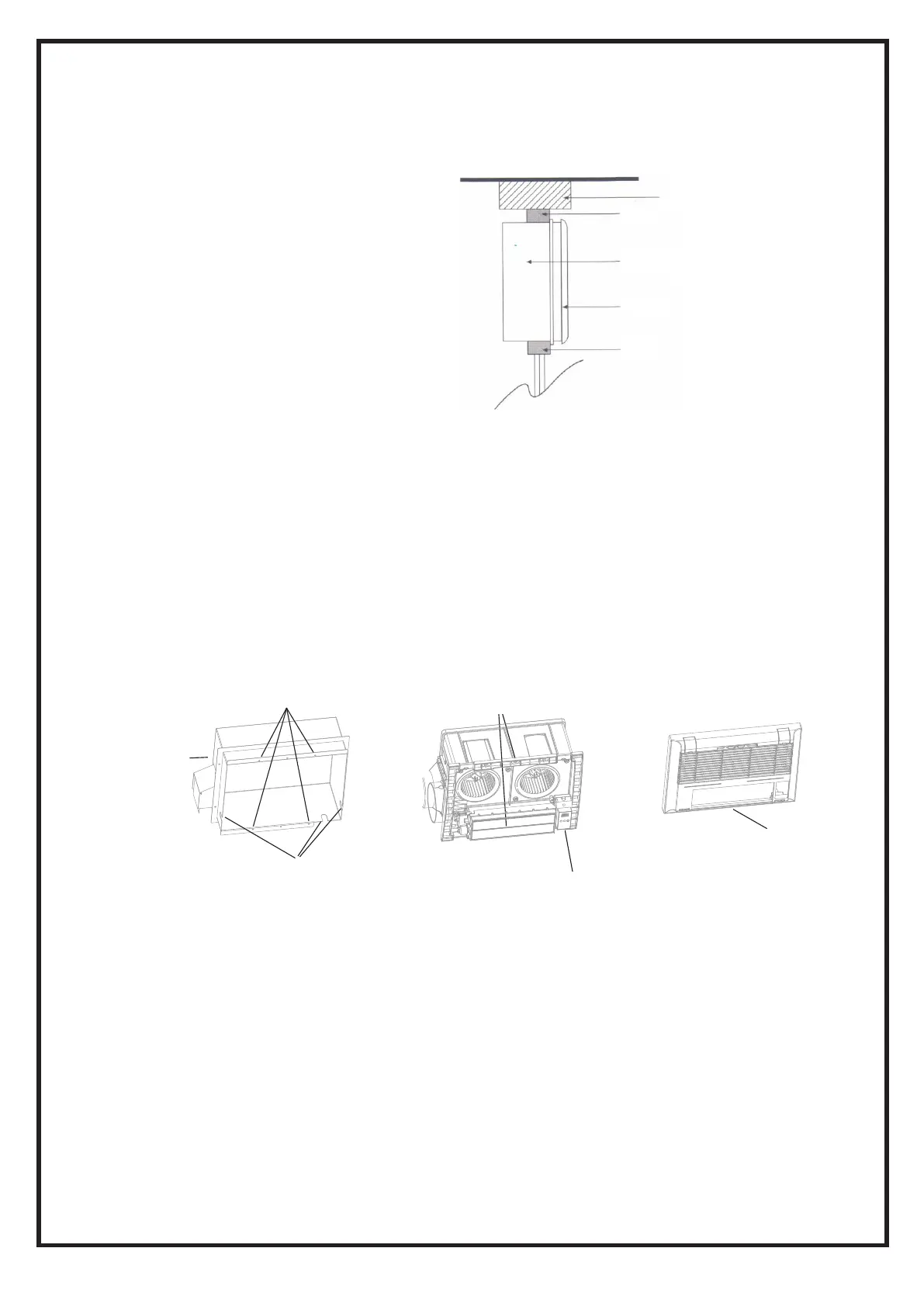

C.Window type method
Power and the outlet hole of remote control
Water resistance
housing
Nails fixed hole
Power and the remote control wire joint place
Fixed screw of the Main Body
Front panel
(Water resistance housing)
(Aluminium window)
( ) Front panel
(Wall)
(Aluminium window)
-07-
