4-27
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall.
4. Remove the rear panel from the washer
(see page 4-20 for the procedure).
5. Remove the drive belt from the pulley by
rotating the pulley and pulling the belt off
(see the top right photo).

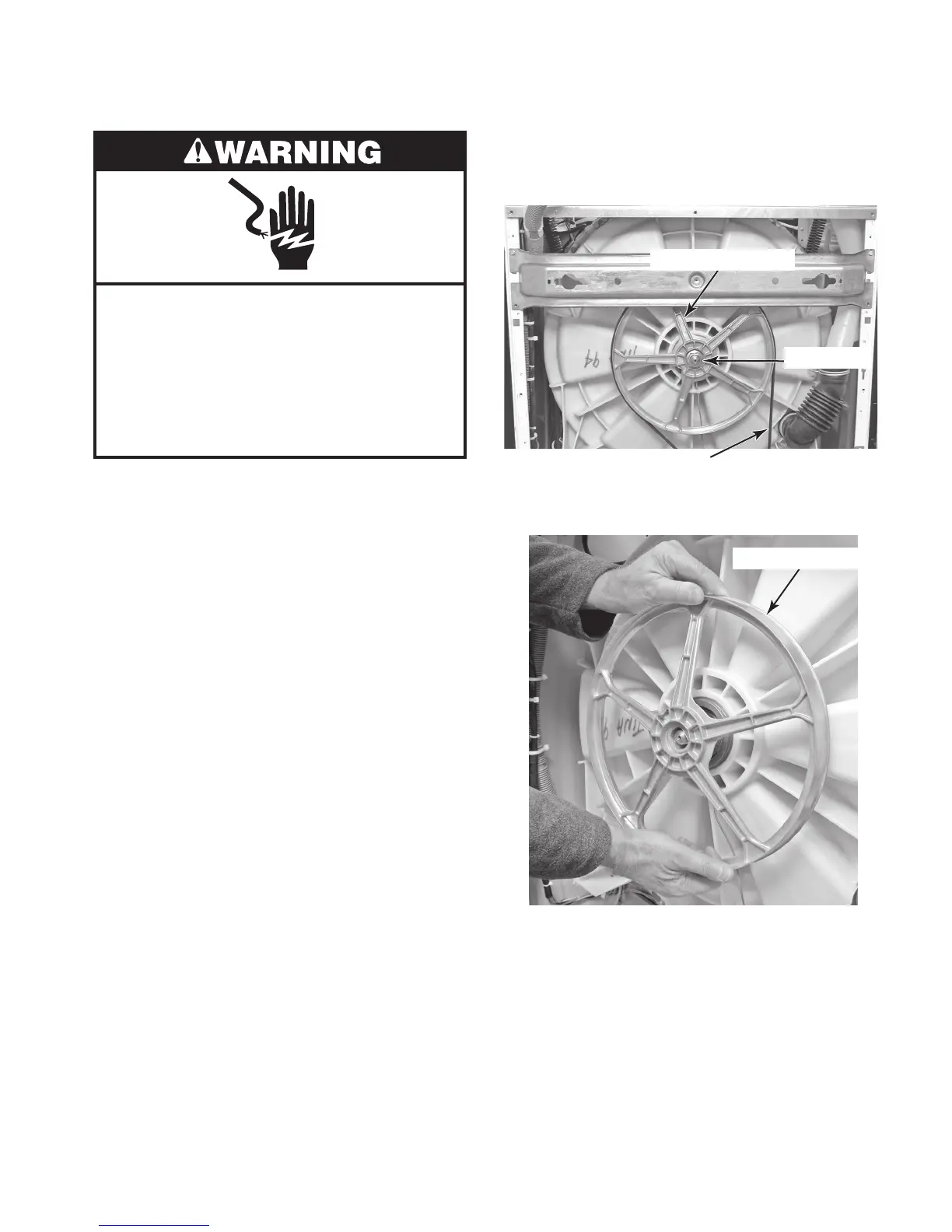

REMOVING THE BASKET DRIVE PULLEY
Drive Belt
15/16˝ Nut
Basket Drive Pulley
6. Use a large screwdriver and lock the pul-
ley, then remove the 15/16
˝ nut from the
drive pulley.
7. Pull the basket drive pulley off the basket
shaft and remove it.
Basket Drive Pulley
To Next Page
