2-5
DRAIN SYSTEM
The washer can be installed using the standpipe
drain system (floor or wall), the laundry tub
drain system, or the floor drain system. Select
the drain hose installation method you need
(see “Tools and Parts”).

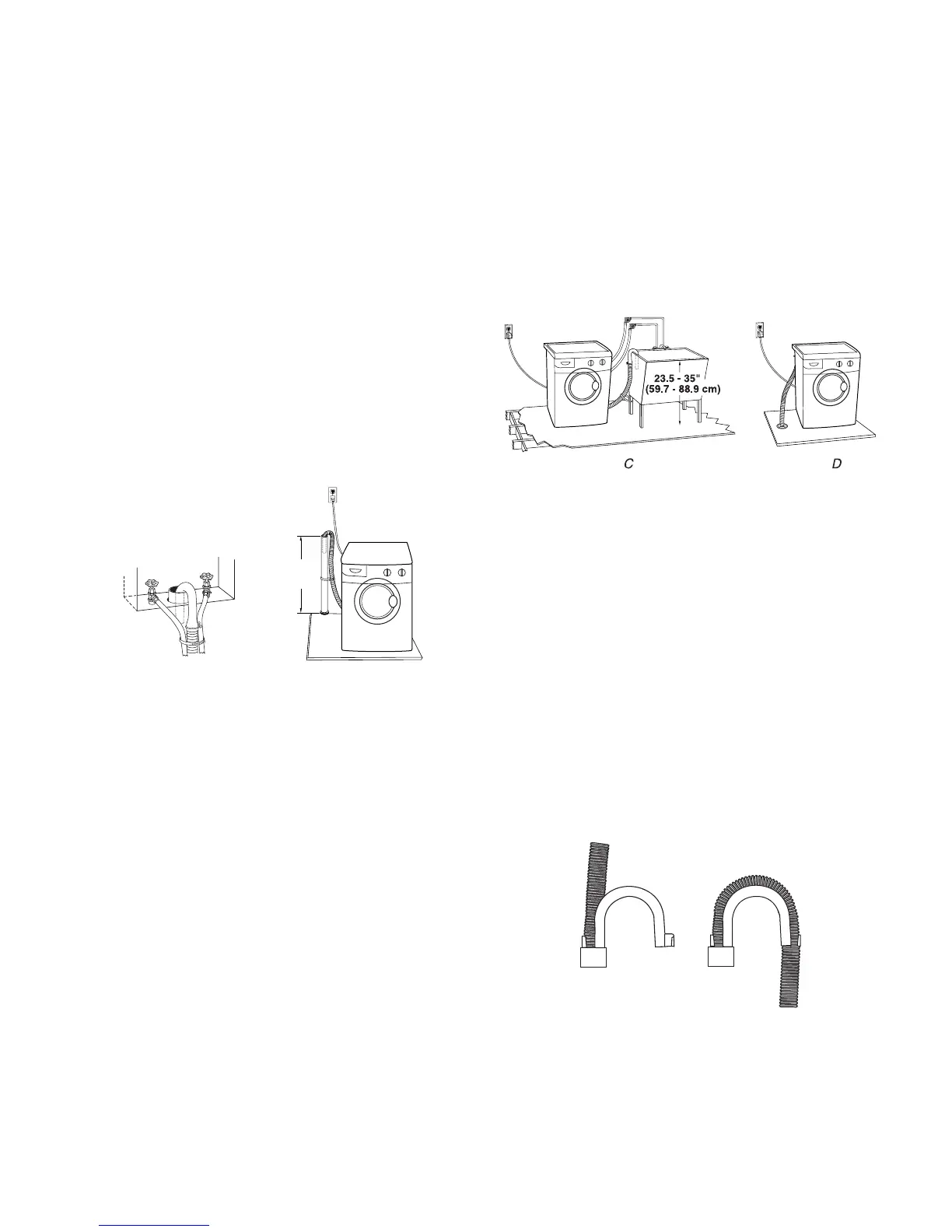

Standpipe Drain System
Wall Or Floor (Views A & B)
The standpipe drain requires a minimum diam-
eter standpipe of 2″ (5 cm). The minimum
carry-away capacity can be no less than 4.2
gal. (15.9 L) per minute. A 2″ (5 cm) diameter
to 1″ (2.5 cm) diameter standpipe adapter kit is
available (see “Tools and Parts”).
The top of the standpipe must be at least 23.5″
(59.7 cm) high and no higher than 72″ (182.88 cm)
from the bottom of the washer.
Laundry Tub Drain System (View C)
The laundry tub requires a minimum carry-
away capacity of 4.2 gal. (15.9 L) per minute.
The top of the laundry tub must be at least 23.5″
(59.7 cm) above the floor and no higher than
72″ (182.88 cm) from the bottom of the washer.
CONNECT DRAIN HOSE
Proper connection of the drain hose will protect
your floors from damage due to water leakage.
To prevent the drain hose from coming off or
leaking, it must be installed per the following
instructions.
IMPORTANT: To ensure proper installation,
this procedure must be followed exactly.
For standpipe or laundry tub drain systems:
1. Check the drain hose to see that it is the
proper length.
2. Install the U-shaped hose form to end of
the drain hose to create a hook-shaped
end; as shown.
A B
23.5 - 35"
(59.7 - 88.9 cm)
AB
Floor Drain System (View D)
The floor drain system requires a siphon break
that may be purchased separately (see “Tools
and Parts”).
The siphon break must be a minimum of 28″
(71 cm) from the bottom of the washer. Addi-
tional hoses might be needed.
The minimum carry-away capacity can be no
less than 4.2 gal. (15.9 L) per minute.
A. Snap either end of the U-shaped hose form to the
drain hose at the point where the corrugation begins.
B. Bend drain hose over the form and snap into place.
To Next Page
