Whirlpool LSA 1100 - Power Error; Lid Open Error

d)
Ensure that PCB is working fine.
e)
For manual water fill, ensure the amount of water filled should be less than
the level of balance ring

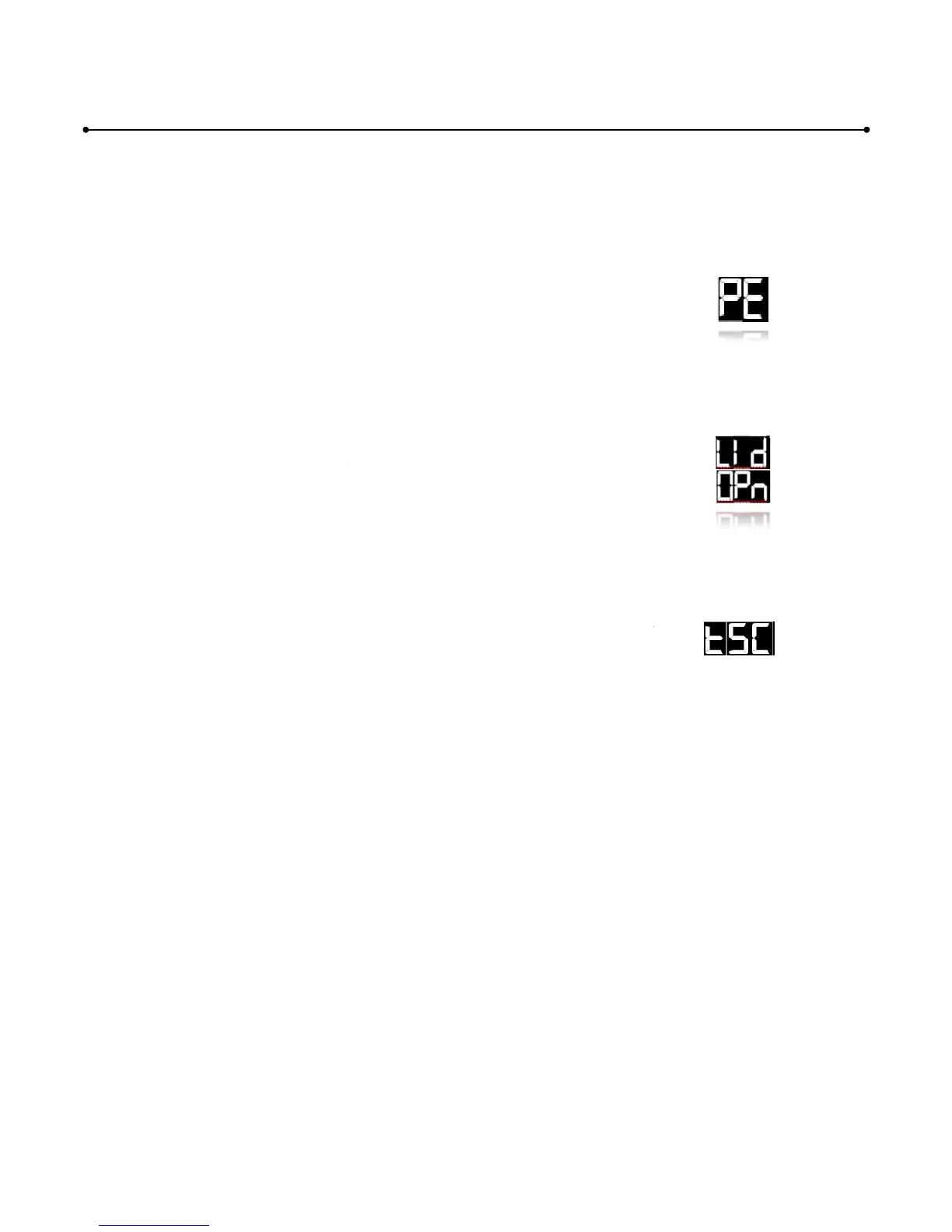

RID#2.7. POWER ERROR
1)
When the input voltage at consumer end falls below 170V & above
270V then “PE”
error will be detected.
2) Need to check:
a)
Ensure that the Input voltage is above 170V & below 270V
b)
Check for PCB operation.
RID#2.8. LID OPEN ERROR
1)
If there is no feedback from Lid Switch, then “Lid Op
popped till getting the feedback.
2) Need to check:
a)
Ensure the Lid is firmly closed
b)
Check for Lid switch operation & its connections
c)
Check for PCB operation.
RID#2.9. tSC ERROR
1) If
Keys are shorted, then ‘tSC’ error will be popped & this error is
applicable only in
Test Routines
2) Need to check:
a)
Ensure that there is a required interval given while invoking Test Routines.
b) Check for
Keys shorted in User Interface
ERROR DISPLAY AND
DIAGNOSIS
Ensure that PCB is working fine.
For manual water fill, ensure the amount of water filled should be less than
the level of balance ring
When the input voltage at consumer end falls below 170V & above
error will be detected.
Ensure that the Input voltage is above 170V & below 270V
Check for PCB operation.
If there is no feedback from Lid Switch, then “Lid Op
e
n” error will be
popped till getting the feedback.
Ensure the Lid is firmly closed
Check for Lid switch operation & its connections
Check for PCB operation.
Keys are shorted, then ‘tSC’ error will be popped & this error is
Test Routines
.
Ensure that there is a required interval given while invoking Test Routines.
Keys shorted in User Interface
DIAGNOSIS
SERVICE MANUAL
Page | 22
