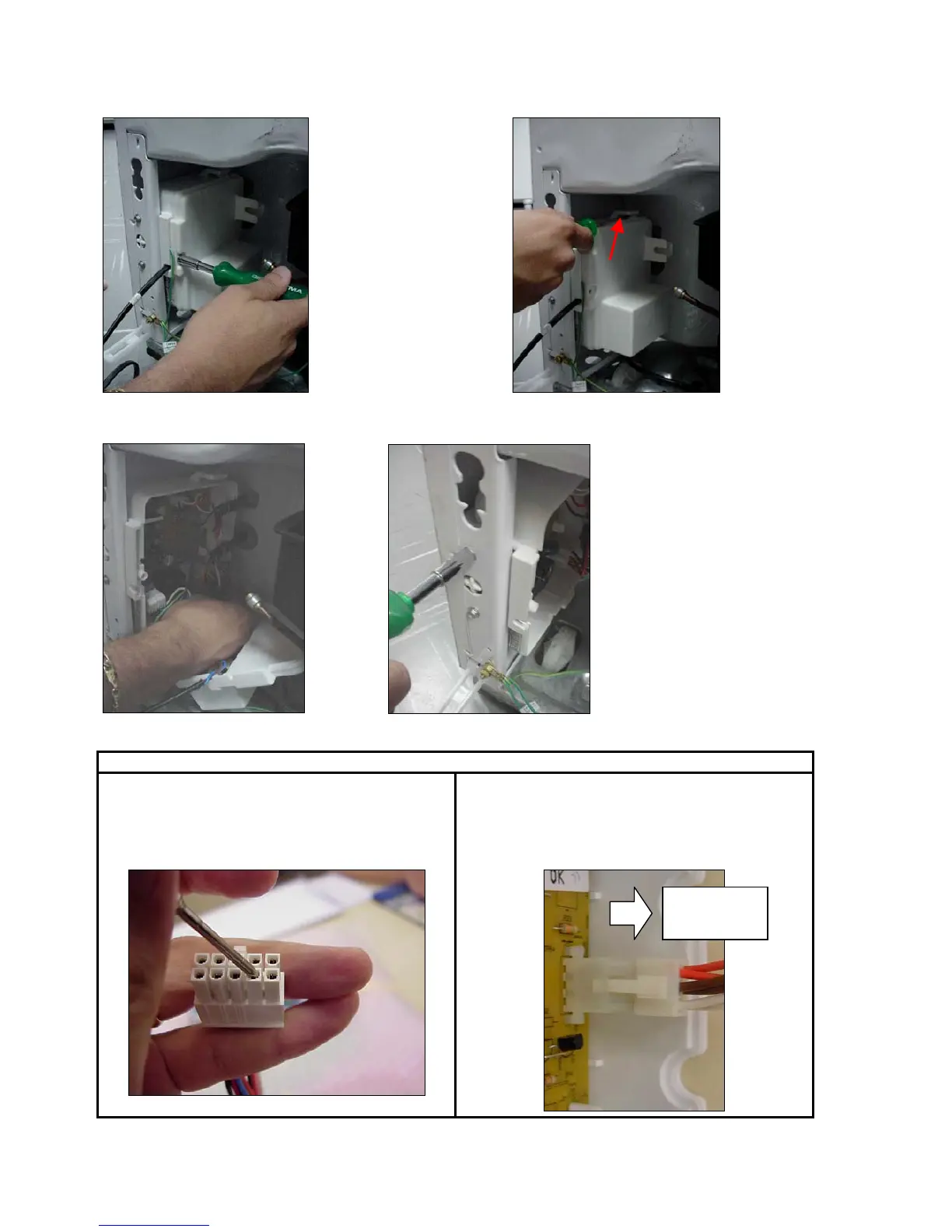

MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High 11
- Disassembly
1. Remove the cover fastening screws. 2. Release the cover tabs.
3. Release the Board connectors. 4. Loose all other screws and remove the Electronic Control.
IMPORTANT
# Be careful when using the Multimeter
measuring probes, as they may damage the
connector terminals.
# Be careful when removing the electronic board
connectors, as they are latched.
Remove them at right angles with no side
movements
Take away on
this direction
