MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High 18
WARNING
These Sensors (Freezer & Defrost) Are Compatible with Each Other, but
Are Not Compatible with the Sensors of the previous line.
NEVER replace these Sensors with the Sensor Kit used in the previous line.
Replacement

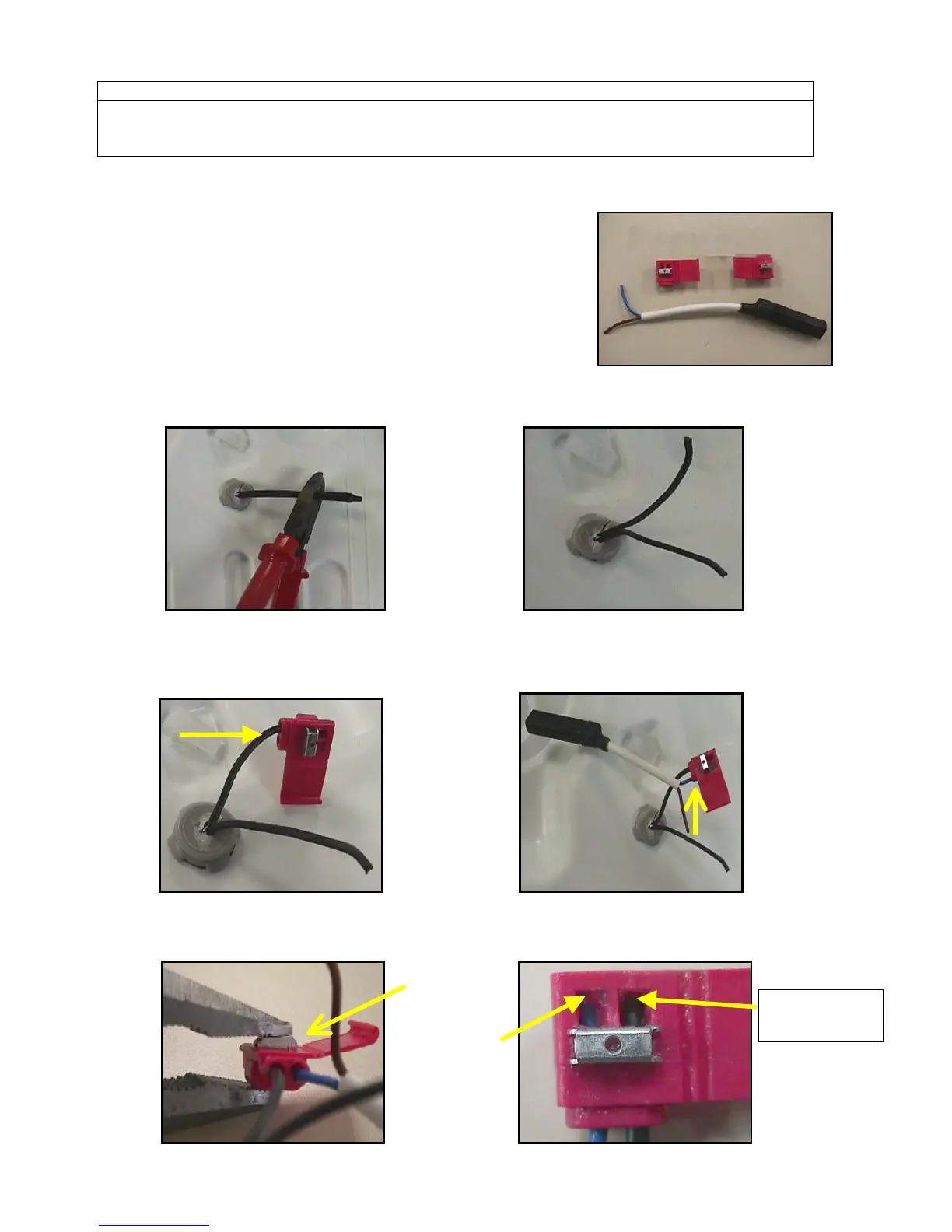

In the need of replacing one of the Temperature Sensors, use the
SENSOR KIT (code 326.013.997), which consist in; Temperature
Sensor (1) and connectors (2), as showed on the picture.
Field Provisions
1) Remove the defective Temperature Sensor. 2) Apart the wiring cables. Striping the wires is
not necessary
3) Now insert one of the wiring cable into the 4) Then insert one of the sensor wires into the
connector same connector
5) Using a pliers, press the connector blade. Internally, this blade will lock both wires doing the
electrical connection between them.
Wires touching the
connector bottom
