MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High 28
WARNING
Be careful when handling the Evaporator, due to it blades has sharp edges and can cut your hands.
Always wear protective gloves.

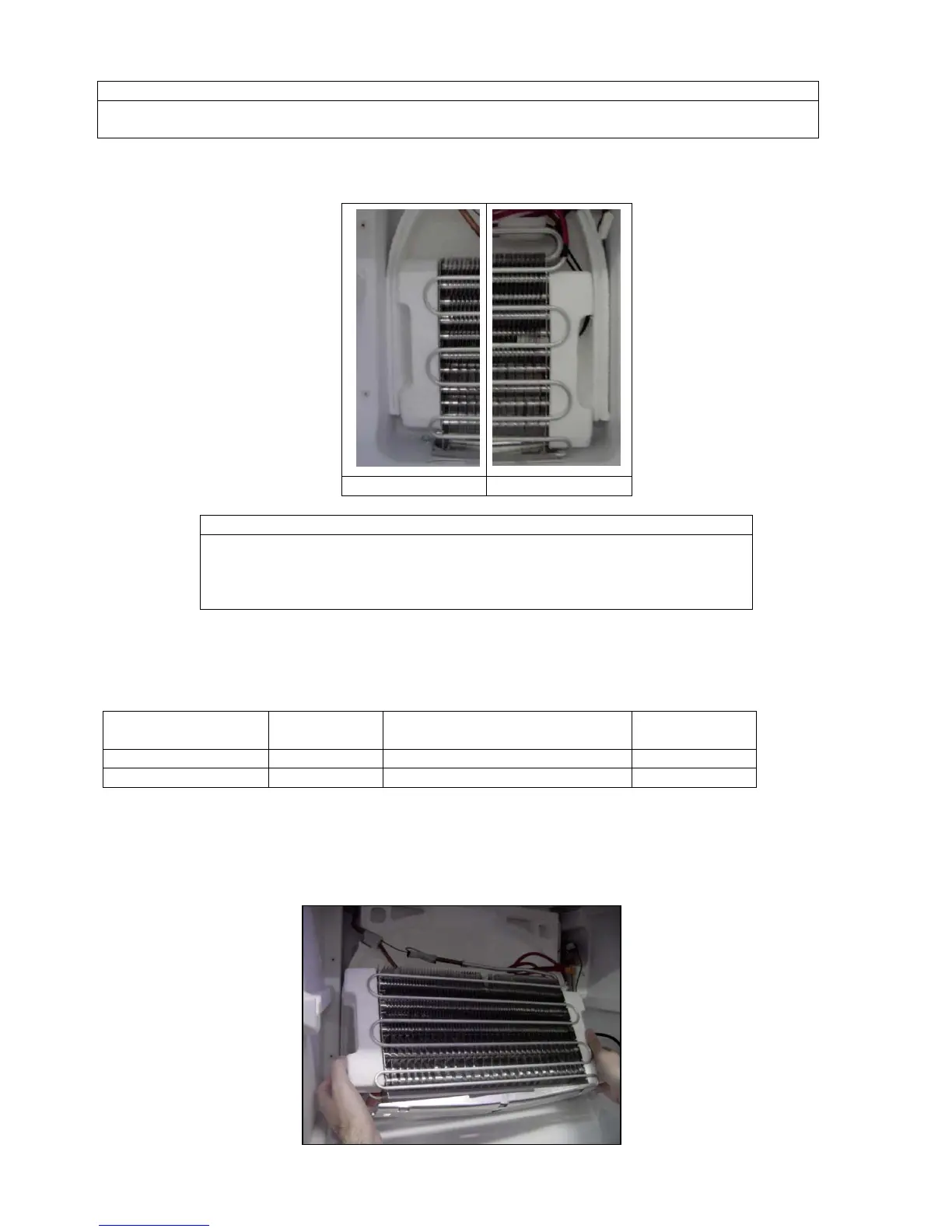

The sides of the Evaporator are provided with 2 EPS shims that will cause the whole of the return air to
pass through the Evaporator instead its sides.
Left Shim Right Shim
IMPORTANT
Those shims should not be removed from the product.
If they are missing, problems could occur such as low refrigeration or frost
formation in the Freezer compartment.
In the event of Evaporator replacement, proceed as follows:
a) Order a new Evaporator assy and 2 Lokring connectors, according to:
Description Part Number Models Application R-600a
Fluid Load (g)
Lokring Connection 326.008.340 ARC8140IX --
Evaporator Assembly 326.046.948 ARC8140IX 58g
Note: The Evaporator assy include chute and defrost heater which should be replaced simultaneously due to the
possibility of defrost heater damage while removing from the old evaporator , causing electrical escape.
b) Remove the damaged Evaporator by releasing the Defrost Sensor, Heater connectors, EPS shims
and then the Lokring connectors;
To Next Page
