3-14

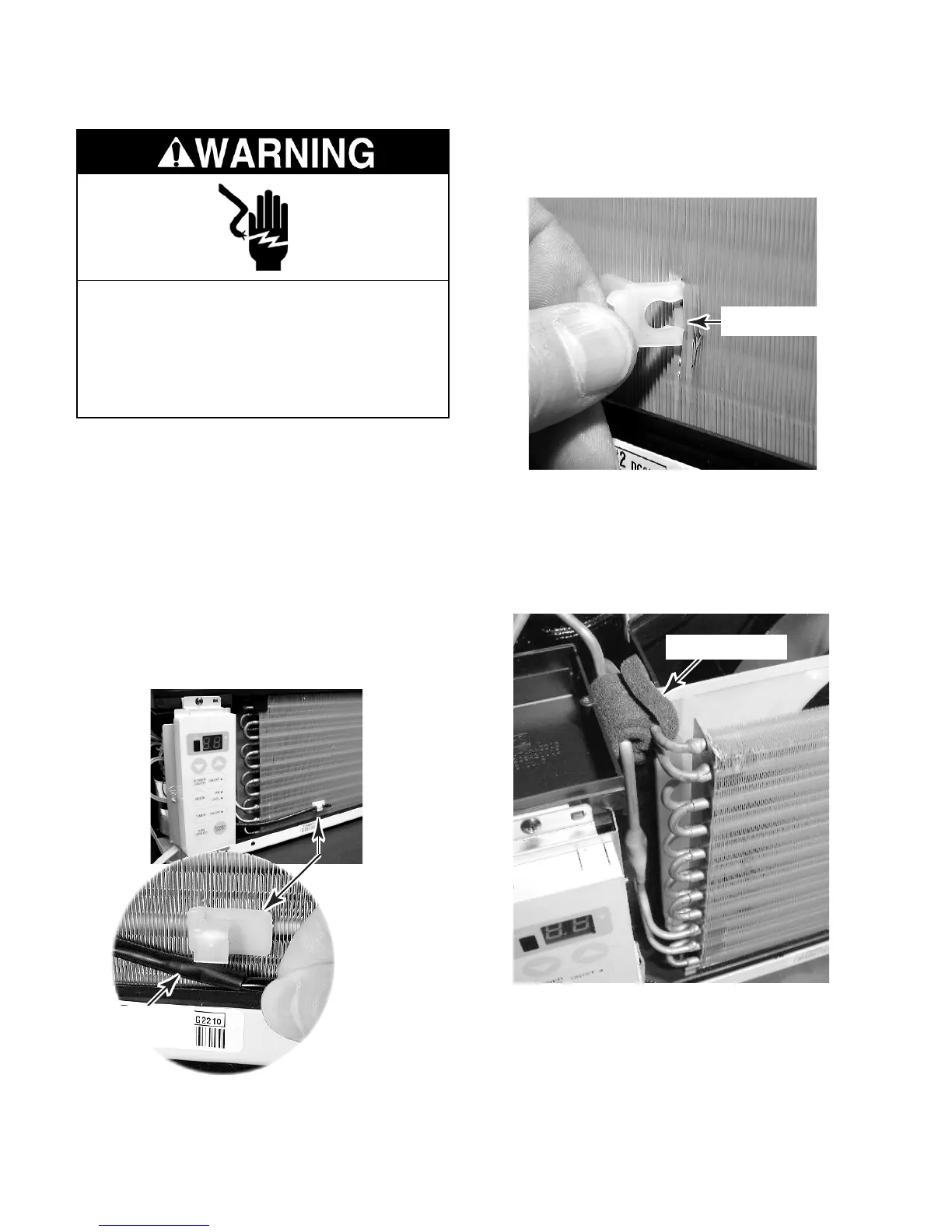

REMOVING THE EVAPORATOR
1. Unplug the air conditioner or disconnect
the power.
2. Remove the air conditioner from the win-
dow (see page 2-2 for the procedure).
3. Remove the grille assembly and cabinet
from the air conditioner (see pages 3-2
and 3-3 for the procedures).
4. Remove the thermistor from the mounting
clip.
6. Braze on an access valve and discharge
the sealed system refrigerant into a refrig-
erant recovery bag.
7. Remove the foam insulation from around
the evaporator tubing.
5. Pull the mounting clip off the evaporator
tubing and reinstall it on the new evapora-
tor at the same location.
Remove Clip
Foam Insulation
Unclip
Thermistor
NOTE: Sharp edges may be present.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
To Next Page
