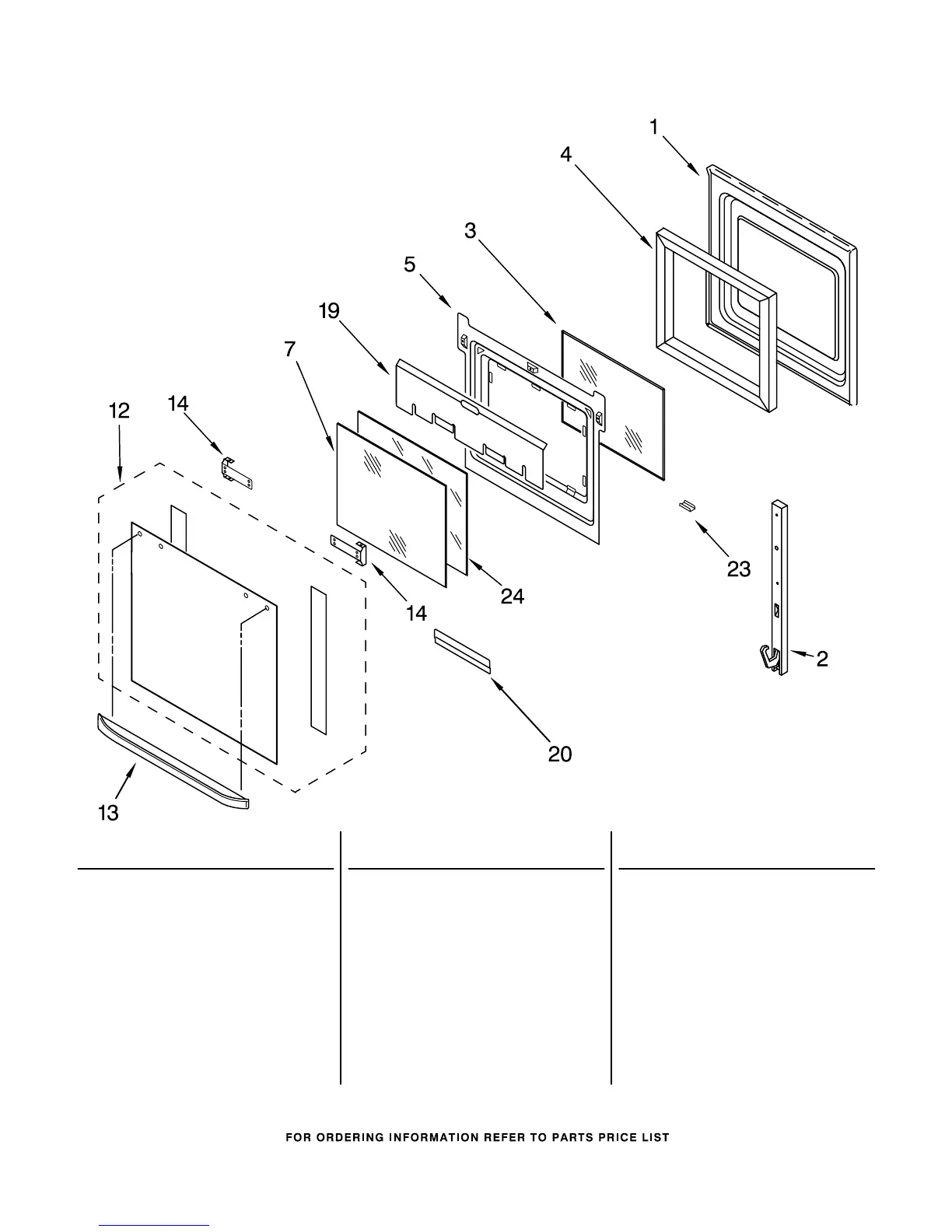

UPPER OVEN DOOR PARTS
6
8185829
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
For Models:RBD245PDB12, RBD245PDQ12, RBD245PDT12,RBD245PDS12
(Black) (Designer White) (Biscuit) (Stainless Steel)
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4455616 Liner, Door
2 Hinge, Door
8300567 Right Side
8300568 Left Side
4449743 Screw
3 4449247 Glass, Inner
4 4451720 Insulation, Door
5 8300776 Retainer, Glass
4449809 Screw
7 4449251 Glass, Inner
12 Door Glass, Assy
8300917 Black Model
8300916 White Model
8300913 Biscuit Model
8300997 S.Steel Model
13 Door Handle
4448402 Black Model
4448403 White Model
8300512 Biscuit Model
14 4450813 Bracket, Handle
4451040 Screw
19 4450360 Shield, Heat
4449809 Screw
20 4451668 Retainer, Glass
4449809 Screw
23 Retainer, Clip
4450863 Black Model
4450864 White Model
24 4455255 Glass, Inner
To Next Page
