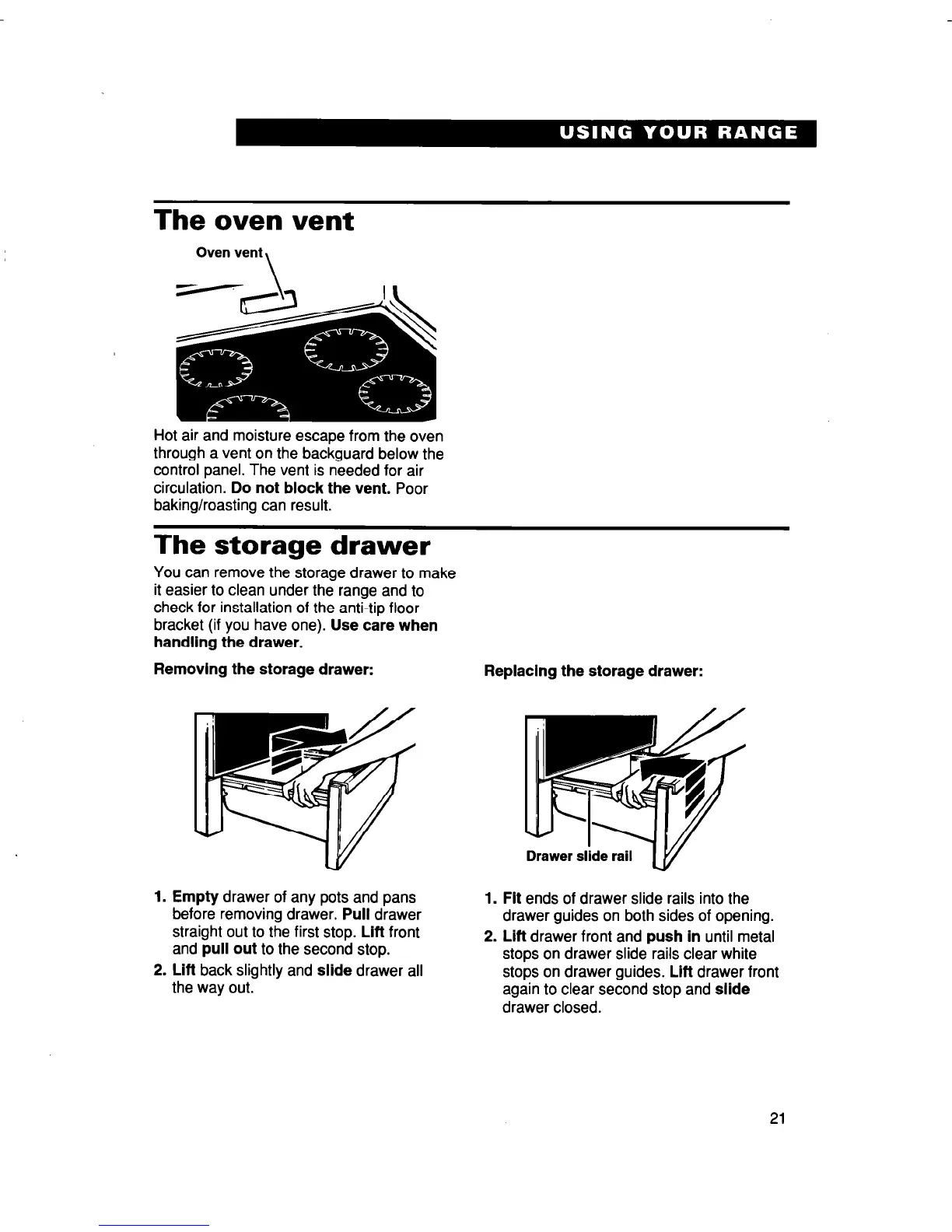

The oven vent
Oven vent
\
Hot air and moisture escape from the oven
through a vent on the backguard below the
control panel. The vent is needed for air
circulation. Do not block the vent. Poor
baking/roasting can result.
The storage drawer
You can remove the storage drawer to make
it easier to clean under the range and to
check for installation of the anti-tip floor
bracket (if you have one). Use care when
handling the drawer.
Removing the storage drawer:
Replacing the storage drawer:
Drawer slide rail
w
1. Empty drawer of any pots and pans
before removing drawer. Pull drawer
straight out to the first stop. Lift front
and pull out to the second stop.
2. Lift back slightly and slide drawer all
the way out.
1. Fit ends of drawer slide rails into the
drawer guides on both sides of opening.
2. Lift drawer front and push in until metal
stops on drawer slide rails clear white
stops on drawer guides. Lift drawer front
again to clear second stop and slide
drawer closed.
21
