Whirlpool UXD8636DYS - Cabinet and Countertop Cutout Specifications; Countertop Cutout Dimensions

7

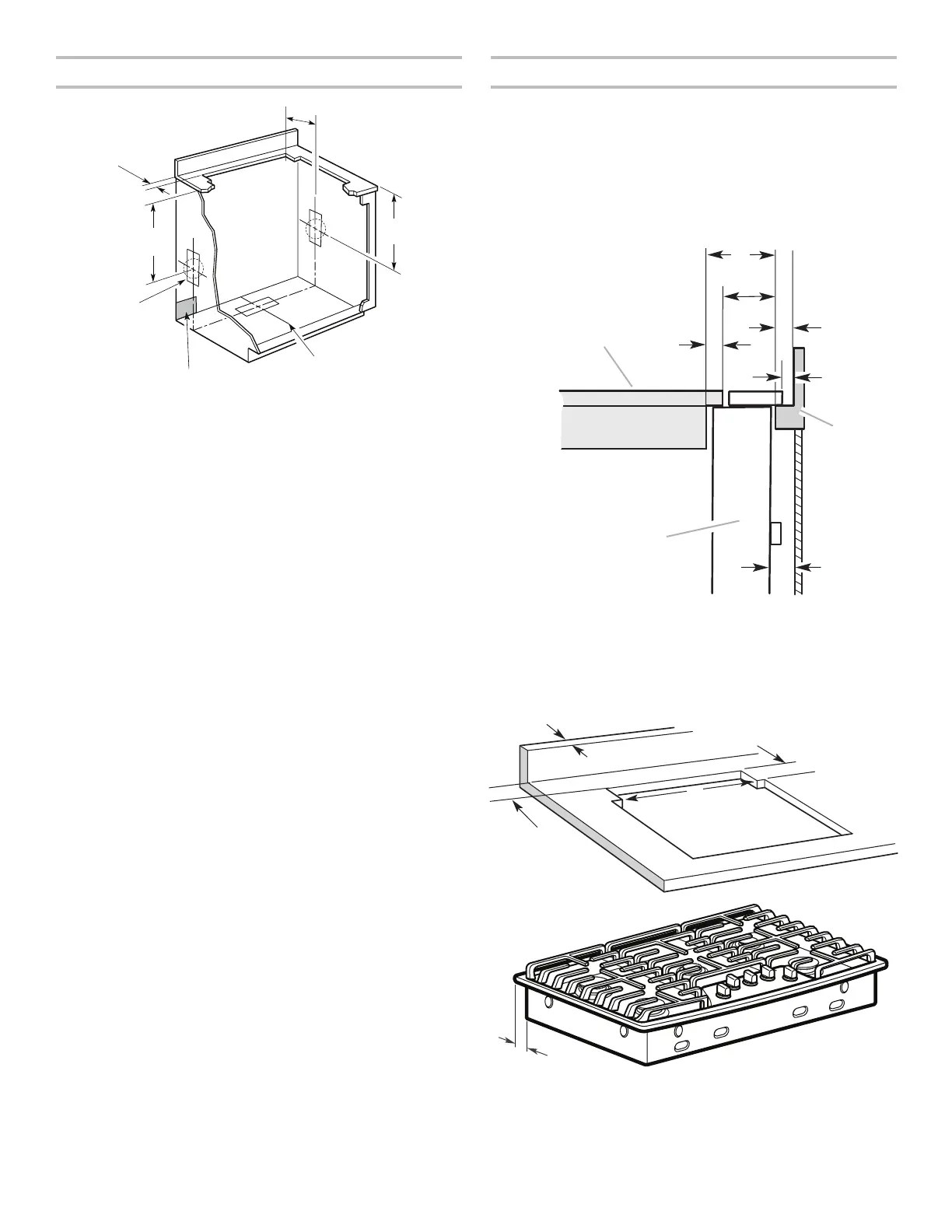

Cabinet Dimensions
NOTES:
■ See cooktop manufacturer’s instructions for cooktop cutout
depth and width.
■ Use dimensions for vent system cutout location that applies
to your installation.
■ Interior-mounted blower systems connect with 3
1
/
4
" x 10"
(8.3 cm x 25.4 cm) rectangular or 6" (15.2 cm) round vent
system. The cutout locations for this vent system will depend
on your specic installation.
Countertop Cutout Dimensions
IMPORTANT: Countertops with a bull-nosed front edge are not
recommended for these installations.
Some models require a countertop deeper than 25" (63.5 cm);
see the following illustrations.
To avoid mistakes, it is recommended that the cooktop and vent
cutouts be drawn on the countertop before making any cutouts.
See the Installation Instructions that came with your cooktop
for complete cutout dimensions, location dimensions, and
installation details.
A
B
C
E
H
D
I
G
F
A. Downdraft vent
B. Cooktop
C. Measurement of cooktop rear
overhang
D. D = Measurement of cooktop rear
overhang (C) + 1
13
/
16
" (46.2 mm) (E)
E. 1
13
/
16
" (46.2 mm)
F. 1/2" (1.3 cm) minimum
G. 1/4" (6.4 mm) minimum
H. Countertop and backsplash
I. 1/2" (1.3 cm) minimum
E
A
B
C
D
A. 1/2" (1.3 cm) minimum to
backsplash or rear wall
B. 3/4" (2 cm) maximum
backsplash depth
C. 27
1
/
2
" (69.9 cm) on 30" (76.2 cm)
models
33
1
/
2
" (85.9 cm) on 36" (91.4 cm)
models
D. D = E + 1
13
/
16
" (4.6 cm)
E. Cooktop rear overhang
A = 1/2" (12.7 mm)
minimum
(54.1 cm)
Cutouts are
21⁵⁄₁₆"
(8.3 cm x 25.4 cm)
rectangular or 6"
for 3¹⁄₄" x 10"
vent system.
(15.2 cm) round
Centerline of cooktop cutout
21⁵⁄₁₆"
(54.1 cm)
Locate power
supply junction
left-hand
box at lower
rear corner
of the cabinet.
10" (25.4 cm)
