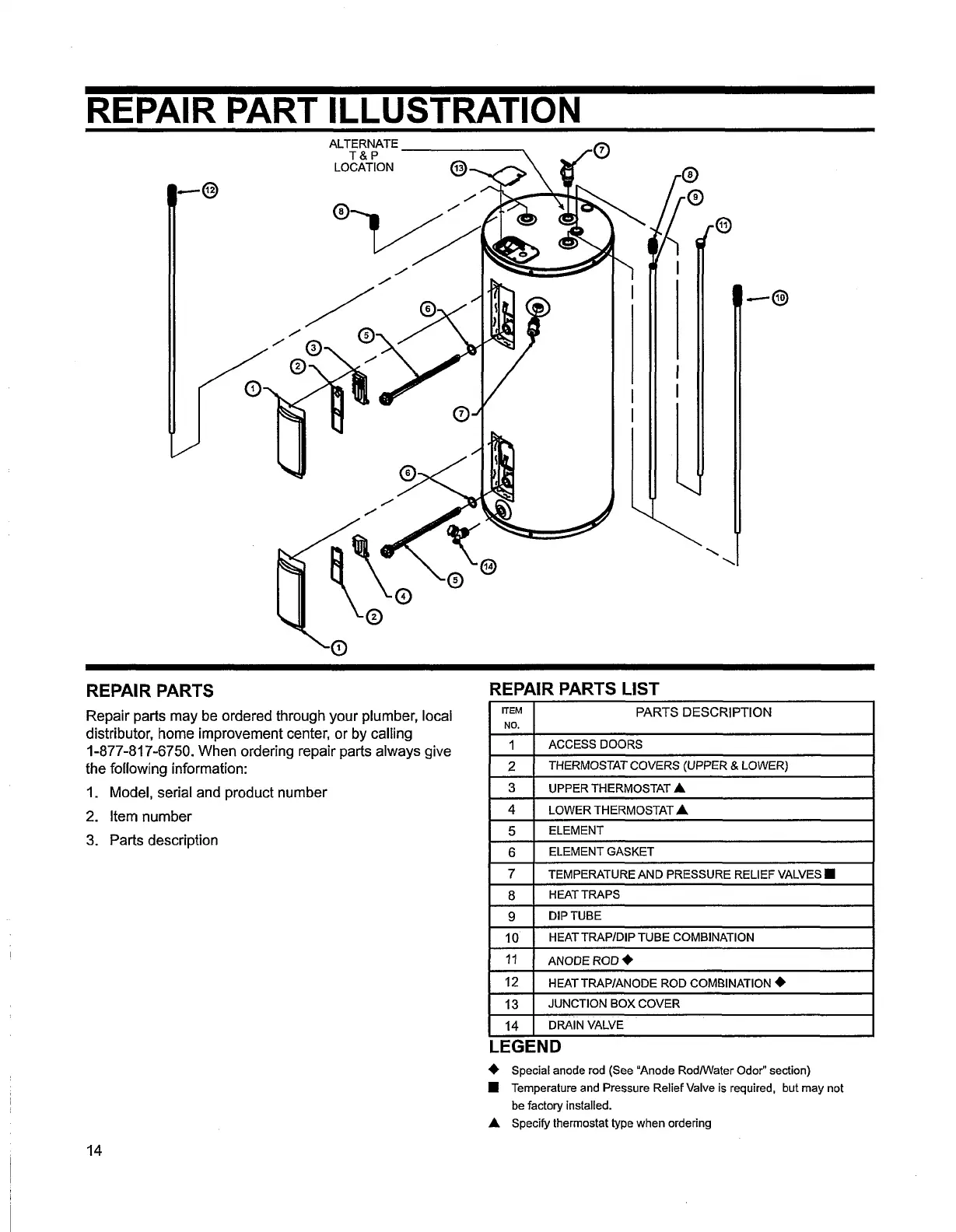

REPAIR PART ILLUSTRATION
ALTERNATE
T&P
LOCATION
.._-@
REPAIR PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center, or by calling
1-877-817-6750. When ordering repair parts always give
the following information:
1. Model, serial and product number
2. Item number
3. Parts description
REPAIR PARTS LIST
ITEM
PARTS DESCRIPTION
NO.
1
ACCESS DOORS
2
THERMOSTAT COVERS (UPPER & LOWER)
3
UPPER THERMOSTAT ¯
4
LOWER TH ERMOSTAT ¯
5
ELEMENT
6
ELEMENT GASKET
7
TEMPERATURE AND PRESSURE RELIEF VALVES ¯
8
HEAT TRAPS
9
DIP TUBE
10
HEAT TRAP/DIP TUBE COMBINATION
11
ANODE ROD ¯
12
HEATTRAP/ANODE ROD COMBINATION ¯
13
JUNCTION BOX COVER
14
DRAIN VALVE
LEGEND
¯
Special anode rod (See "Anode Rod/VVater Odor" section)
¯
Temperature and Pressure Relief Valve is required, but may not
be factory installed.
¯
Specify thermostat type when ordering
14
