French Doors
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

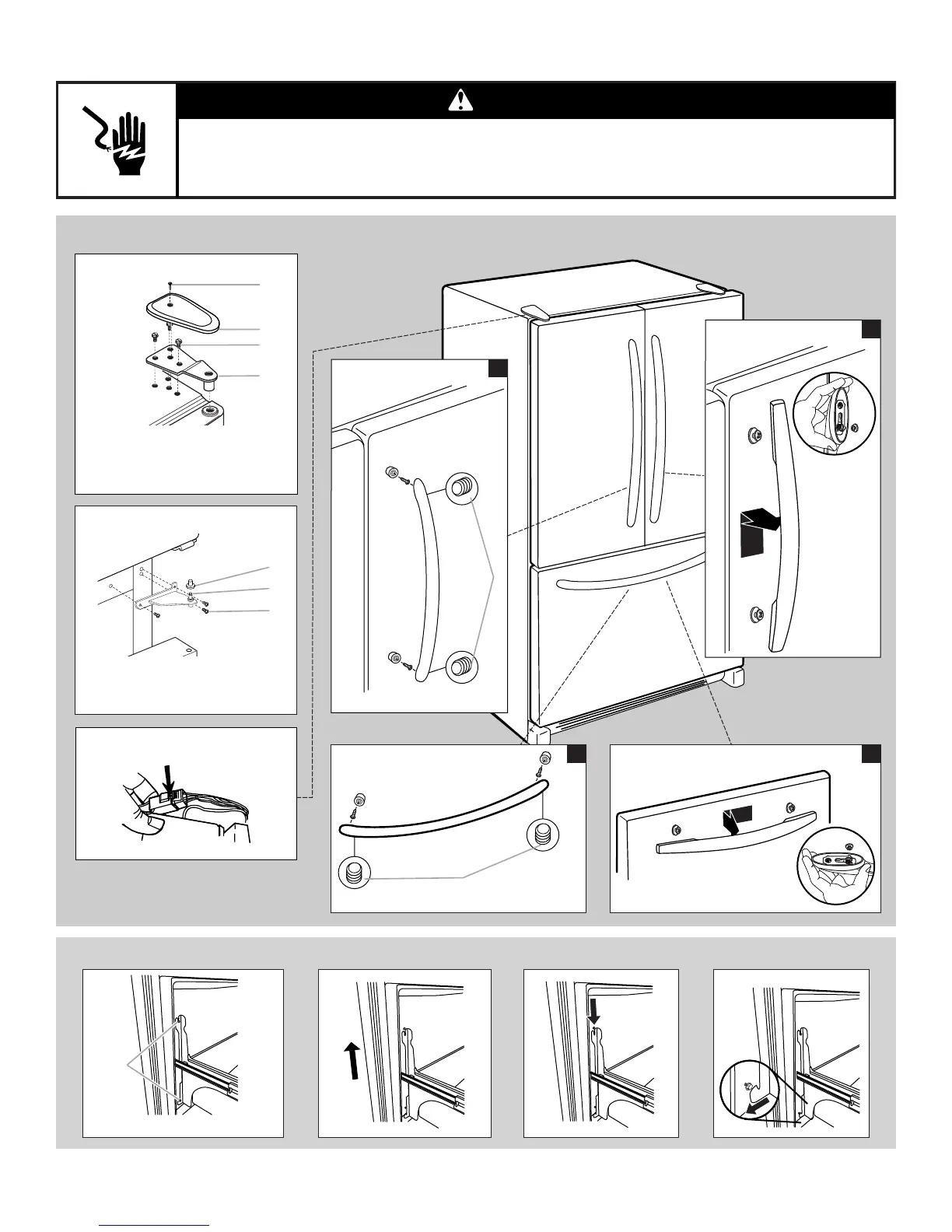

Door Removal and Replacement
A. ³⁄₃₂" or ¹⁄₈" Setscrew
A
A
Style 1 - Handle
Style 1 - Handle
Style 2 - Handle
Style 2 - Handle
1
1
22
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex Head Hinge Screws
D. Top Hinge
B
A
C
D
A. Hinge Pin Cover
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
Wiring Plug
A
B
C
Drawer Front Removal
A. Loosen 4 Door Bracket Screws
A
Drawer Front Replacement
A. ³⁄₃₂" or ¹⁄₈" Setscrew
