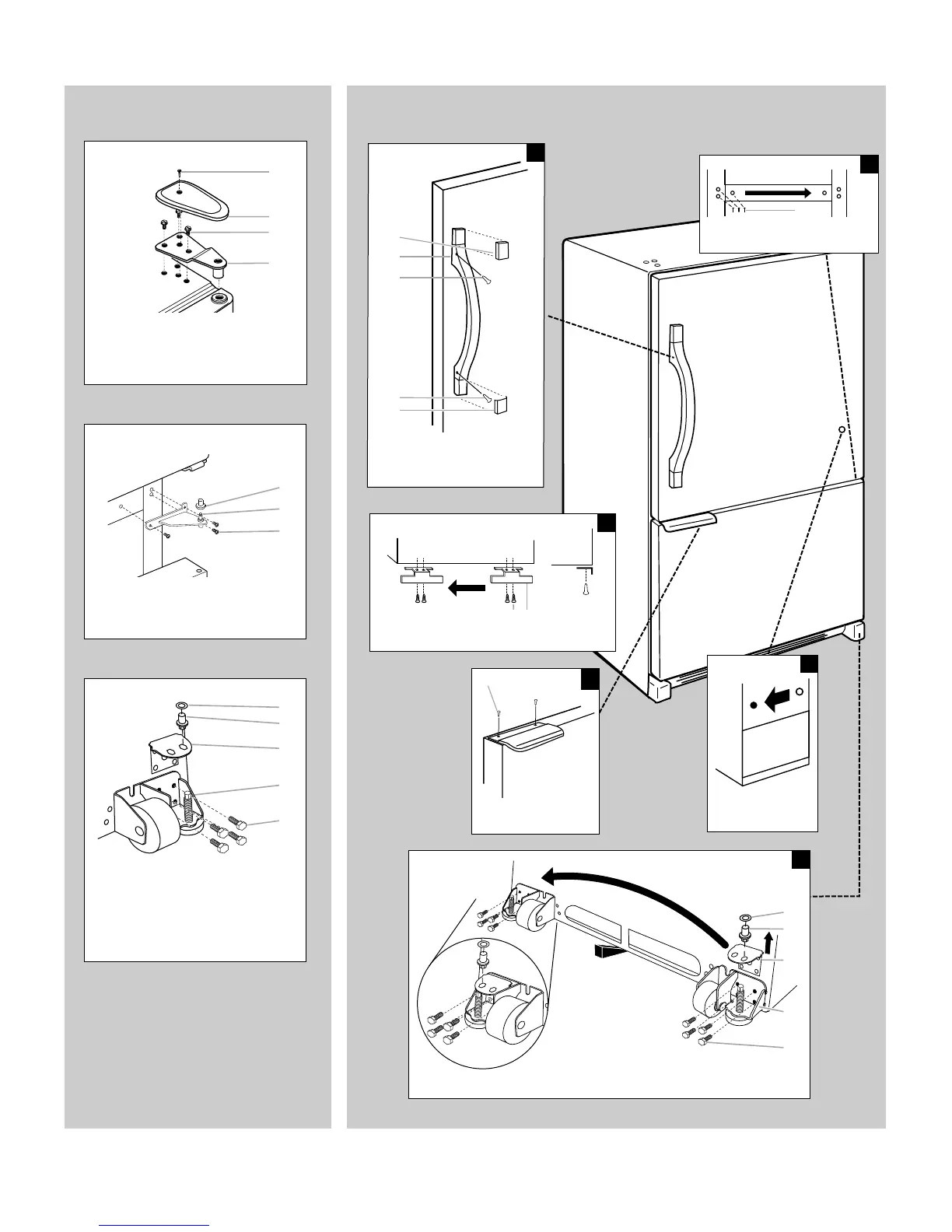

Whirlpool W10366205A - Door Swing Reversal (optional)

8
Standard Door - Freezer Door
Door Removal &
Replacement
B. Bottom Hinge
A. Hinge Pin Shim
C. Hinge Plate
D. Roller Bracket
E.
³⁄₈" Hex-Head Hinge Screws
A
B
C
D
E
Bottom Hinge
Door Swing Reversal (optional)
Top Hinge
A. Hinge Pin Cover
C. Hinge Screws
B. Center Hinge
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex-Head Hinge Screws
D. Top Hinge
B
A
C
D
Center Hinge
A
B
C
A. Door Stop Screws
B. Door Stop
3
Side View
Front View
A
B
1
1
A
A. ⁵⁄₁₆ " Hex-Head Hinge Screws
5
Door Handle
Seal Screw
Front
4
B. Refrigerator Door Handle
C. Flat-Head Handle Screws
A. Handle Trim
2
A. Flat-Head Handle
Screws
A
B
C
A
A
C
6
A
B
C
D
E
B. Bottom Hinge
A. Hinge Pin Shim
C. Hinge Plate
D. Roller Bracket
E.
³⁄₈ " Hex-Head Hinge Screws
