This document is only intended for qualified technicians who are aware of the respective safety regulations.
Revised on 07/01/2003 Subject to modification
Document No. WOI/WM/2003/001
AUTOSPARKLE - FEATURES :
? Spin Basket - P.P. Material
? Easy spin basket removal is possible
? Hose less bleach inlet system
? Single Pressure switch hose.
? LID switch control for Agitate/Spin operations.
(8 Bit controller)
? Tub ring mounting with out screws

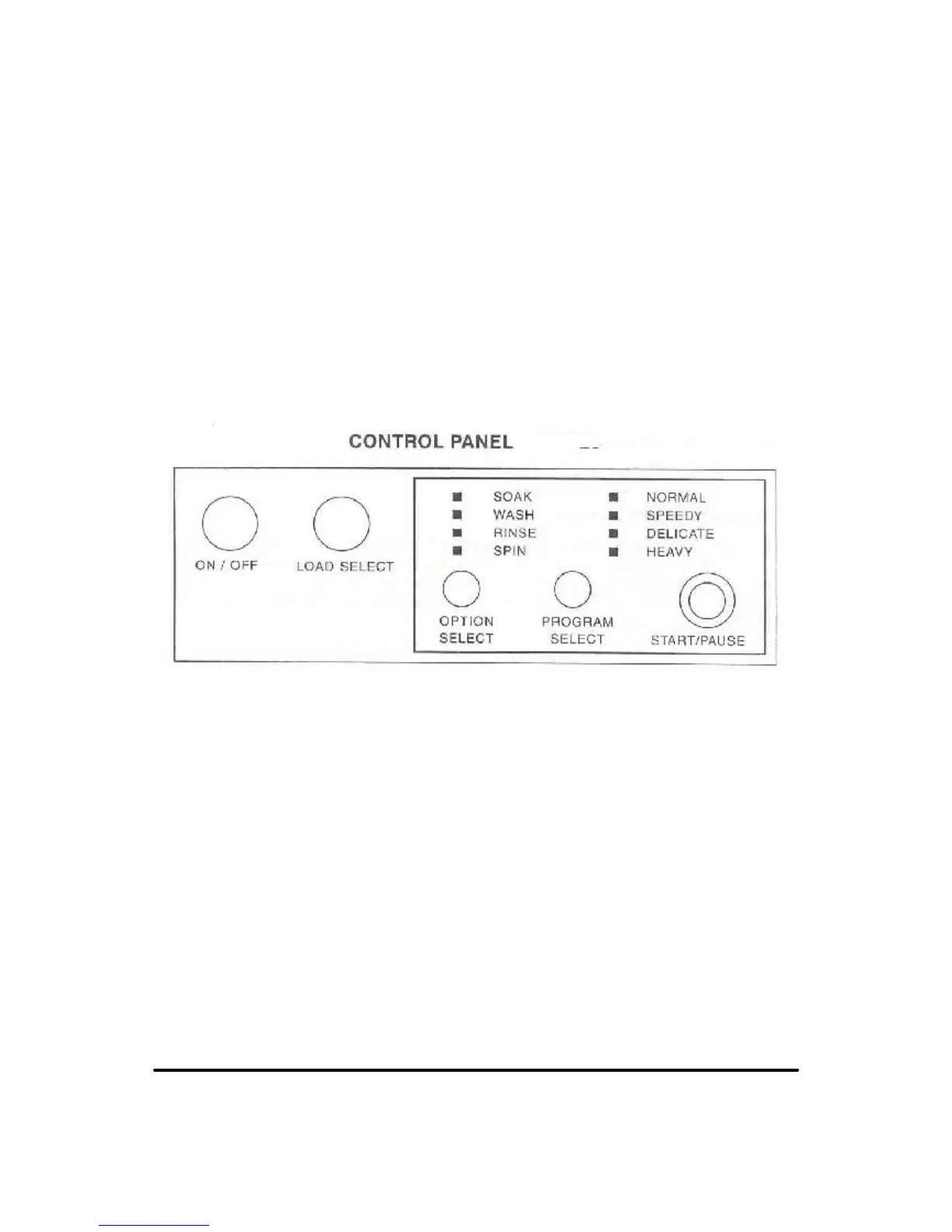

A LOOK AT THE CONTROL PANEL...
The following are the knobs/switches available at the panel
1 Power ON/OFF Switch
2. Water level selector
3. Course Select
4. Program Select
5. Start/Pause Button
In addition to the above, 2 sets of 4 each LED indications are also provided to indicate the status of operations. Please refer
the annexure for schematic view of the Panel. POWER ON/OFF SWITCH
