Field Provisions

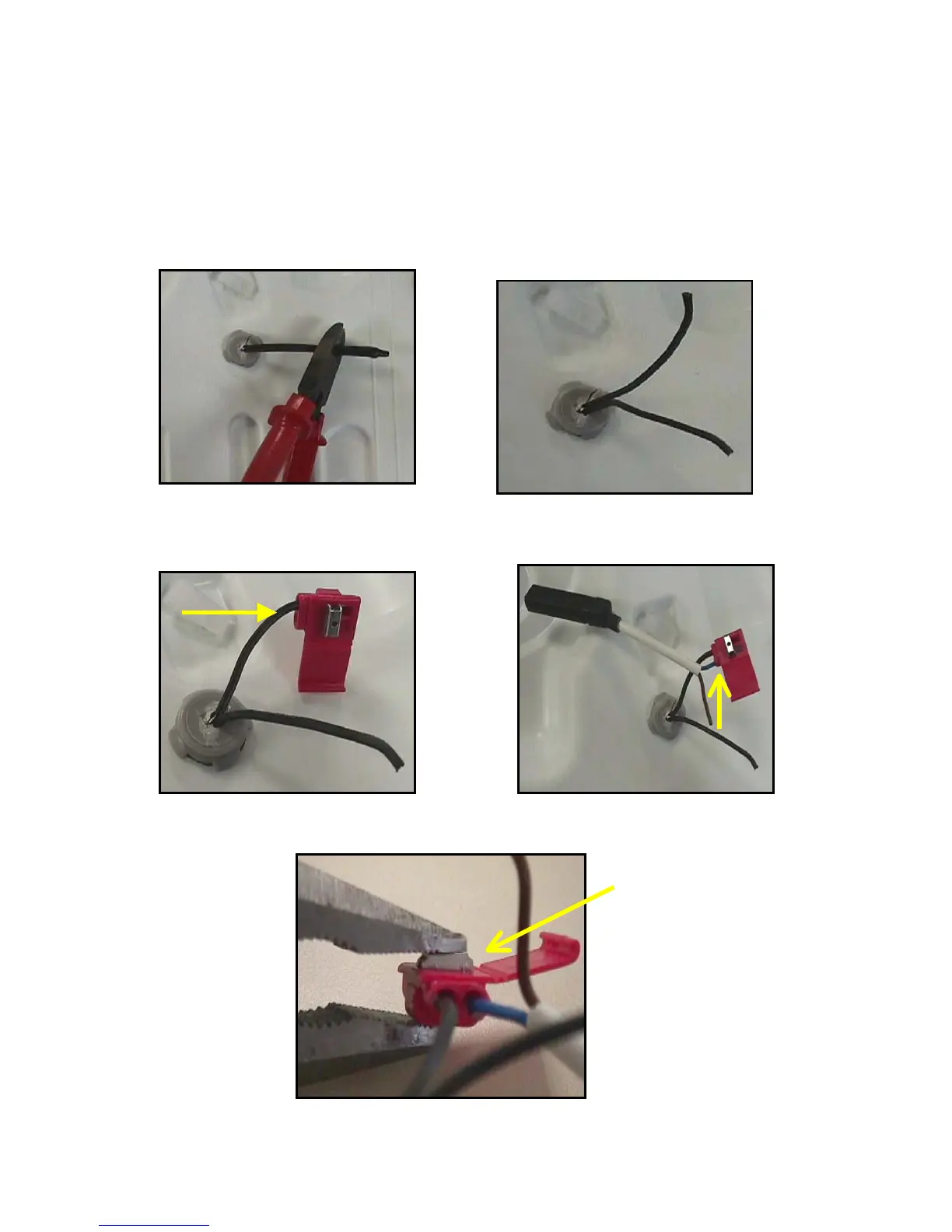

1) Remove the defective Temperature Sensor. 2) Apart the cabinet wires. Striping the wires is
not necessary
3) Now insert one of the cabinet wires into the 4) Then insert one of the sensor wires into the
connector. same connector.
5) Using a pliers press, the connector blade, locking both wires. The Connector has an internal metal
blade that joints both wires at the moment of locking.
To Next Page
