Whirlpool WBM46LS - Technical Specifications; Functional Characteristics

MSEX0025_rev01
3
The third digit indicates the manufacturing year of the product:
8 – 1998 1 – 2001 4 – 2004 7 – 2007
9 – 1999 2 – 2002 5 – 2005 8 – 2008
0 – 2000 3 – 2003 6 – 2006 9 – 2009
The following six digits indicate the product manufacturing sequential:
Example: 000001, 000002, ..
2 – TECHNICAL SPECIFICATIONS :
Characteristics MODEL WRM34, WBM35 WRM38, WBM39 WRM44, WBM46
VOLTS (V)
220/240 220/240 220/240
FREQUENCY (Hz)
50 50 50
CURRENT ( A )
0,7 0,7 0,7
POWER ( W )
145 145 145
HEATER POWER ( W )
190 225 225
CIRCUIT BREAKER ( A )
10 10 10
POWER CONSUMPTION (Kwh/ year)
571 581 616
REFRIGERANT LOAD
90 95 100
COMPRESSOR MODEL
TPH1380YXC TPH1380YXC TPH1380YXC
(R-134A / TECUMSEH)
TP152JR TP152JR TP152JR
COMPRESSOR POWER (W) or (HP)
196 or 1/4 196 or 1/4 196 or 1/4
3 – FUNCTIONAL CHARACTERISTICS:

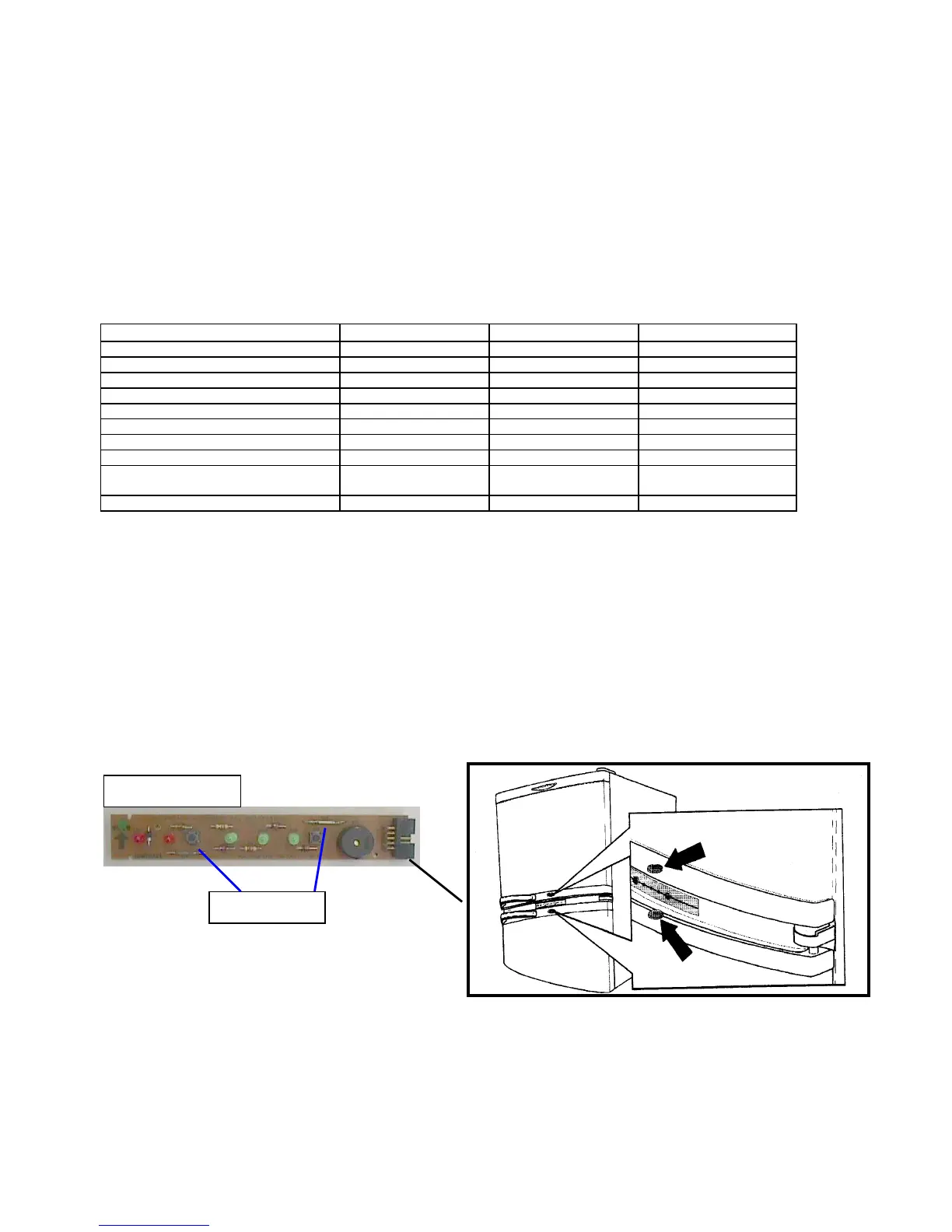

3.1 – Lamp activation system :
The WBM39 and WBM46 models are fitted with 15-watt Lamps, one in the Refrigerator Compartment and
the other in the Freezing Compartment (except for WRM34, WBM35 models). They are activated by means
of two magnets internally, located on the upper portion of the refrigerator door and on the lower portion of
the Freezer door (except for WRM34, WBM35 models), which connect a reed switch existing on the
Interface Board (see drawing below).
Interface Board
Reed Switch
Magnets
