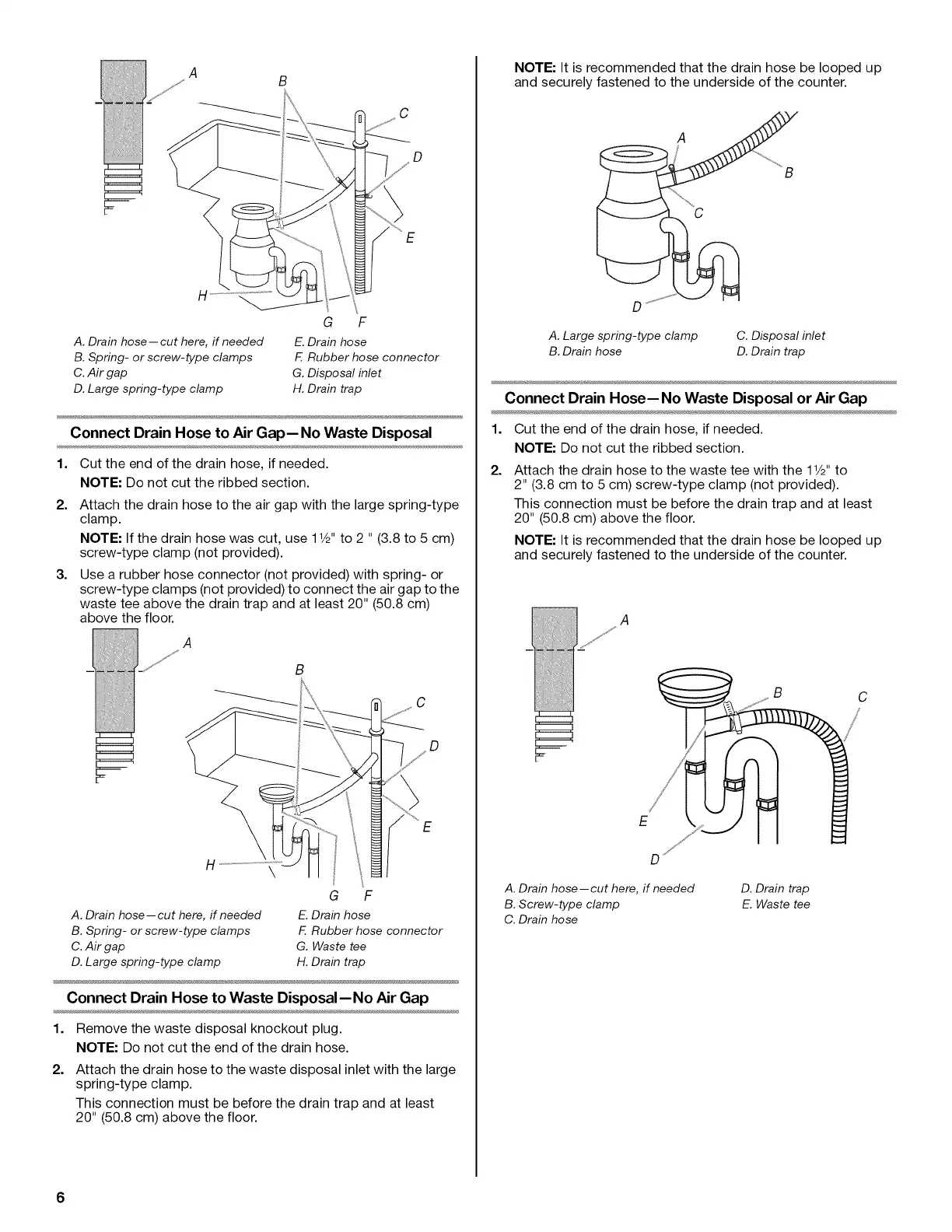

Whirlpool WDF550SAAW - Page 6

E. Drain hose
F. Rubber hose connector
G. Disposal inlet
H. Drain trap
A. Drain hose—cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
C. Disposal inlet
D. Drain trap
A. Large spring-type clamp
B. Drain hose
Connect Drain Hose— No Waste Disposal or Air Gap
Connect Drain Hose to Air Gap— No Waste Disposal
1. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
Attach the drain hose to the air gap with the large spring-type
clamp.
NOTE: If the drain hose was cut, use 114" to 2 " (3.8 to 5 cm)
screw-type clamp (not provided).
Use a rubber hose connector (not provided) with spring- or
screw-type clamps (not provided) to connect the air gap to the
waste tee above the drain trap and at least 20" (50.8 cm)
above the floor.
A
ra
wm
a
aw
H ne
G F
E. Drain hose
F. Rubber hose connector
G. Waste tee
H. Drain trap
A. Drain hose—cut here, if needed
B. Spring- or screw-type clamps
C. Air gap
D. Large spring-type clamp
Connect Drain Hose to Waste Disposal—No Air Gap
1. Remove the waste disposal knockout plug.
NOTE: Do not cut the end of the drain hose.
Attach the drain hose to the waste disposal inlet with the large
spring-type clamp.
This connection must be before the drain trap and at least
20" (50.8 cm) above the floor.
1. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
Attach the drain hose to the waste tee with the 112" to
2" (8.8 cm to 5 cm) screw-type clamp (not provided).
This connection must be before the drain trap and at least
20" (50.8 cm) above the floor.
NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
D. Drain trap
E. Waste tee
A. Drain hose—cut here, if needed
B. Screw-type clamp
C. Drain hose
