13

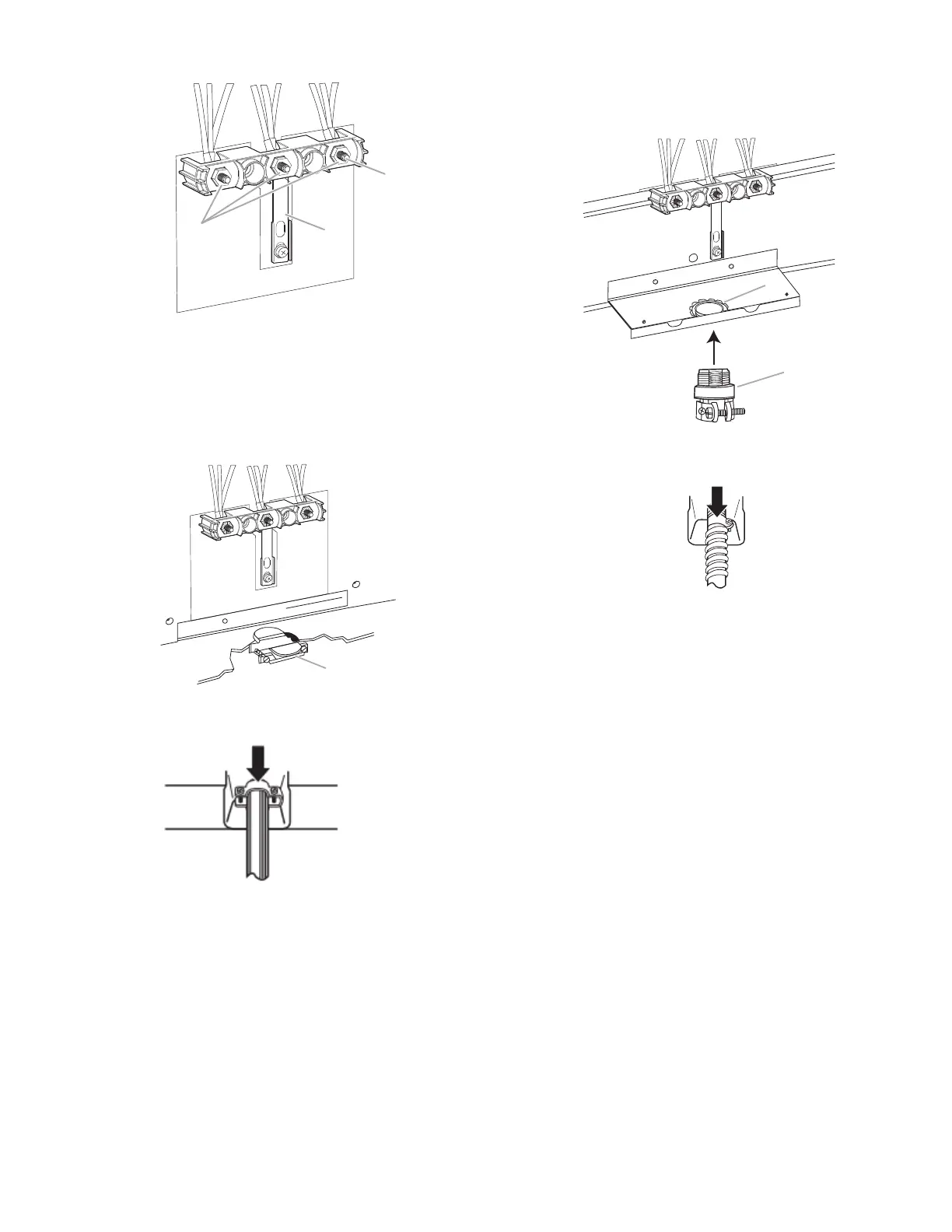

3. Remove the three 10-32 hex nuts from the terminal posts.
A. 10–32 hex nuts
B. Terminal Posts
C. Ground-link strap
4. Add strain relief.
Style 1: Power supply cord strain relief
� Remove the knockout for the power supply cord.
� Assemble a UL listed strain relief in the opening.
A. UL listed strain relief
� Tighten strain relief screw against the power supply cord.
Style 2: Direct wire strain relief
� Remove the knockout as needed for the flexible conduit
connection.
� Assemble a UL listed conduit connector in the opening.
A. Removable retaining nut
B. Conduit
� Tighten strain relief screw against the flexible conduit.
5. Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
