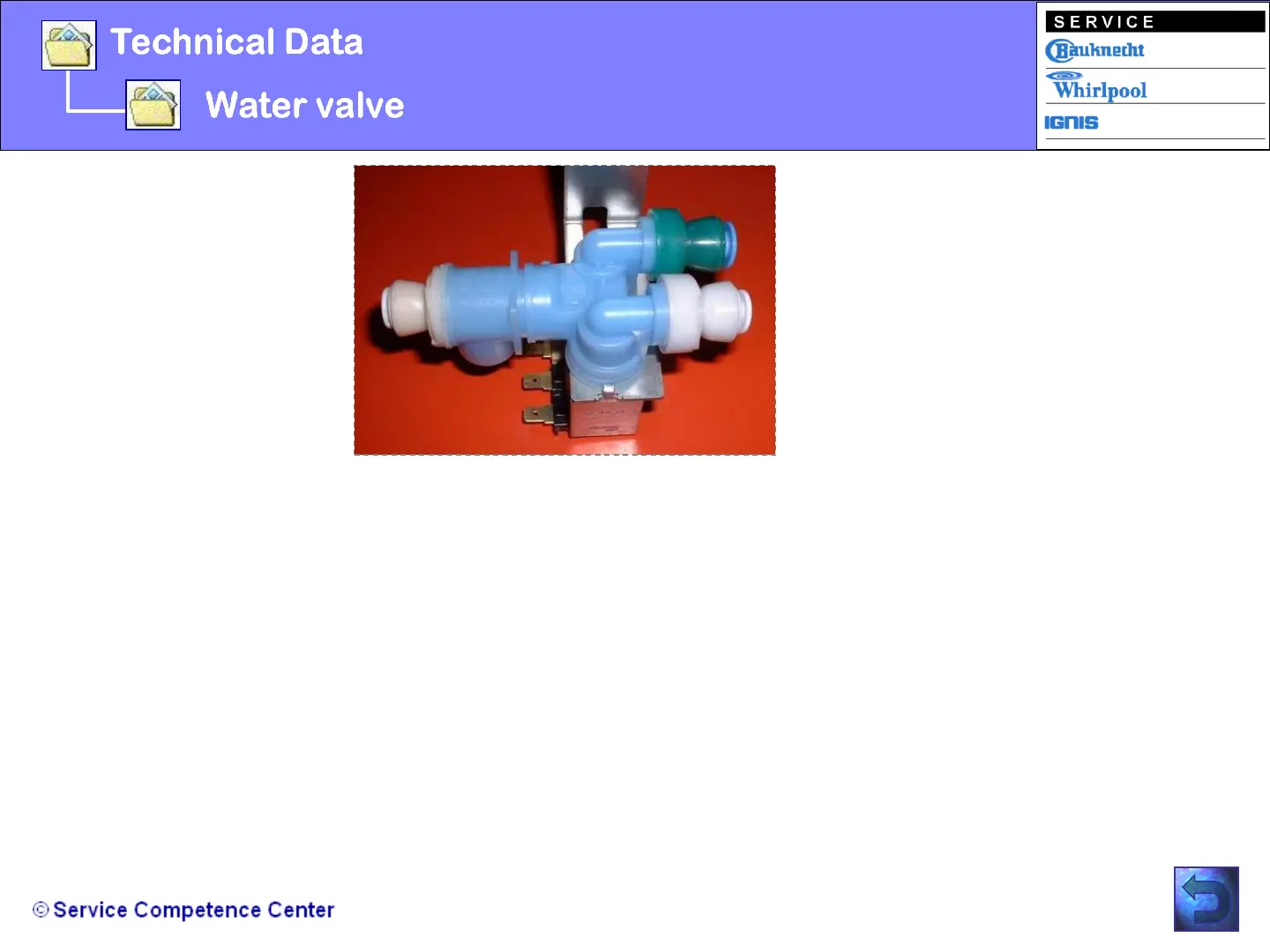

Water valve
Supply voltage ( nominal ) : 220 V AC; 50Hz
Power dissipation for each coil : 20 W
Opening voltage : 190 V; 50Hz (at 862 Kpa, 125 psi)
Water pressure range : 1,38 - 8,27 bar
Flow rate outlet ice - maker : 65cc / 7.5 sec.
Flow rate outlet water dispenser : 237cc / 7.5 sec.
Technical Data
