Functional characteristics

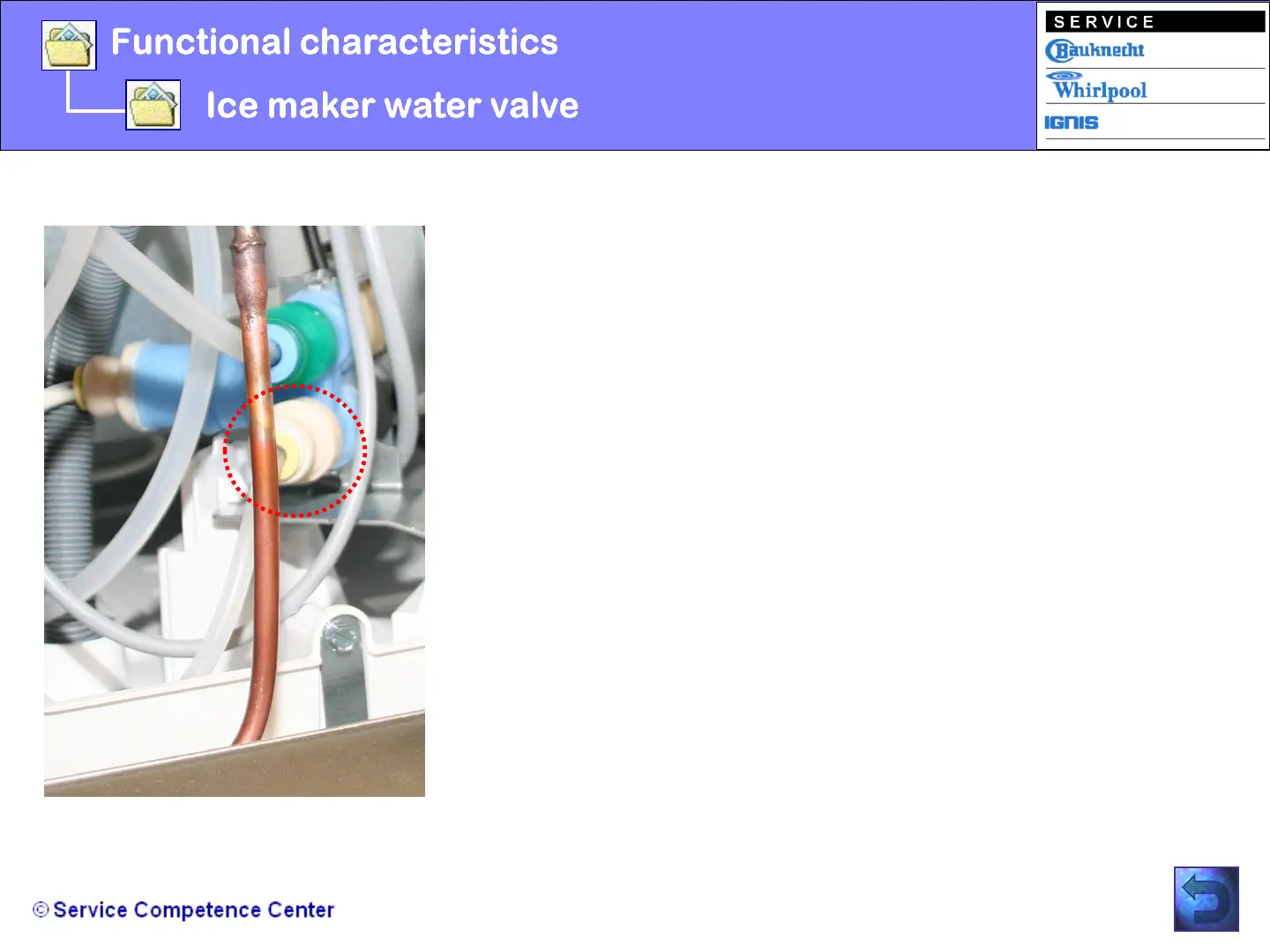

Ice maker water valve
The icemaker water valve will be automatically controlled and
driven by the icemaker system itself (current Ice-Maker) or by the
control board (Ice-Maker Sankyo).
The control will monitor the usage of the valve then calculate and
record the total volume of water flowed through the valve during
the opening periods.
The flow rate for the icemaker water valve is:
1,13 liters per minute
(140cc per 7.5 seconds +11cc 17cc)
