FEATURE DESCRIPTION
4
FEATURE DESCRIPTION / OPERATIONS
5
15. Bracket Mount – windshield bracket attachment.
16. Microphone – Allows audio recordings.
17. Reset Button – Using a small pin, push in to reset
the device.
18. Status LED – Blue = power on, Red = charging.
Operations

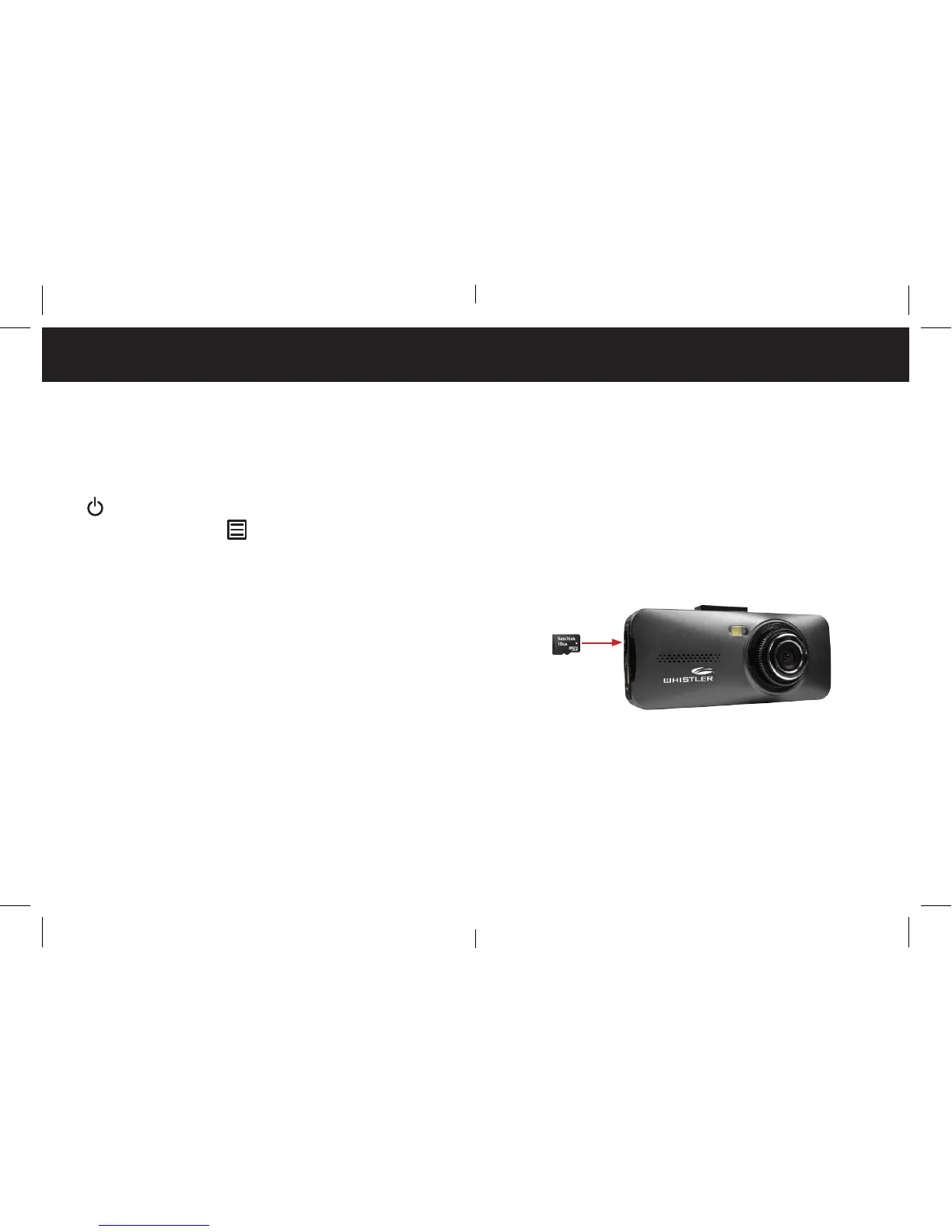

Inserting a microSD Card
Before initial use, insert a microSD card. (Suggest at least a
4GB card High Capacity, up to 32GB)
Charging the Unit
Fully charge DVR for initial use by:
• 12 volt Car charger
• PC USB port
The status LED is red during charging.
NOTE: Turn DVR o before inserting or removing the
microSD card.
Button and Function
1. Camera Lens – 120 wide-angle lens.
2. LED Light - Provides light for night recordings.
3. Speaker – Provides audio for playback and device tones.
4. Power Button – Press to power on/o. When on, press
to turn on/o the LED light.
5. MENU Button – Press button to display menu settings.
6. Mode Button - Press and hold to switch modes: Video,
Camera, Play back.
7. UP Button – Press UP to zoom in. In Menu allows
scrolling of menu items.
8. OK/Record Button – Press and hold to start recording.
Press again to stop. In menu, selects highlighted items.
9. Down/Mute Button - Press DOWN to zoom out. In
Menu, allows scrolling of menu items. When zoomed
out, mutes audio.
10. LCD Display – View photo and video.
11. MicroSD Card Slot – Slot for memory card.
12. HDMI Jack – Provides connection to a HDMI monitor.
13. USB Jack – Allows PC interface to access microSD
card, PC camera and charge the battery.
14. AV Output Jack - Provides Audio and Video output to
an external monitor.
