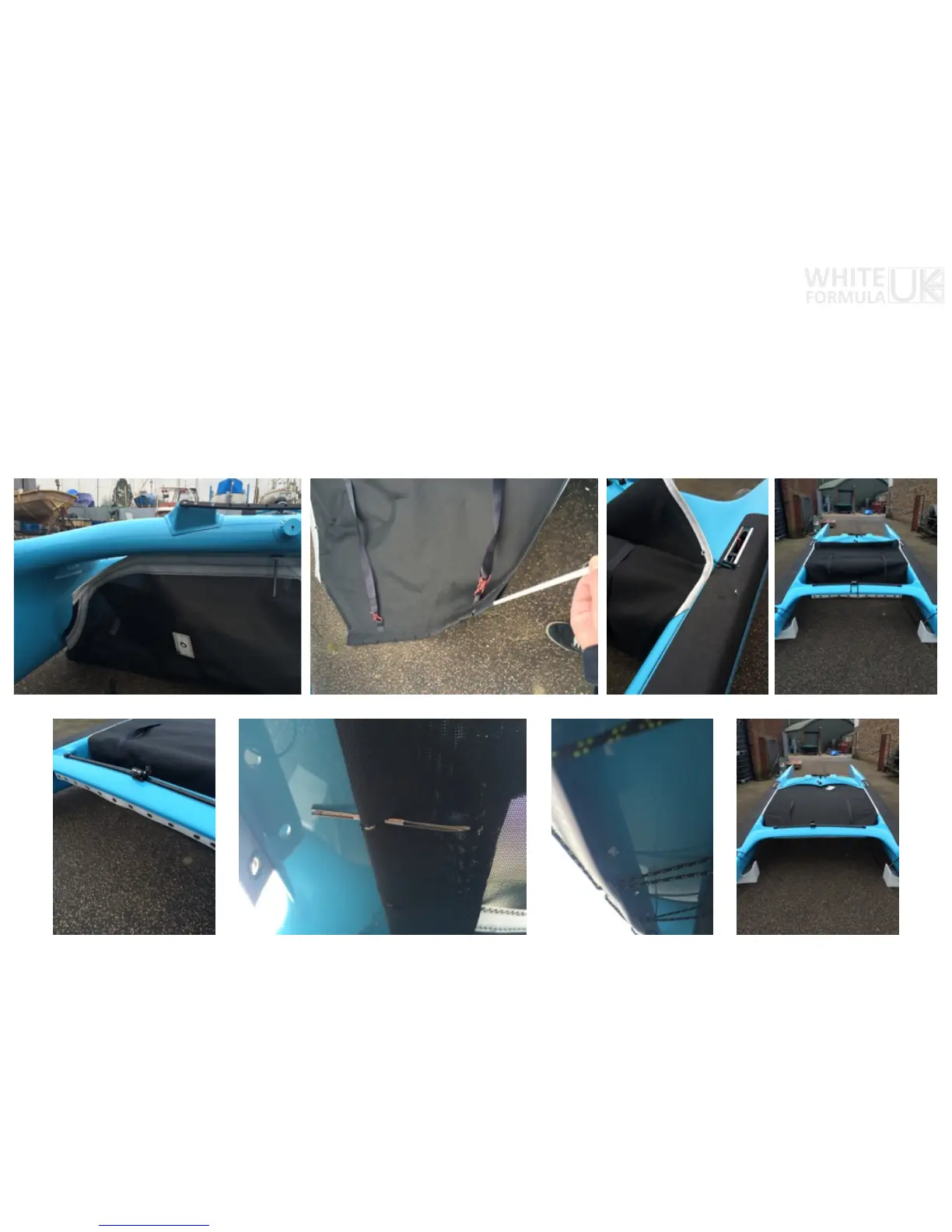

Feed front bolt rope though the track under the main beam (1)
Place the trampoline rod though the back of the trampoline (this will be used to help tighten the trampoline) (2)
Feed both side bolt ropes down the side tracks, pulling each side a few inches at a time. (3)
Feed the trampoline lacing strip though the track under the rear beam (5)
Use trampoline line to tighten the two together (7)
Feed rope though the eye around the rod (use a fid to help with this) and back though the same eye and move along to the next eyelet (6)
The tighter the better, this will help to create a stiffer platform.
Trampoline
1
1 2
765
43
8
