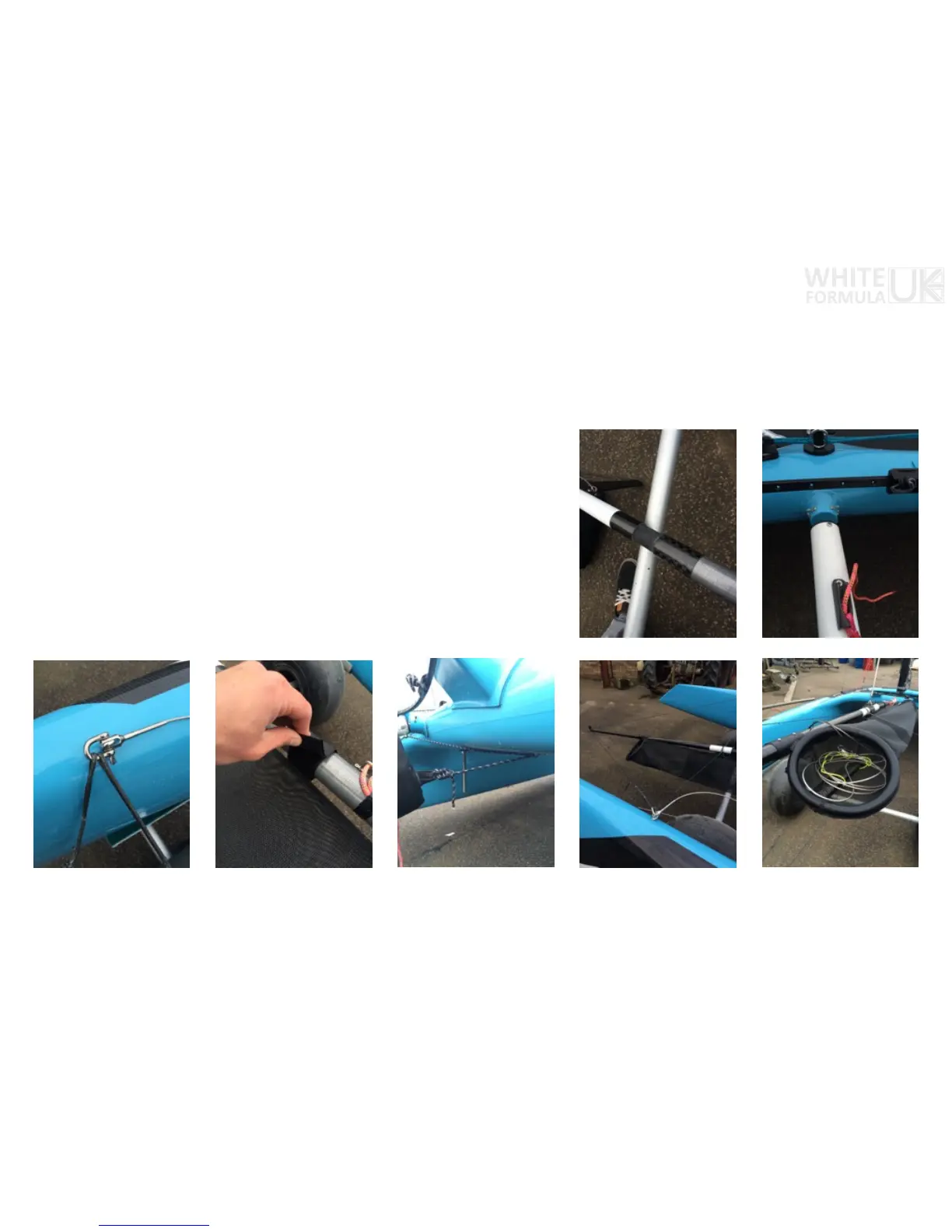

• Slot both ends of the spinnaker pole together (1)
• Place the pin into the pole mount on the main beam (2)
• Attach the whisker lines to the bridle wire and shackle to the eyelets on the bow (3)
• Use the velcro to attach the bag to the pole (4)
• Tie on the spinnaker bag using the eyelets under the pole and main beam (5)
• Its worth keeping the tension lines and striker in the spinnaker bag until you need them, this will help
to keep things neater (7)
Spinnaker Pole
3
1 2
3 4 5 6 7
