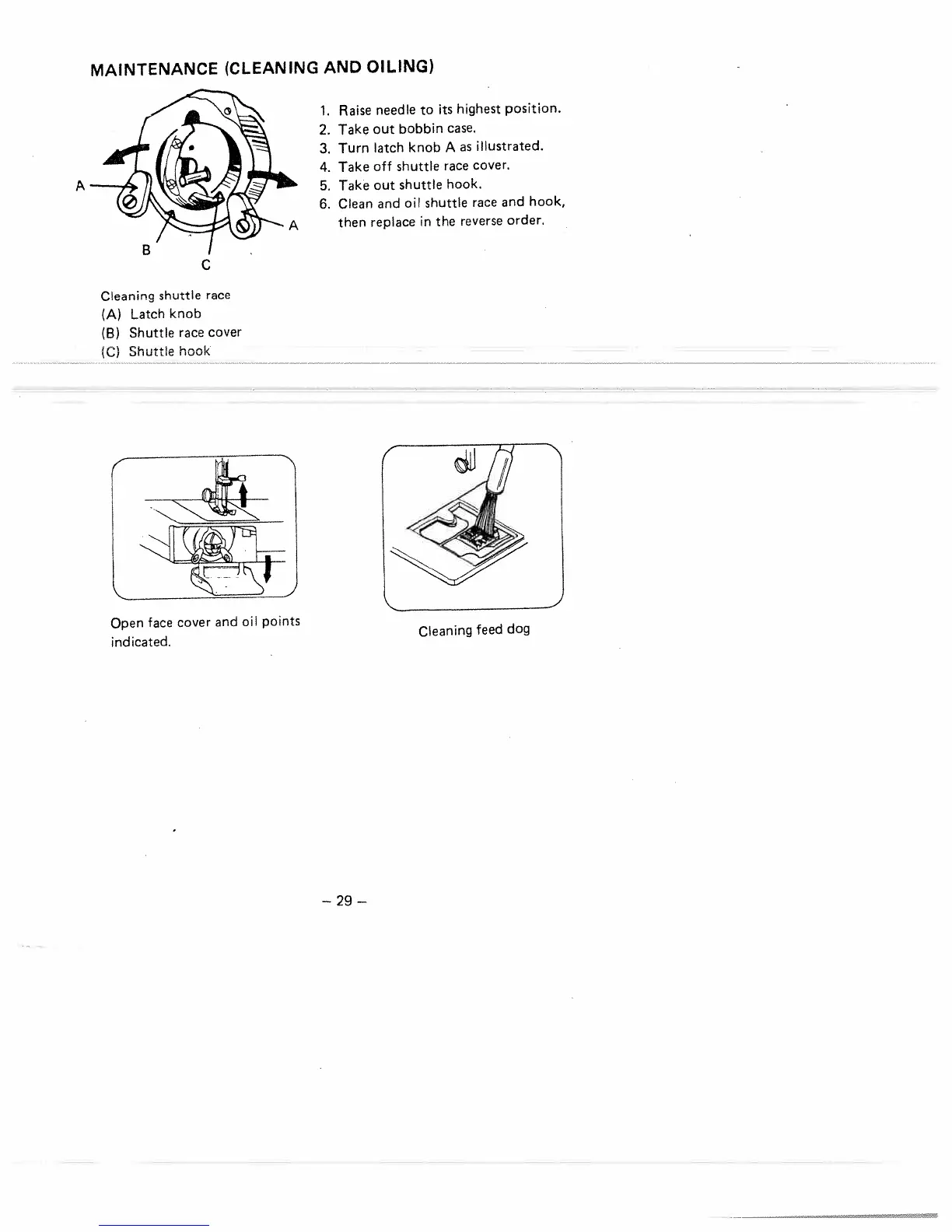

White 1515 - Maintenance and Oiling Procedures

MAINTENANCE
(CLEANING
AND OILING)
1. Raise
needle to
its
highest
position.
2.
Take
out
bobbin
case.
3.
Turn
latch
knob
A
as
illustrated.
4.
Take
off shuttle
race
cover.
A
5.
Take
out
shuttle
hook.
6.
Clean
and
oil
shuttle
race
and
hook,
then
replace
in
the
reverse
order.
Cleaning
shuttle
race
(A)
Latch
knob
(B)
Shuttle race
cover
(C)
Shuttie
hook
Open
face
cover
and oil
points
Cleaning
feed
dog
indicated,
C
