13 SERVICE MANUAL

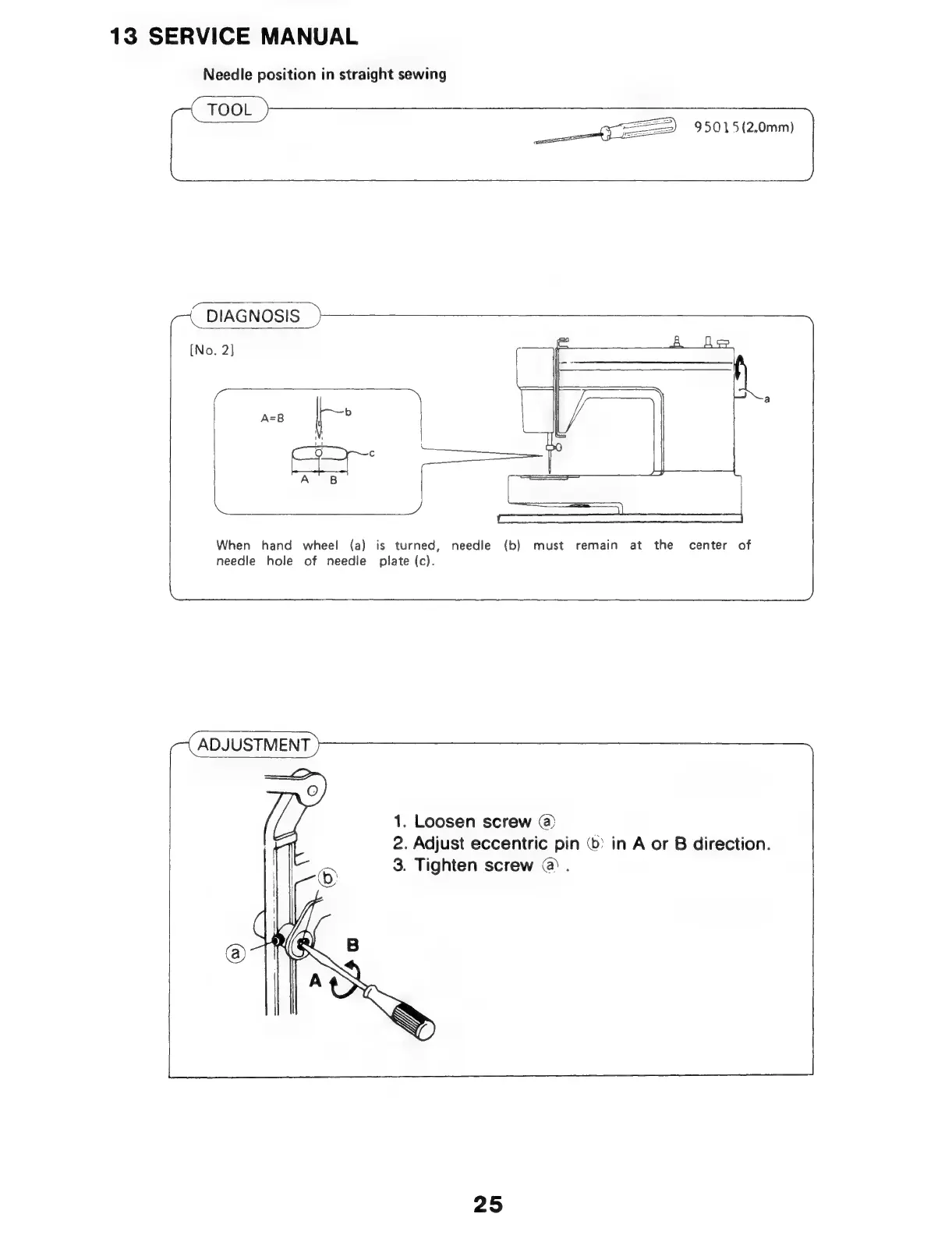

Needle position in straight sewing
( TOOL
95015(2,0mm)
Oe re ent
DIAGNOSIS _)}——
(No. 2]
in E +
_
1 c
A B | SSS }
/ a
When hand wheel (a) is turned, needle (b) must remain at the center of
needle hole of needle plate (c).
Pid ee at Se
ae
ADJUSTMENT
1. Loosen screw (@)
2. Adjust eccentric pin ‘6: in A or B direction.
3. Tighten screw @).
25
