Tension
of
motor
belt
TOOL
ae
+
Philips
screwdriver
95003
eR
sCO95013
(8mm)

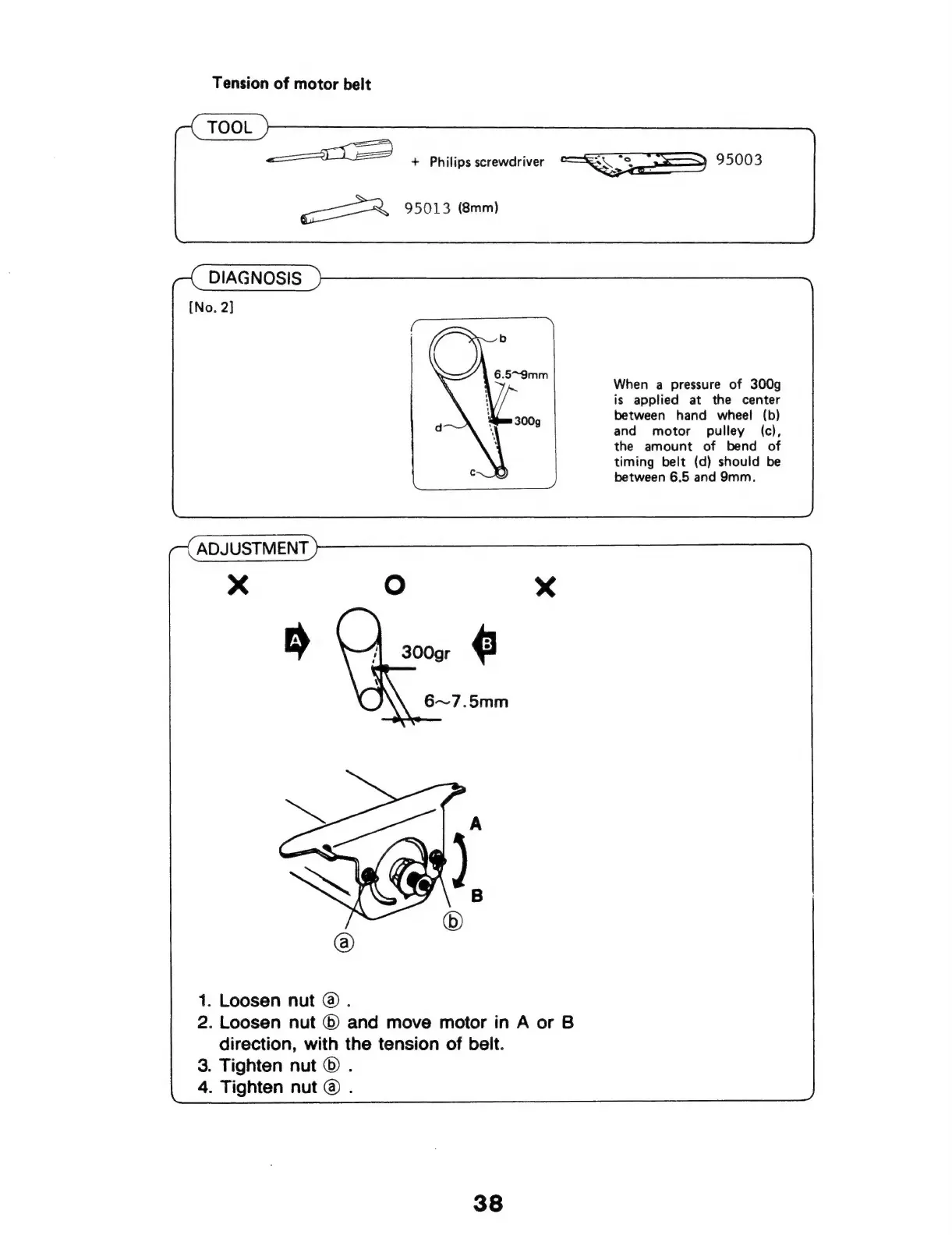

DIAGNOSIS
When
a
pressure
of
300g
is
applied
at
the
center
between
hand
wheel
(b)
and
motor
pulley
(c),
the
amount
of
bend
of
timing
belt
(d)
should
be
between
6.5
and
9mm.
ADJUSTMENT
1.
Loosen
nut
@
.
2.
Loosen
nut
©
and
move
motor
in
A
or
B
direction,
with
the
tension
of
belt.
3.
Tighten
nut
©
.
4.
Tighten
nut
@
.
38
