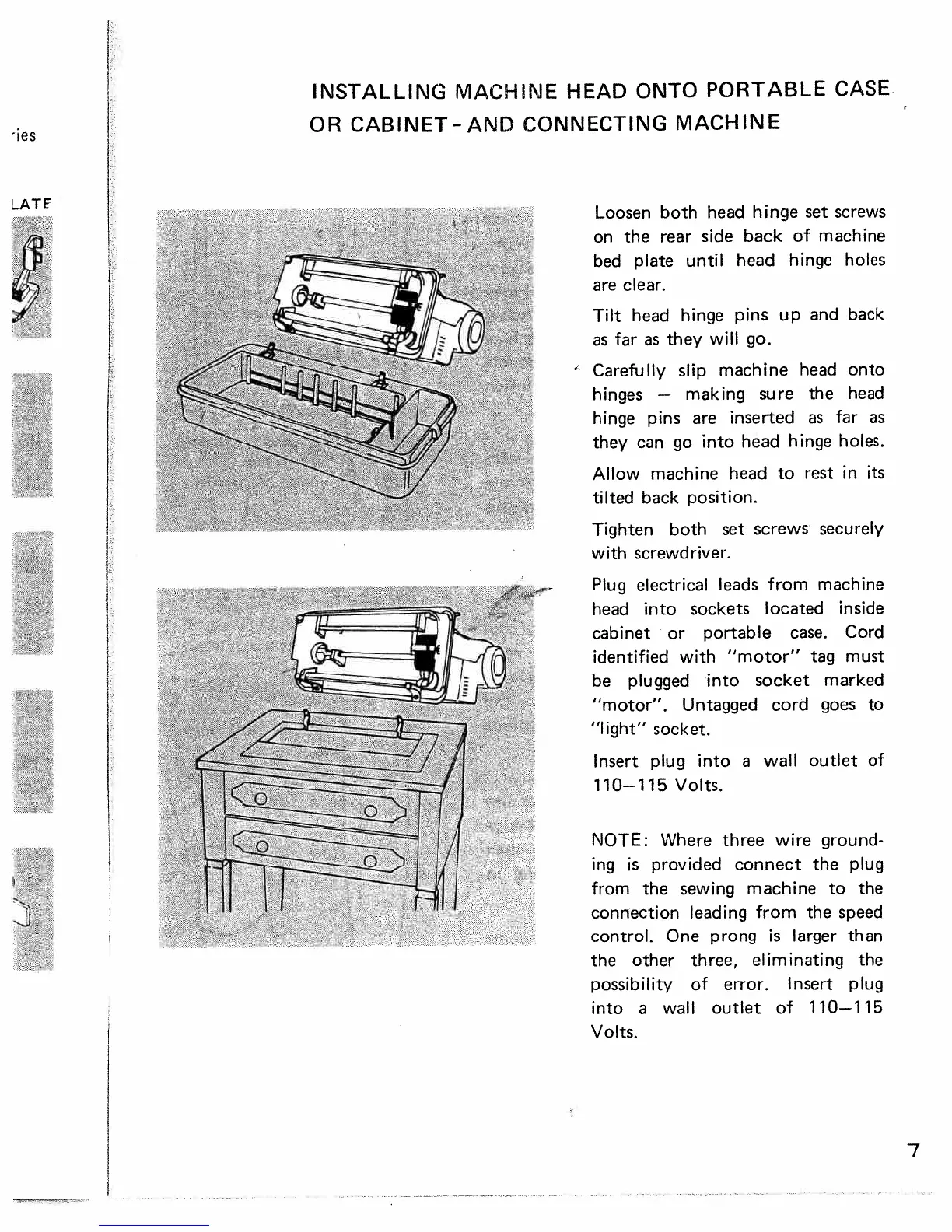

White 404 - INSTALLING MACHINE HEAD ONTO PORTABLE CASE OR CABINET - AND CONNECTING MACHINE

INSTALLING
MACHINE
HEAD
ONTO
PORTABLE
CASE.
Loosen
both head
hinge
set
screws
on
the
rear
side
back
of
machine
bed
plate
until
head
hinge
holes
are
clear.
Tilt
head
hinge
pins
up
and
back
as
far
as
they
will
go.
Carefully
slip
machine
head
onto
hinges
—
making
sure
the
head
hinge
pins
are
inserted
as
far
as
they can
go
into
head
hinge
holes.
Allow
machine head
to
rest
in its
tilted
back
position.
Tighten both
set
screws securely
with
screwdriver.
Plug
electrical
leads
from
machine
head
into
sockets
located
inside
cabinet or
portable
case.
Cord
identified
with
“motor” tag
must
be
plugged
into
socket
marked
“motor”.
Untagged
cord
goes to
“light”
socket.
Insert
plug
into
a
wall
outlet
of
110—115
Volts.
NOTE:
Where three
wire
ground
ing
is
provided
connect
the
plug
from
the
sewing machine
to
the
connection
leading
from
the
speed
control.
One
prong
is larger than
the
other
three,
eliminating
the
possibility
of
error.
Insert plug
into
a
wall outlet
of
110—115
OR
CABINET-AND
CONNECTING
MACHINE
LATE
0
Volts.
