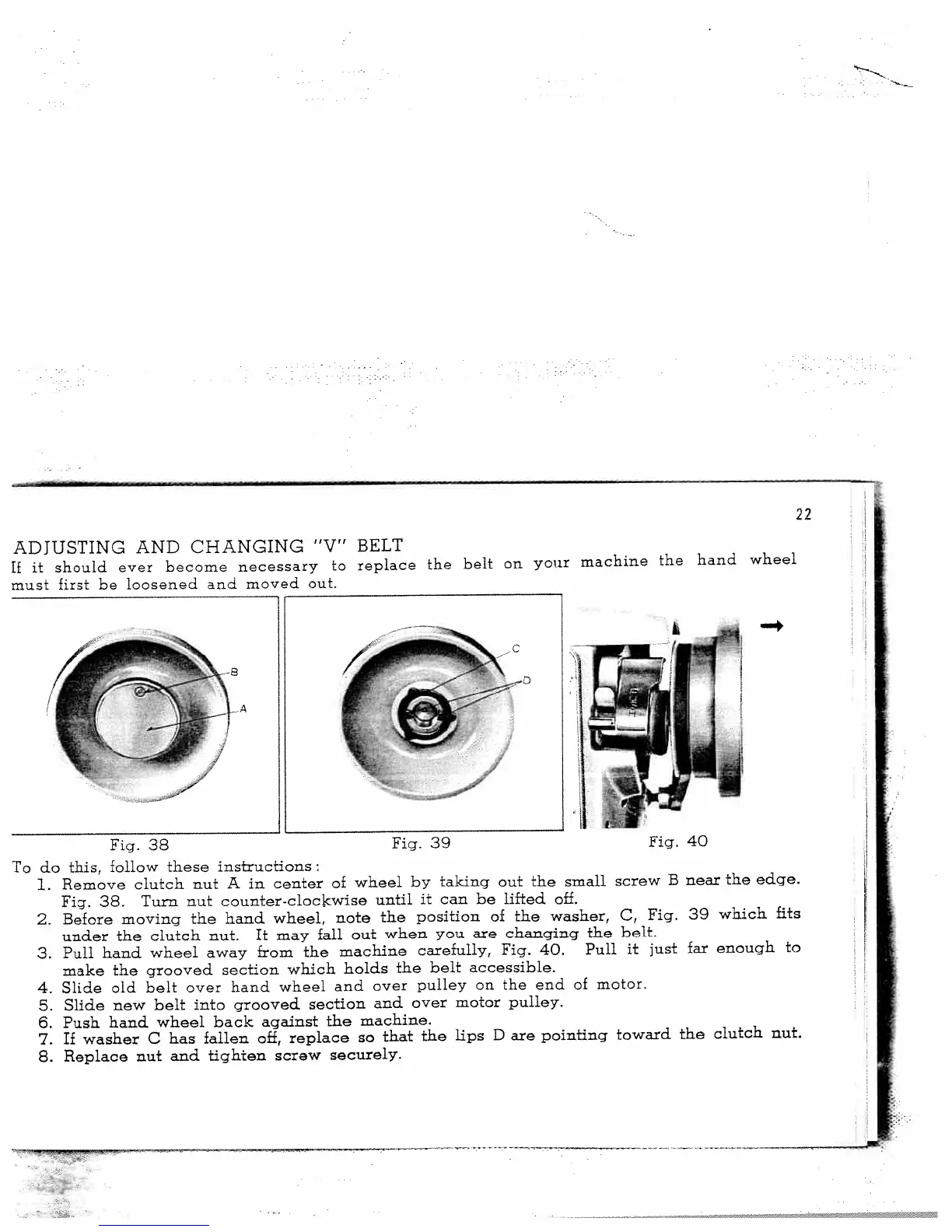

ADJUSTING
AND CHANGING
“V”
BELT
If
it
should
ever become
necessary
to
replace
the
belt
on
your
machine
the
must
first
be
loosened
and
moved
out.
hand
wheel
Fig.
38
L
I
I
Fig.
39
Fig.
40
To
do
this,
follow these
instructions:
1.
Remove
clutch
nut
A
in
center
of
wheel
by
taking out the
small
screw
B
near
the
edge.
Fig.
38.
Turn
nut
counter-clockwise
until
it
can be
lifted
off.
2.
Before
moving
the
hand wheel,
note
the
position
of
the
washer,
C,
Fig.
39
which
fits
under
the
clutch
nut. It
may
fall
out
when
you
are changing
the
belt.
3.
Pull
hand wheel
away
from
the
machine
carefully,
Fig. 40.
Pull
it
just
far
enough
to
make
the
grooved
section which
holds
the
belt accessible.
4.
Slide
old
belt
over
hand
wheel
and
over
pulley
on
the
end
of
motor.
5.
Slide
new
belt
into grooved
section
and
over
motor pulley.
6.
Push
hand
wheel back
against
the
machine.
7.
If
washer
C
has
fallen
off,
replace
so
that
the
lips
I)
are
pointing
toward
the
clutch
nut.
8.
Replace
nut
and
tighten
screw
securely.
