Symbols used in literature
= Pull out with tool - press fit
= Non removable part, use a new part
= External hex head
= Mark orientaon for reinstallation
= Press in - press fit
= Torque specification
= Note correct orientation

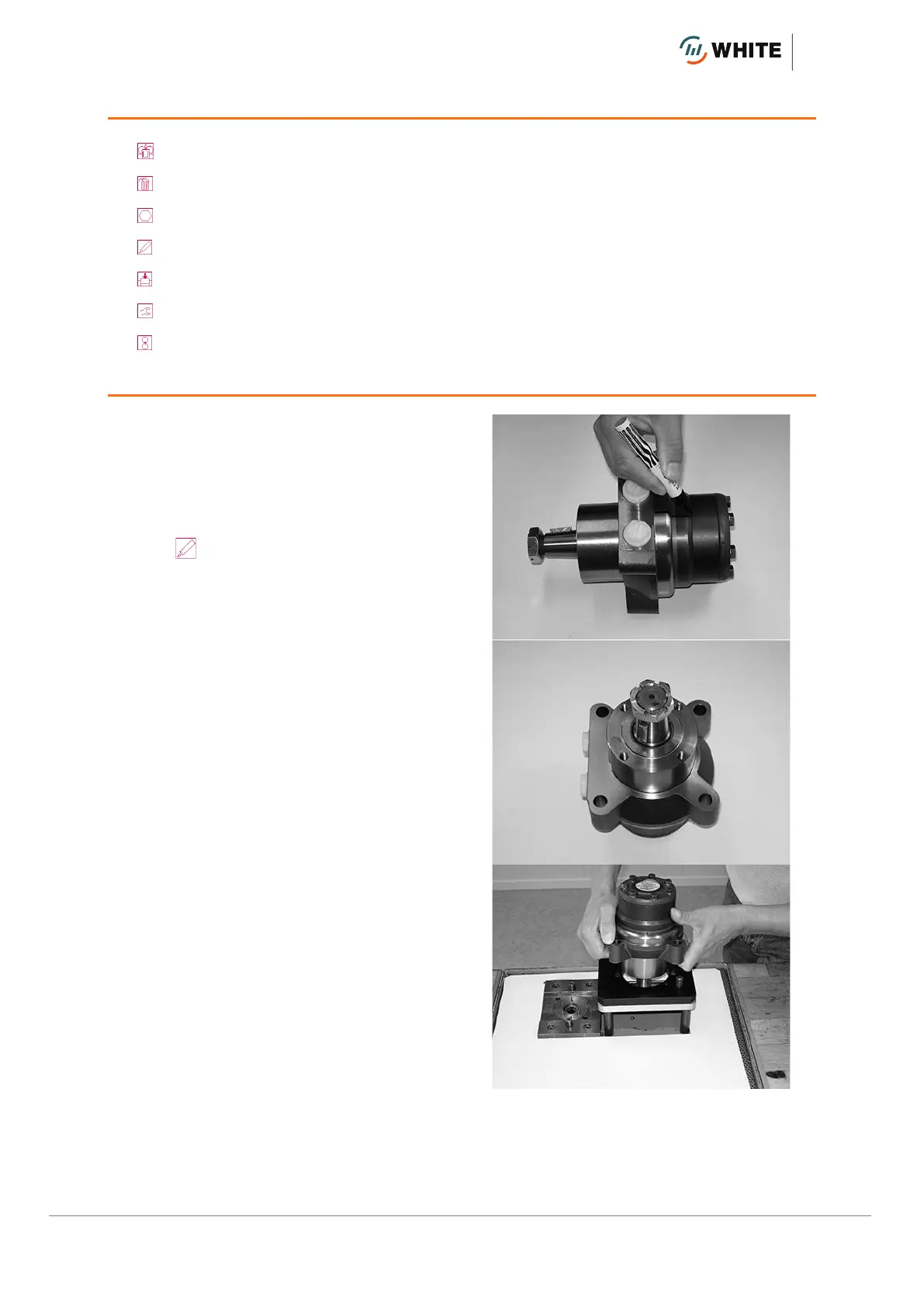

OMEW disassembly
1. To ensure correct assembly/locaon of
motor parts, provide idencaon marks.
2. Remove nut (1), parallel key (10) and
plasc plugs (26).
3. Fix motor in holding tool SJ 151- 9000-1
and holding plate SJ 9000-14.
