Whittaker C422425 - Electrical Schematic Diagram

WHITTAKER CONTROLS, INC.
A MEGGITT PLC COMPANY
MAINTENANCE MANUAL
GAS VENT VALVE
C422425 • C422685 • C422695 • C422705 • C423095 • C423155
INDUSTRIAL PRODUCTS GROUP Revision 1.1 10/15/2004 Page 9

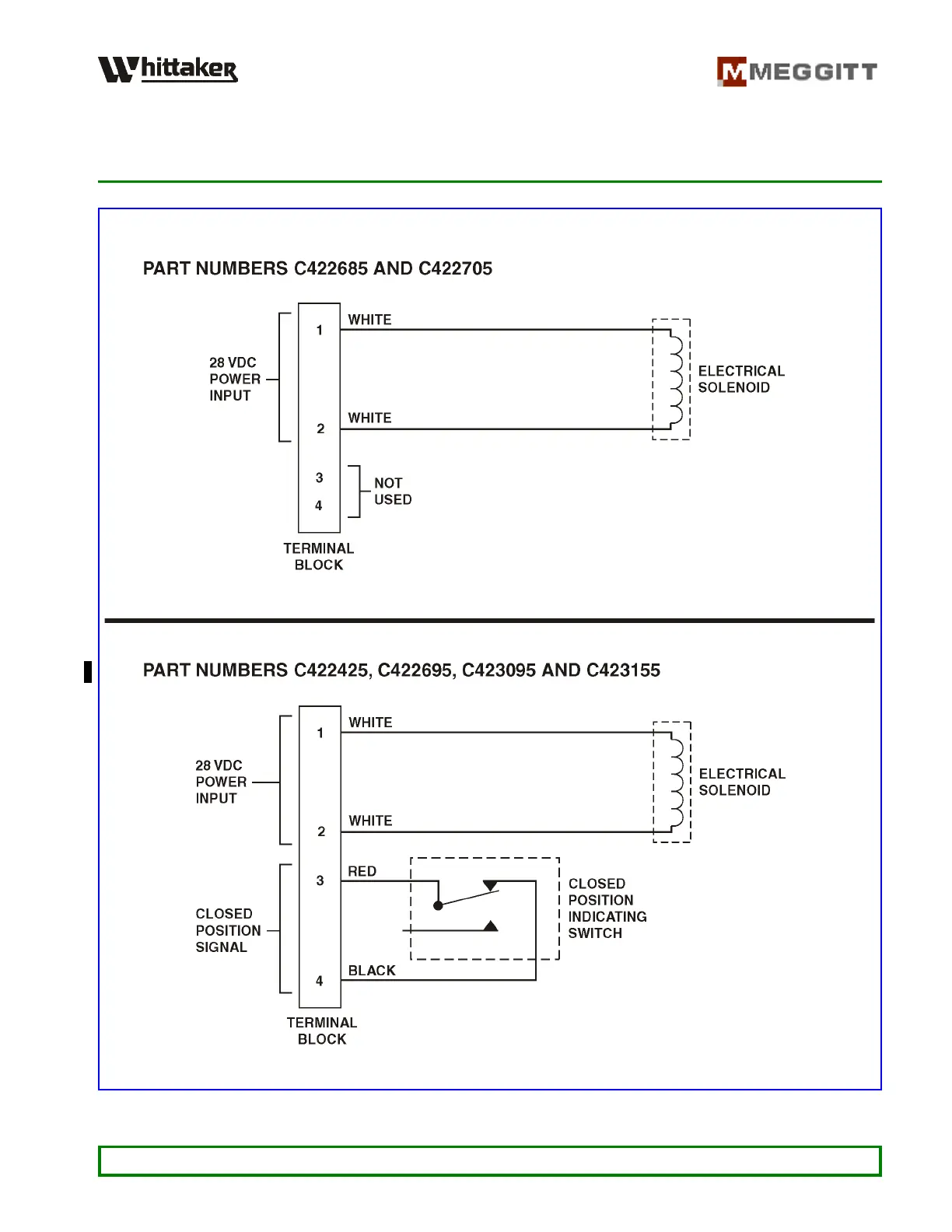

Figure 2. Electrical Schematic Diagram
