2010 Edition 1 Page 14
WHYTE Service Manual

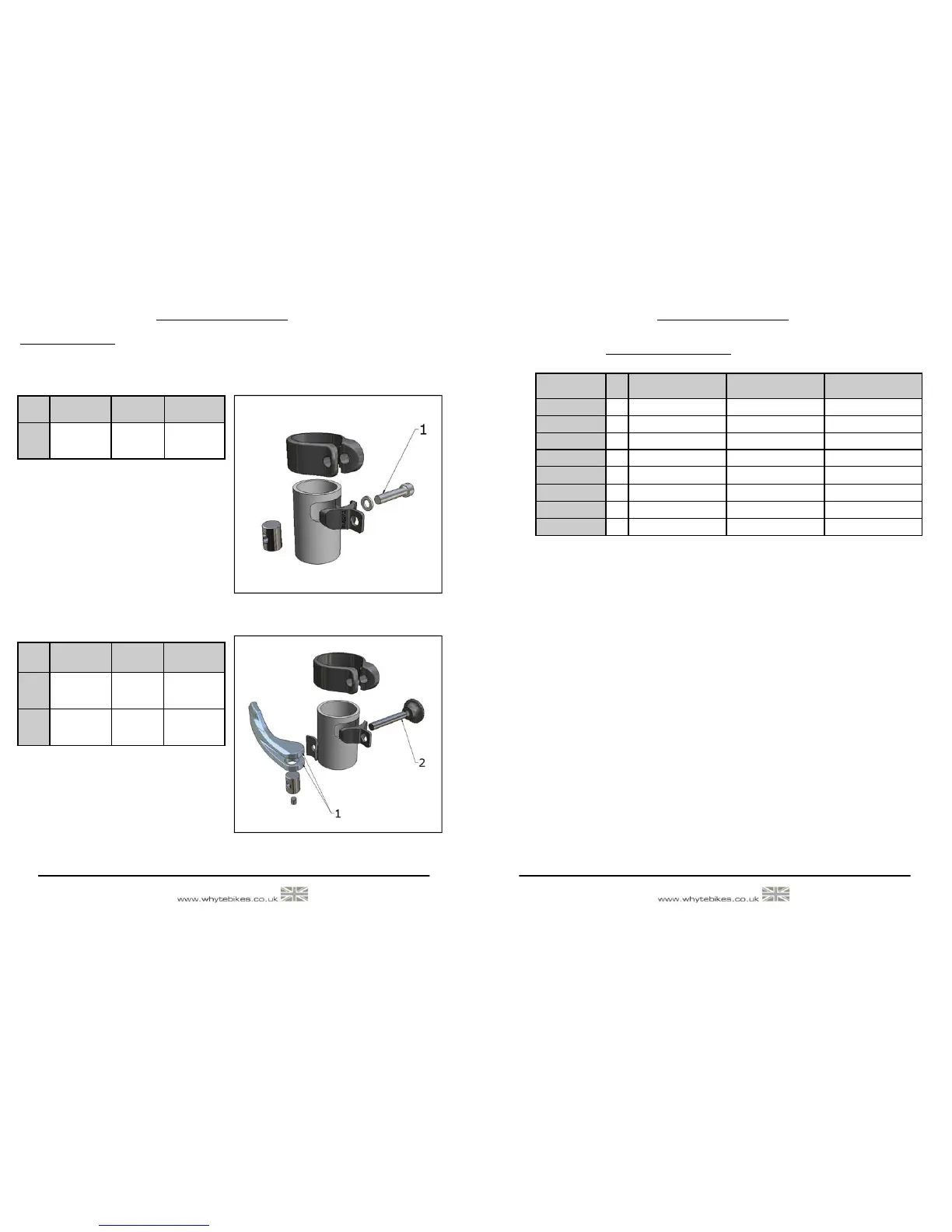

5.0: LUBRICATION
5.1: GETTA-GRIP SEAT CLAMP
5.1.1: BOLT-UP. Fig.5a
5.1.2: QR STYLE. Fig 5.b
Fig.5a: Bolt-up Style Lubrication
Fig.5b: QR Style Lubrication
Point Lubricant
Lubrication
Interval
1
Castrol LM
or
equivalent
Once a
Month
Description
M6 x 30mm
Fastener
Point Lubricant
Lubrication
Interval
1
Castrol LM
or
equivalent
After Every
Ride
2
Castrol LM
or
equivalent
Once a
Month
Description
Whyte QR
Lever Cam
Surface
M6 QR Shaft
2010 Edition 1 Page 7
WHYTE Service Manual
Frame Size
Small Medium Large
Head Angle 67.5° 67.5° 67.5°
Seat Angle 72.5° 72.5° 72.5°
Top Tube 565.1mm 584.5mm 609.6mm
BB Height* 322.7mm 322.7mm 322.7mm
Stand Over 774mm 800mm 826mm
Wheel Base 1080.7mm 1100.9mm 1127.6mm
Chain Stay 425mm 425mm 425mm
Seat Post 30.9mm 30.9mm 30.9mm
X
A
B
C
D
E
F
G
H
2.2.4: WHYTE 901 & 905
Note:
Geometry shown here is ’Showroom’ i.e. without rider aboard the bicycle. ’With Sag’ geometry is with rider after correct
sag is set at the front. Please refer to suspension set up for information on how to achieve the correct sag of the fork.
* BB height with Ø677mm tyres fitted (2.25” / 54-559)
