Whyte 801 - Whyte 19 C, CS, Race & Works Geometry; Whyte 801, 805 & 809 Geometry

2010 Edition 1 Page 6
WHYTE Service Manual
Frame Size
Small Medium Large
Head Angle 70.0° 70.0° 70.0°
Seat Angle 73.5° 73.5° 73.5°
Top Tube 576.2mm 600.9mm 614.0mm
BB Height* 311.5mm 311.5mm 311.5mm
Stand Over 775mm 794mm 818mm
Wheel Base 1077.5mm 1093.0mm 1107.9mm
Chain Stay 420mm 420mm 420mm
Seat Post 30.9mm 30.9mm 30.9mm
X
A
B
C
D
E
F
G
H
2.2.2: WHYTE 19 C, CS, RACE & WORKS
Frame Size
Small Medium Large
Head Angle 68.5° 68.5° 68.5°
Seat Angle 73.5° 73.5° 73.0°
Top Tube 583.8mm 598.5m 617.8mm
BB Height* 313.5mm 313.5mm 313.5mm
Stand Over 773mm 797mm 824mm
Wheel Base 1091.9mm 1107.4mm 1122.2mm
Chain Stay 425mm 425mm 425mm
Seat Post 30.9mm 30.9mm 30.9mm
X
A
B
C
D
E
F
G
H
Extra
Large
68.5°
73.0°
628.8mm
313.5mm
844mm
1133.9mm
425mm
30.9mm
Extra
Small
68.5°
74.0°
561.5mm
313.5mm
768mm
1073.9mm
425mm
30.9mm
2.2.3: WHYTE 801, 805 & 809
Note:
Geometry shown here is ’Showroom’ i.e. without rider aboard the bicycle. ’With Sag’ geometry is with rider after correct
sag is set at the front. Please refer to suspension set up for information on how to achieve the correct sag of the fork.
* BB height with Ø673mm tyres fitted (2.1” / 52-559)
Note:
Geometry shown here is ’Showroom’ i.e. without rider aboard the bicycle. ’With Sag’ geometry is with rider after correct
sag is set at the front. Please refer to suspension set up for information on how to achieve the correct sag of the fork.
* BB height with Ø677mm tyres fitted (2.25” / 54-559)
2010 Edition 1 Page 15
WHYTE Service Manual

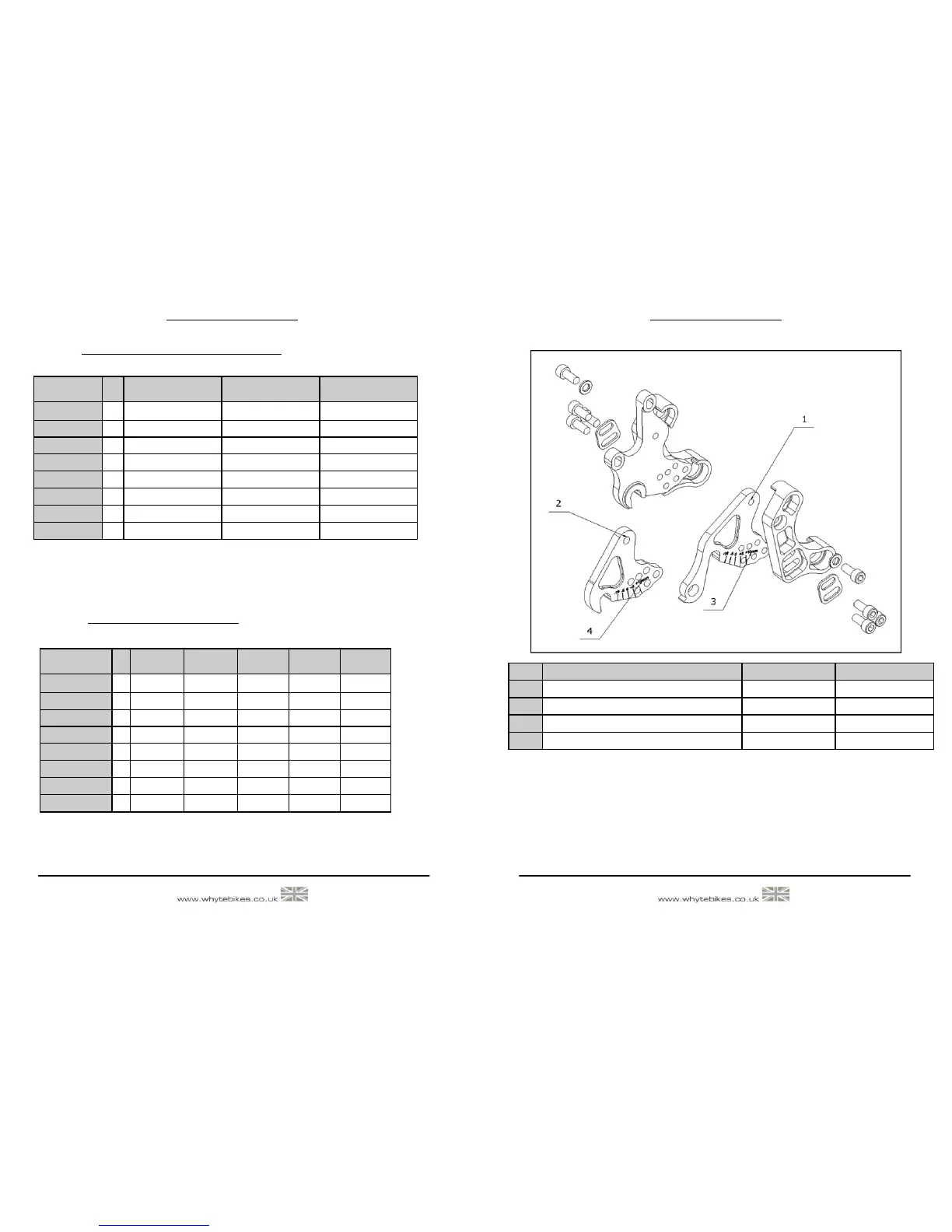

5.2: WHYTE 19 TRAIL ADJUSTABLE DROPOUT SYSTEM
5.3: GENERAL WHYTE HARDTAIL MTB LUBRICATION
For the correct lubrication regime and maintenance of all parts on a Whyte hardtail bicycle,
please refer to the specific component manufacturers detailed instructions bundled with
this manual or for further information visit the specific manufacturers website.
Point Description Lubricant Lubrication Interval
1 LH & RH Dropout Plate Pivot Area (Face Only) SKF Anti Fret Paste Check Once a Month
2 RH SS Plate Pivot Area (Face Only) SKF Anti Fret Paste Check Once a Month
3 LH & RH Dropout Plate Clamp Area (Face Only) SKF Anti Fret Paste Check Once a Month
4 RH SS Plate Clamp Area (Face Only) SKF Anti Fret Paste Check Once a Month
Fig.6: Whyte 19 Trail Dropout lubrication
