The release knob is provided for holding the saw head
down while transporting or storing the mitre saw.
When boxed, during storage or transportation, ensure
the saw head is locked in the down position. To release
the head ready for operation, apply downward pressure
on the operating handle, pull out the release knob and
allow the head to rise to the upper position.
To lock the saw head down for transportation, push the
lower blade lock lever outwards a little and lay down the
saw head by pressing the operating handle downwards
to its lowest position. Then push the release knob into
original place to lock the saw head in the lowest position.
NOTE: The saw must never be used with the release knob
locking the head down.
BEFORE OPERATION

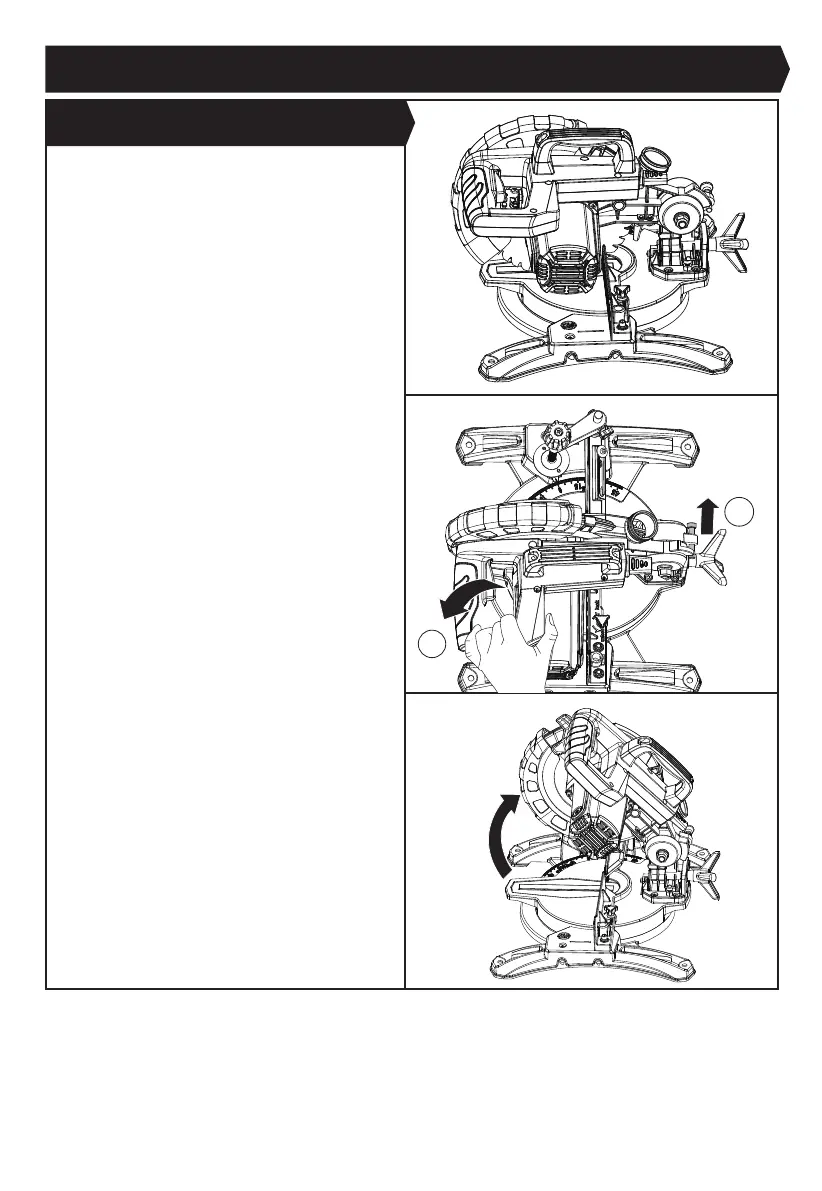

1. RELEASE KNOB (SEE FIG. E1-E3)
1
2
Fig. E2
Fig. E3
Fig. E1
