WIKA FSD-3 User Manual

33WIKA operating instructions flow switch, model FSD-3
EN
14153887.01 09/2016 EN/DE/FR

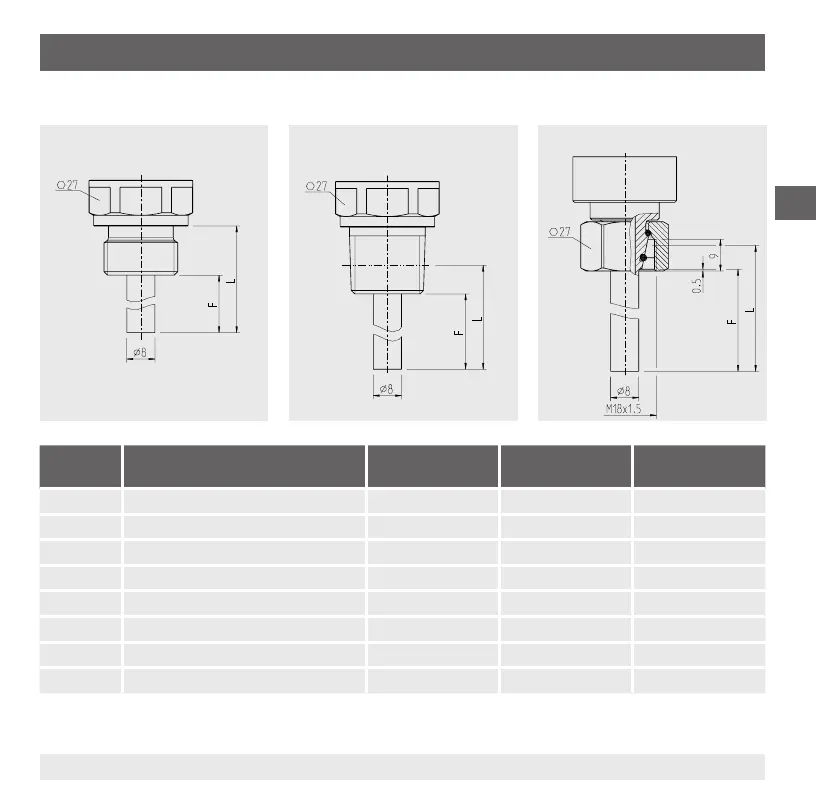

9.Specications
DIN EN ISO 1179-2
(formerly DIN 3852-E)
ANSI/ASME B1.20.1 ISO 225-1
Standard Thread Probe length F Insertion length
L
Option 1 ISO 225-1 M18 x 1.5 45 mm (1.77 in) 52 mm (2.05 in)
Option 2 DIN EN ISO 1179-2 (formerly DIN 3852-E) G ¼ A 16 mm (0.63 in) 28 mm (1.10 in)
Option 3 DIN EN ISO 1179-2 (formerly DIN 3852-E) G ½ A 16 mm (0.63 in) 30 mm (1.18 in)
Option 4 DIN EN ISO 1179-2 (formerly DIN 3852-E) G ½ A 35 mm (1.38 in) 49 mm (1.93 in)
Option 5 DIN EN ISO 1179-2 (formerly DIN 3852-E) G ½ A 65 mm (2.65 in) 79 mm (3.11 in)
Option 6 DIN EN ISO 1179-2 (formerly DIN 3852-E) G ½ A 105 mm (4.13 in) 119 mm (4.69 in)
Option 7 ANSI/ASME B1.20.1 ¼ NPT 16 mm (0.63 in) 22 mm (0.87 in)
Option 8 ANSI/ASME B1.20.1 ½ NPT 30 mm (1.18 in) 38 mm (1.50 in)
Process connections (inch)
(1,06)
(0,35)
(1,06)
(0,35)
(1,06)
(0,35)
(0,02)
(0,36)
