5.3 Mechanical mounting
The max. torque depends on the mounting point (e.g. material and shape). If you have any questions,
please contact our application consultant.
→ For contact details see chapter 1 “General information” or the back page of the operating instructions.
1. Seal the sealing face (→ see “Sealing variants”).
2
.
At the mounting point, screw the pressure switch in hand-tight.
3
.
Tighten with a torque spanner using the spanner ats.

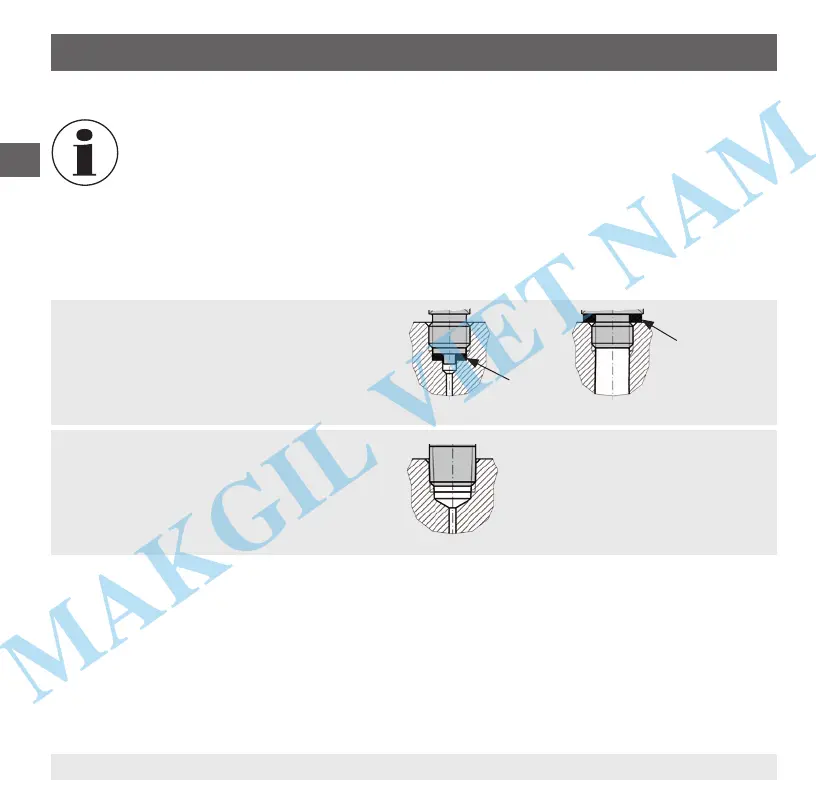

Sealing variants
Parallel threads
Seal the sealing face  with flat gasket, lens-type
sealing ring or WIKA profile sealing.
per EN 837
per DIN 3852-E


Tapered threads
Wrap threads with sealing material (e.g. PTFE
tape).
NPT, R and PT
