22 January, 2024 2 Rev. A-4
INSTALLATION
ATTACH RAIL - ATTACH THE SCREW SET SIDE RAILS
If permanent installation is desired, apply a drop of Loctite271
to the threads of the screws and set aside.
Make sure the weapon is safe.

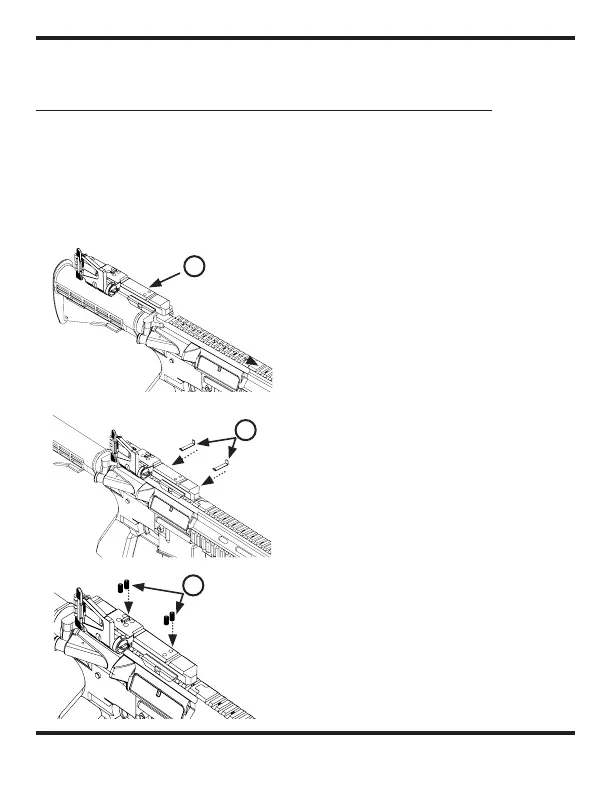

Slide the Rail (1) onto the top
weapon rail from the rear,
making sure the Mount’s
mounting grooves align with
the MIL-STD-1913 Rail’s outer
guides.
Install sheet metal tabs (2)
to secure the Rail to the
MIL-STD-1913 Rail’s locking
groove.
Insert the four screws (3) and
tighten using the provided hex
key.
Make sure the Rail is secure
by sliding forward and
backward.
1
2
3
