The Wilcox G05, G07, and G08 Fixed Flip Mounts are specialized accessories designed to integrate EOTech magnifiers with weapon systems, providing users with enhanced optical capabilities and operational flexibility. These mounts facilitate the rapid deployment and stowage of magnifiers, allowing for quick transitions between magnified and unmagnified viewing. The "Fixed Flip" design implies a robust and consistent mechanism for these transitions, ensuring reliability in various operational environments.

Function Description:

The primary function of these mounts is to securely attach an EOTech magnifier (specifically the G23/XPS models) to a weapon's MIL-STD-1913 rail. The "flip" mechanism allows the magnifier to be quickly moved into or out of the line of sight. When deployed, the magnifier aligns with the primary optic (e.g., a red dot sight), providing magnification for longer-range engagements. When stowed, the magnifier is moved to the side, allowing the user to utilize the primary optic without magnification, which is ideal for close-quarters combat or situations requiring a wider field of view. The "Fixed" aspect suggests a stable and repeatable positioning for both deployed and stowed states, minimizing any play or misalignment that could affect accuracy. The mounts are available in different configurations, including right-hand and left-hand versions, and accommodate various riser heights (.41" and 5/8") to ensure compatibility with different EOTech models and user preferences.

Important Technical Specifications:

Compatibility: Specifically designed for EOTech G23/XPS magnifiers.
Rail Interface: Attaches to MIL-STD-1913 rails, a standard for weapon accessory mounting.
Riser Heights: Available with .41" and 5/8" risers, catering to different optical axis heights.
Handedness: Offered in both right-hand (G05, G07) and left-hand (G08) configurations, allowing users to choose the optimal side for magnifier stowage based on their shooting preference and weapon setup.
Mounting Mechanism: Utilizes sheet metal tabs and screws for secure attachment to the weapon rail. The magnifier itself attaches to a Wilcox Shoe, which then interfaces with the flip mount via a dovetail and optic release lever.
Flip Mechanism: Features a "force-to-overcome tilt mechanism" for pivoting the mount between deployed and stowed positions. This design ensures a positive lock in both states and allows for quick, intuitive operation.
Material: While not explicitly stated, Wilcox products are typically constructed from durable, lightweight materials such as aerospace-grade aluminum, often with hard-coat anodized finishes for corrosion resistance and longevity.
Part Numbers:
- 61100G05: EOTech Right Hand, G23/XPS with 5/8" Riser Set Screw
- 61100G07: EOTech Right Hand, G23/XPS with .41" Riser Set Screw
- 61100G08: EOTech Left Hand, G23/XPS with .41" Riser Set Screw
Export Control: EAR99 NLR (No Export License Required), indicating that these products are generally not subject to stringent export controls under U.S. law.
CAGE Code: 004F1, identifying Wilcox Industries Corp. as a supplier to the U.S. government.
Patent: US Patent 9,775,395, indicating proprietary technology.

Usage Features:

Installation:
- Rail Attachment: The mount slides onto the top weapon rail from the rear, aligning with the MIL-STD-1913 rail's outer guides. Sheet metal tabs secure the mount to the rail's locking groove, and four screws are tightened with a hex key for a secure fit. For permanent installation, Loctite 271 can be applied to the screw threads.
- Riser Attachment: The front sight riser attaches by unthreading a screw assembly to open a floating rail grabber. The riser slides from right to left, ensuring the grabber engages the MIL-STD-1913 rail. The screw is then tightened clockwise with a flathead screwdriver or coin.
- Magnifier Shoe Attachment: The Wilcox Shoe attaches to the top of the EOTech Magnifier (not provided) by aligning screw holes and tightening screws with a flathead screwdriver. Loctite 271 can be used for permanent attachment.
- Magnifier to Flip Mount: The magnifier, with the attached Wilcox Shoe, is inserted into the Flip Mount interface. The optic release lever is pushed, and the shoe dovetail is inserted until the lever locks, securing the magnifier.
Operation (Pivot - Stow and Deploy):
- The Flip Mounts for the EOTech G23 feature a "force-to-overcome tilt mechanism." To pivot the mount between deployed (magnifier in line of sight) and stowed (magnifier to the side) positions, the user simply applies enough force to overcome the resistance of the mount. This allows for rapid and intuitive transitions without needing to manipulate levers or buttons for the pivot action itself.

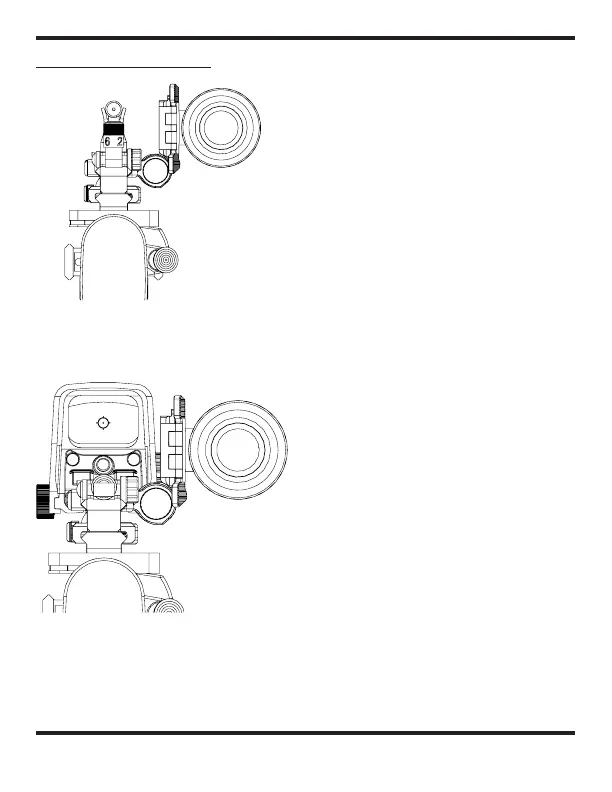

- The manual illustrates both deployed and stowed positions, including a stowed position for front sight mounted to a Wilcox front rail and a stowed position for reflex sight view.
Detachment: To detach the magnifier, the optic release lever is pushed, and the shoe dovetail is pulled out of the mount.
Safety: Emphasizes ensuring the weapon is safe before any installation or adjustment. A general safety warning advises ensuring the flip feature is not obstructed to prevent entanglement during operations.

Maintenance Features:

Cleaning: The mount should be cleaned by flushing away dirt with fresh water and/or wiping down assemblies with a clean, damp cloth.
Saltwater Environment: If used in saltwater, flushing with fresh water and drying after use is recommended. For extensive saltwater use, lightly lubricate stainless steel parts as needed.
Lubrication: Flip mechanisms that are not kept free from debris may bind. Light lubrication is recommended as needed to ensure smooth operation and proper locking into deployed or stowed positions.
Troubleshooting/Service: For service questions, users are directed to contact Wilcox between 8 am and 5 pm EST. For warranty claims or service work, a Return Merchandise Authorization (RMA)/Service Call Number (SC) must be obtained from Wilcox (via phone or online support) before returning the product. The product must be securely packaged and include the RMA/SC number, user's name, address, daytime phone number, and a description of the problem.

Overall, the Wilcox G05, G07, and G08 Fixed Flip Mounts are engineered for reliability, ease of use, and durability, providing a critical interface for enhancing the versatility of weapon systems equipped with EOTech magnifiers.
