INSTALLING
FURNACE
(Continued)

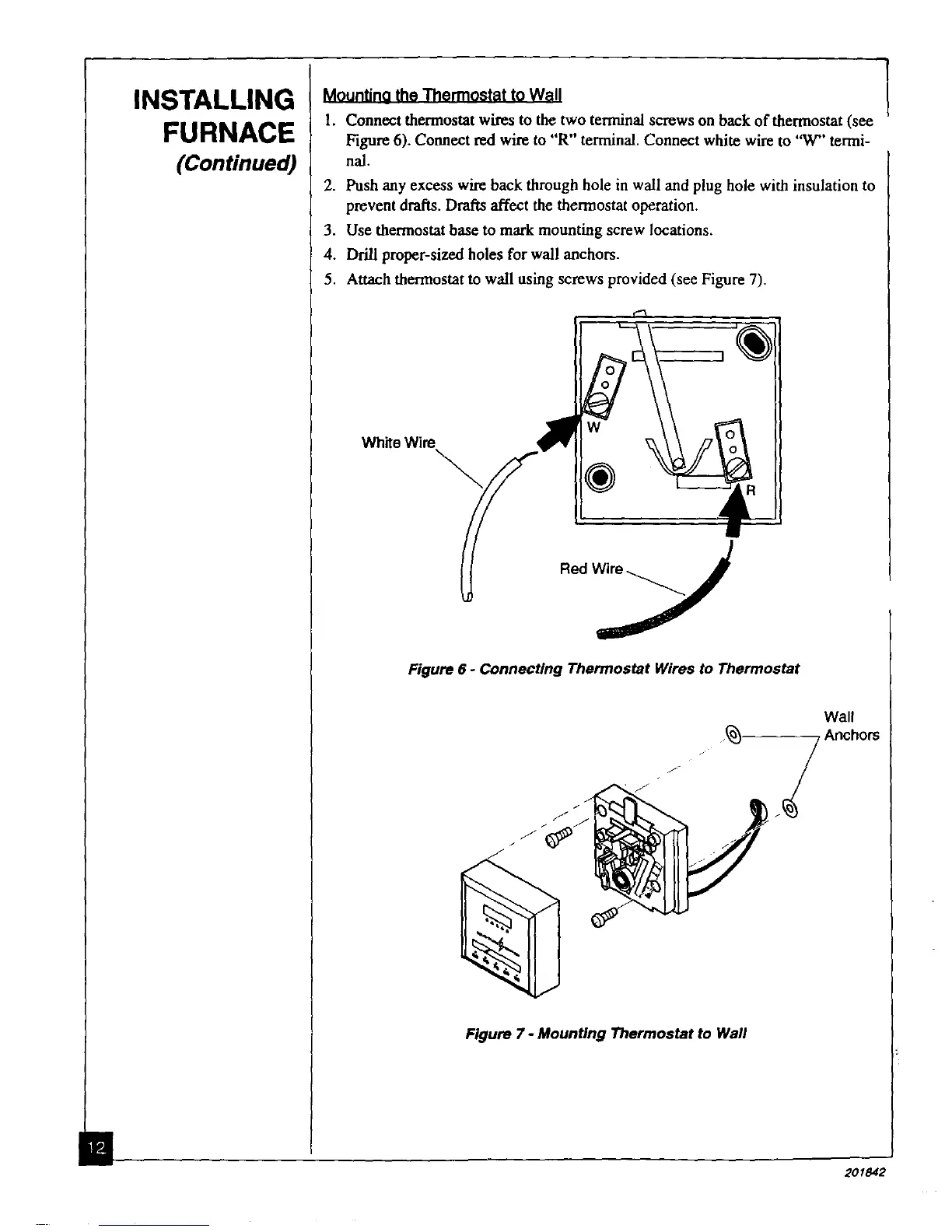

Mountina the Thermostat to Wall
1. Connect thermostat wLmsto the two terminal screws on back of thermostat (see
Figure 6). Connect red wire to "R" terminal. Connect white wire to "W" termi-
nal.
2. Push any excess wire back through hole in wall and plug hole with insulation to
prevent drafts. Drafts affect the thermostat operation.
3. Use thermostat base to mark mounting screw locations.
4. Drill proper-sized holes for wall anchors.
5. Attach thermostat to wall using screws provided (see Figure 7).
White Wire
\
Figure 6 - Connecting Thermostat Wires to Thermostat
Figure 7- Mounting Thermostat to Wall
201842
