ORDERING
REPLACEMENT
PARTS

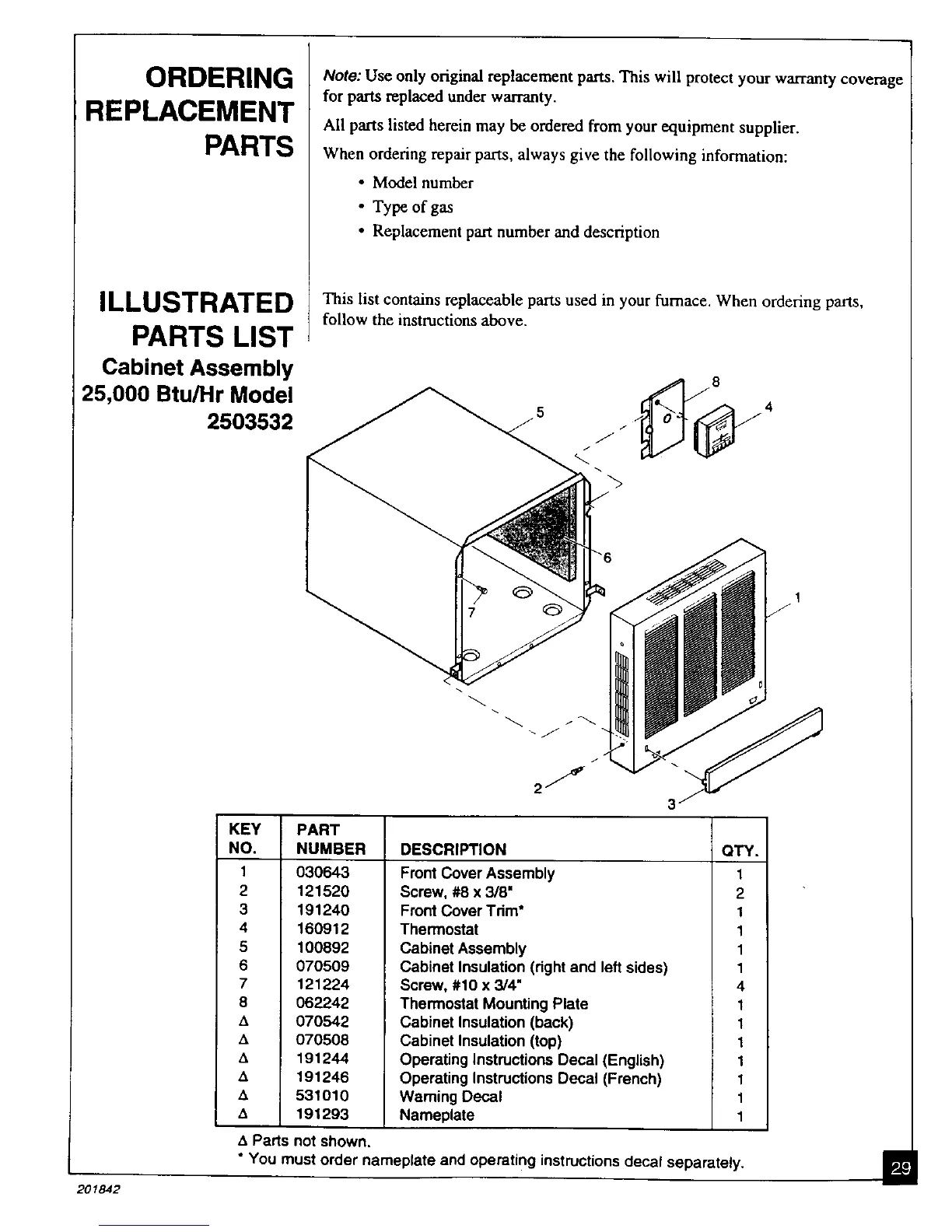

ILLUSTRATED
PARTS LIST
Cabinet Assembly
25,000 Btu/Hr Model
2503532
Note: Use only original replacement parts. This will protect your warranty covera I
for parts replaced under warranty.
All parts listed herein may be ordered from your equipment supplier.
When ordering repair parts, always give the following information:
• Model number
• Type of gas
• Replacement part number and description
This list contains replaceable pa_s used in your furnace. When ordering parts,
follow the instructions above.
KEY PART
NO. NUMBER
1 030643
2 121520
3 191240
4 160912
5 100892
6 070509
7 121224
8 062242
A 070542
A 070508
A 191244
191246
A 531010
A 191293
DESCRIPTION
QTY.
Front Cover Assembly 1
Screw, #8 x 3/8" 2
Front Cover Trim* 1
Thermostat 1
Cabinet Assembly 1
Cabinet Insulation (right and left sides) 1
Screw, #10 x 3/4" 4
Thermostat Mounting Plate 1
Cabinet Insulation (back) 1
Cabinet Insulation (top) 1
Operating Instructions Decal (English) 1
Operating Instructions Decal (French) 1
Warning Decal 1
Nameplate 1
Parts not shown.
• You must order nameplate and operating instructionsdecal separately. _,,
201842
