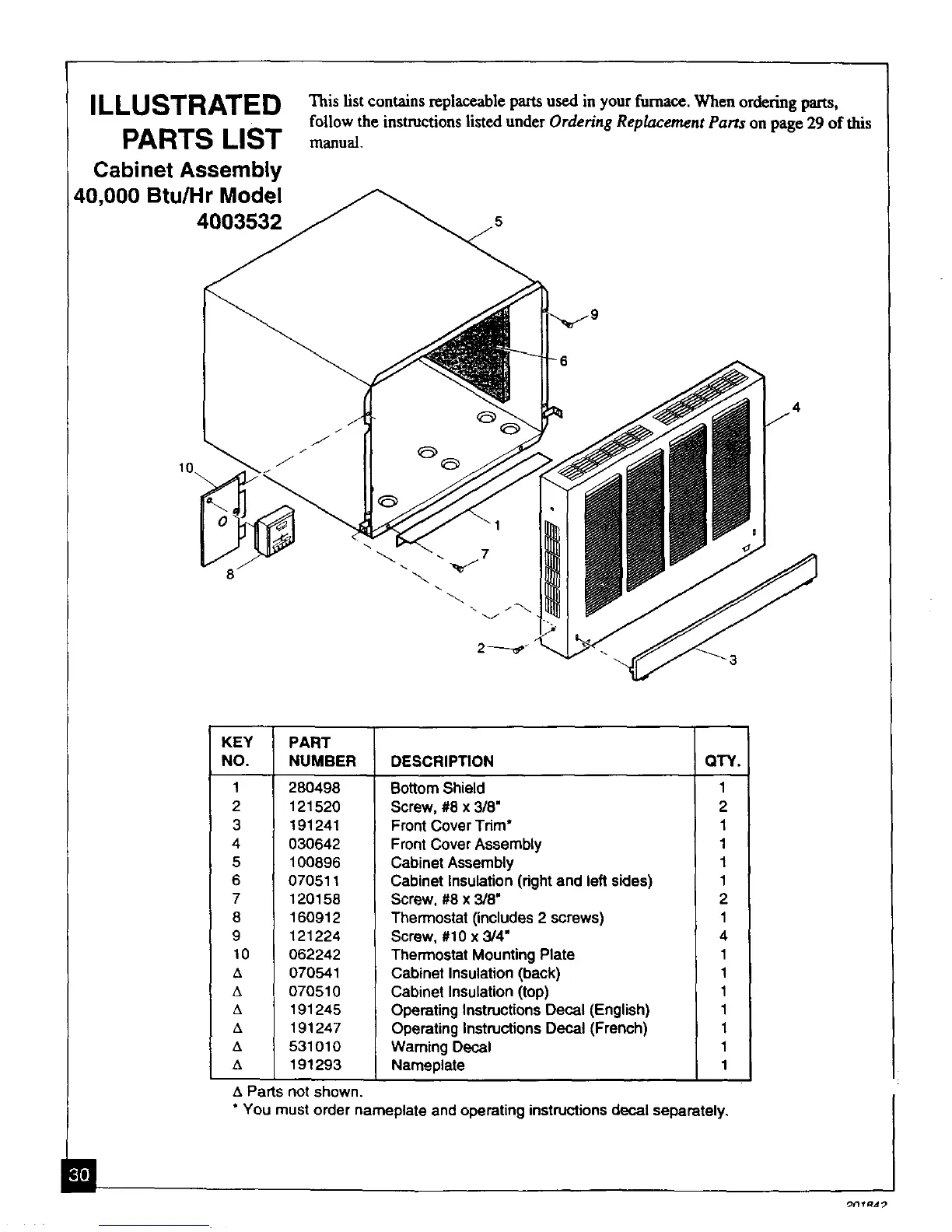

ILLUSTRATED
PARTS LIST
Cabinet Assembly
40,000 Btu/Hr Model
4003532
This list contains replaceable parts used in your furnace. When ordering parts,
follow the instructions listed under Ordering Replacement Parts on page 29 of this
manual.
7
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 280498
2 121520
3 191241
4 030642
5 100896
6 070511
7 120158
8 160912
9 121224
10 O62242
070541
A 070510
191245
191247
A 531010
191293
Bottom Shield 1
Screw, #8 x 3/8" 2
Front Cover Tdm* 1
Front Cover Assembly 1
Cabinet Assembly 1
Cabinet Insulation (right and left sides) 1
Screw, #8 x 3/8" 2
Thermostat (includes 2 screws) 1
Screw, #10 x 3/4" 4
Thermostat Mounting Plate 1
Cabinet Insulation (back) 1
Cabinet Insulation (top) 1
Operating Instructions Decal (English) 1
Operating Instructions Decal (French) 1
Warning Decal 1
Nameplate 1
A Parts not shown.
* You must order nameplate and operating instructions decal separately,
