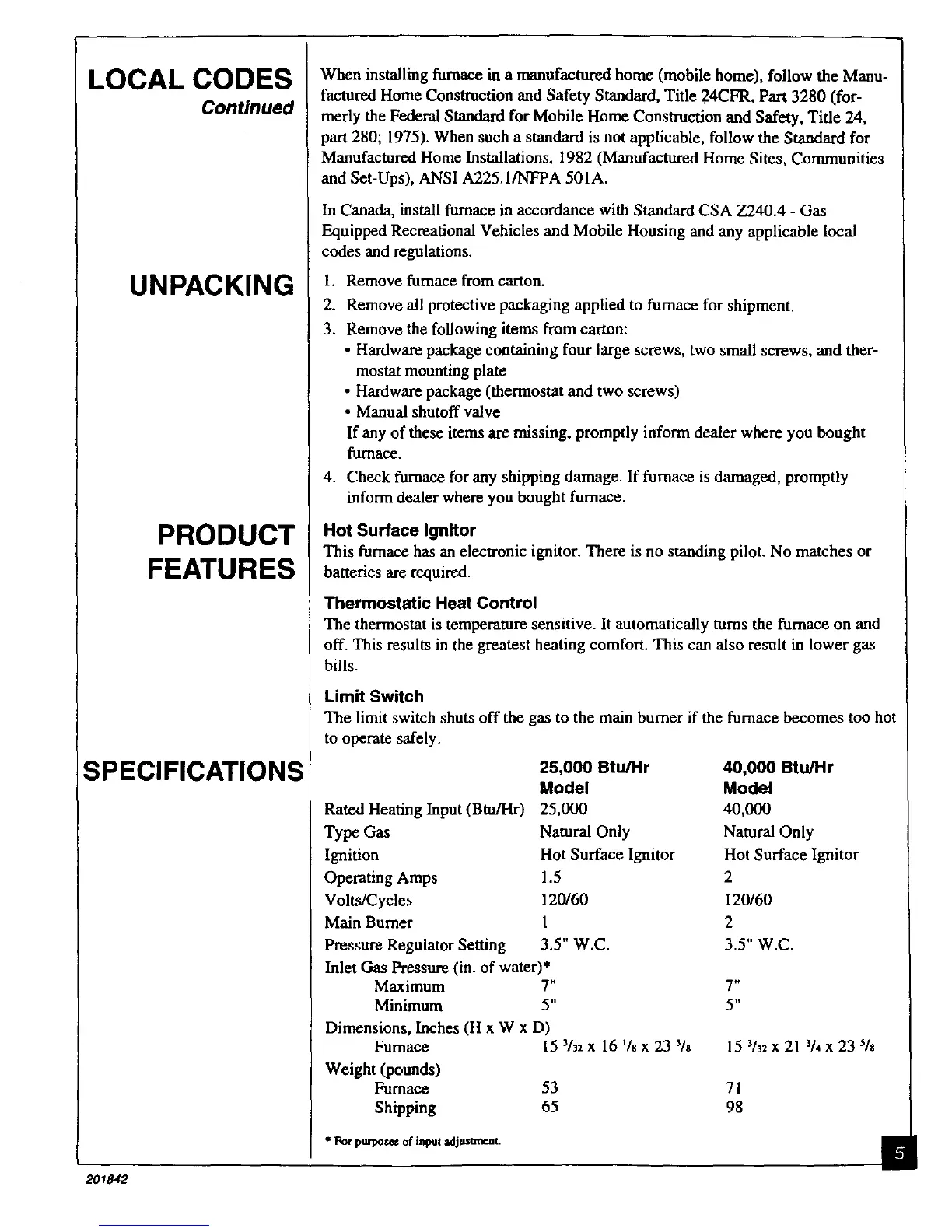

LOCAL CODES
Continued
UNPACKING
PRODUCT
FEATURES
SPECIFICATIONS
When installing furnace in a manufactured home (mobile home), follow the Manu-
factured Home Construction and Safety Standard, Title 24CFR, Part 3280 (for-
merly the Federal Standard for Mobile Home Construction and Safety, Title 24,
part 280; 1975). When such a standard is not applicable, follow the Standard for
Manufactured Home Installations, 1982 (Manufactured Home Sites, Communities
and Set-Ups), ANSI A225.1/NFPA 501A.
In Canada, install furnace in accordance with Standard CSA Z240.4 - Gas
Equipped Recreational Vehicles and Mobile Housing and any applicable local
codes and regulations.
I. Remove furnace from carton.
2. Remove all protective packaging applied to furnace for shipment.
3. Remove the following items from carton:
• Hardware package containing four large screws, two small screws, and ther-
mostat mounting plate
• Hardware package (thermostat and two screws)
• Manual shutoff valve
If any of these items are missing, promptly inform dealer where you bought
furnace.
4. Check furnace for any shipping damage. If furnace is damaged, promptly
inform dealer where you bought furnace.
Hot Surface Ignitor
This furnace has an electronic ignitor. There is no standing pilot. No matches or
batteries are required.
Thermostatic Heat Control
The thermostat is temperature sensitive. It automatically turns the furnace on and
off. This results in the greatest heating comfort. This can also result in lower gas
bills.
Limit Switch
The limit switch shuts off the gas to the main burner if the furnace becomes too hot
to operate safely.
25,000 Btu/Hr 40,000 Btu/Hr
Model Model
Rated Heating Input (Btu/Hr) 25,000 40,000
Type Gas Natural Only Natural Only
Ignition Hot Surface Ignitor Hot Surface Ignitor
Operating Amps 1.5 2
Volts/Cycles 120/60 120/60
Main Burner 1 2
Pressure Regulator Setting 3.5" W.C. 3.5" W.C.
Inlet Gas Pressure (in. of water)*
Maximum 7" 7"
Minimum 5" 5"
Dimensions, Inches (H x W x D)
Furnace 15 3/_2x 16 1/6x 23 5/8
Weight (pounds)
Furnace 53 71
Shipping 65 98
15 V3_x 21 V4x 23 V8
¢ For purposes of input adjustment.
_1_2
