Assembling the suspension unit
E-4 WILO EMU 3.0
Installation of the guide hold-
er or pipe extension for pipe
mounting
The pipe extension corresponds to a guide holder except that it has two
holders. With single pipe models R2, DN36 and DN50, the holding rail (7)
is omitted.
- Place the clamp (5) around the discharge pipe (6) and place the holding rail (7) on the clamp
(5) at the front.
- Loosely screw the holding rail (7) and clamp (5) together with the hexagon socket bolts (8)
and the hexagon nuts (9). Place a washer under the bolt (8) and the nut (9) on both sides. The
opening of the holding rail (7) should point to the front.
- Guide the guide holder (1) and the pipe extension (10) and both hammer head bolts (11) into
the holding rail (7), align them and secure them with the two hexagon nuts (12) and one
washer each. The securing system has been designed so that all bolts can be accessed after
installation.

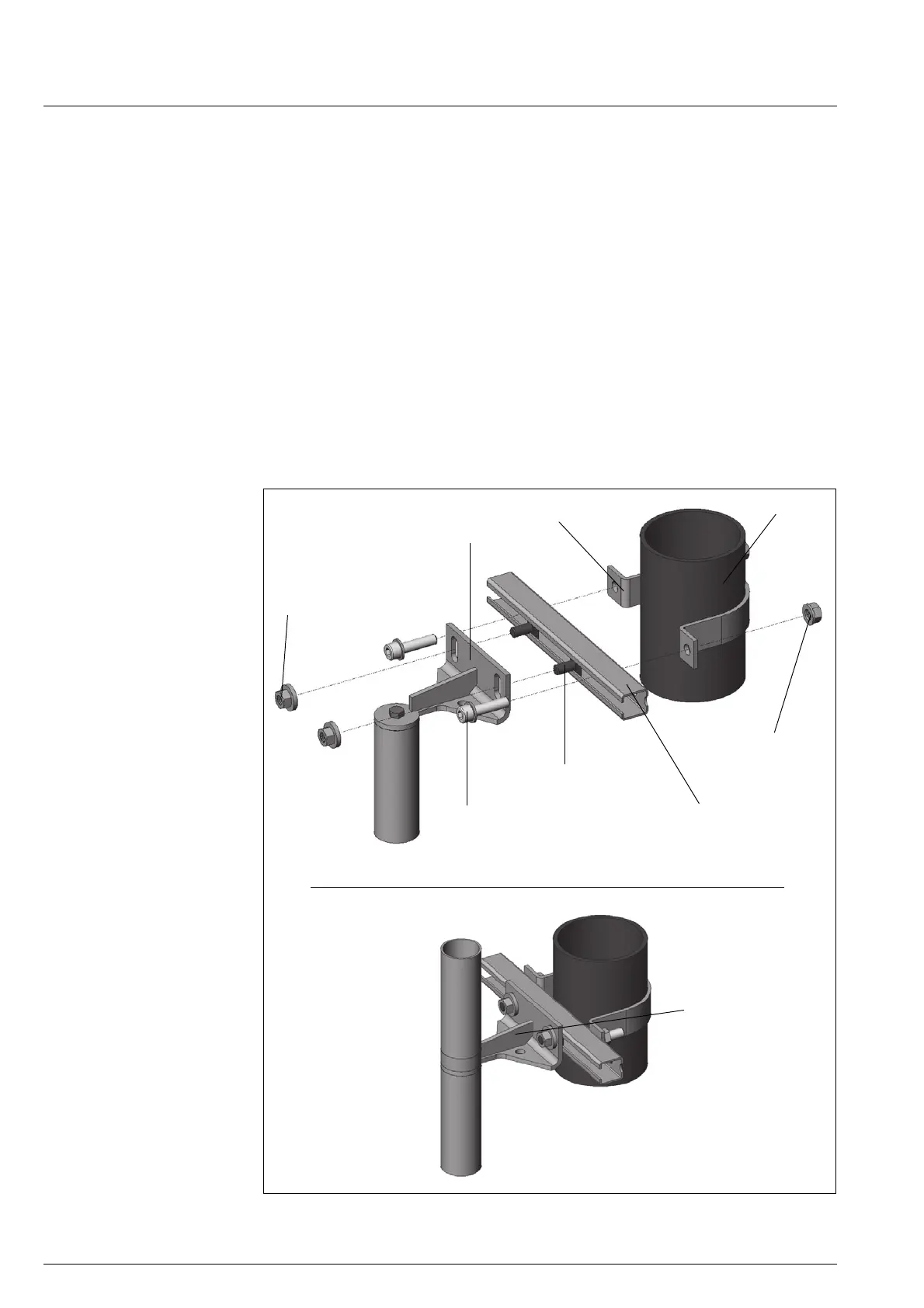

Fig. E-3: Installation of the guide holder for pipe mounting, Illustration of the pipe extension
Hexagon nut (12)
Guide holder (1)
Clamp (5)
Discharge pipe (6)
Hexagon socket bolt (8)
Hammer head bolt (11)
Holding rail (7)
Hexagon nut (9)
Pipe extension (10)
