Transportation and storage en
Installation and operating instructions Wilo Motor T 12 ... 72 + EMU FA, Rexa SUPRA, Rexa SOLID 17
Examples:
Wilo-EMU FA 15.52-245E + T 17.2-4/24HEx-E3
Wilo-Rexa SUPRA-V10-736A + T 17.2-4/24HEx-E3
Wilo-Rexa SOLID-Q10-345A + T 17.2-4/24HEx-E3
A
Material version:
A = standard version
B = corrosion protection 1
D = abrasion protection 1
X = special configuration
Hydraulics type key “Rexa SOLID”
SOLID
Sewage pump with SOLID impeller
Q
Impeller shape:
T = closed two-channel impeller
G = semi-open single-channel impeller
Q = half-open two-channel impeller
10
x10 = nominal diameter of pressure connection
34
Internal performance coefficient
5
Characteristic curve number
A
Material version:
A = standard version
B = corrosion protection 1
D = abrasion protection 1
X = special configuration
Motor type key
T
Surface-cooled motor
17
Size
2
Configuration version
4
Number of poles
24
Package length in cm
H
Seal version
Ex
Ex-rated
E3
IE-efficiency class (derived from IEC60034-30)
4.8 Scope of delivery
Standard pump
ƒ Pump with bare cable end
ƒ Installation and operating instructions
Configured pumps
ƒ Pump with bare cable end
ƒ Cable length as per customer request
ƒ Mounted accessories, e.g. external pencil electrode, pump support foot, etc.
ƒ Installation and operating instructions
4.9 Accessories
ƒ Suspension unit
ƒ Pump support foot
ƒ Special versions with Ceram coatings or special materials
ƒ External pencil electrode for sealing chamber control
ƒ Level control devices
ƒ Fixation accessories and chains
ƒ Switchgear, relays and plugs

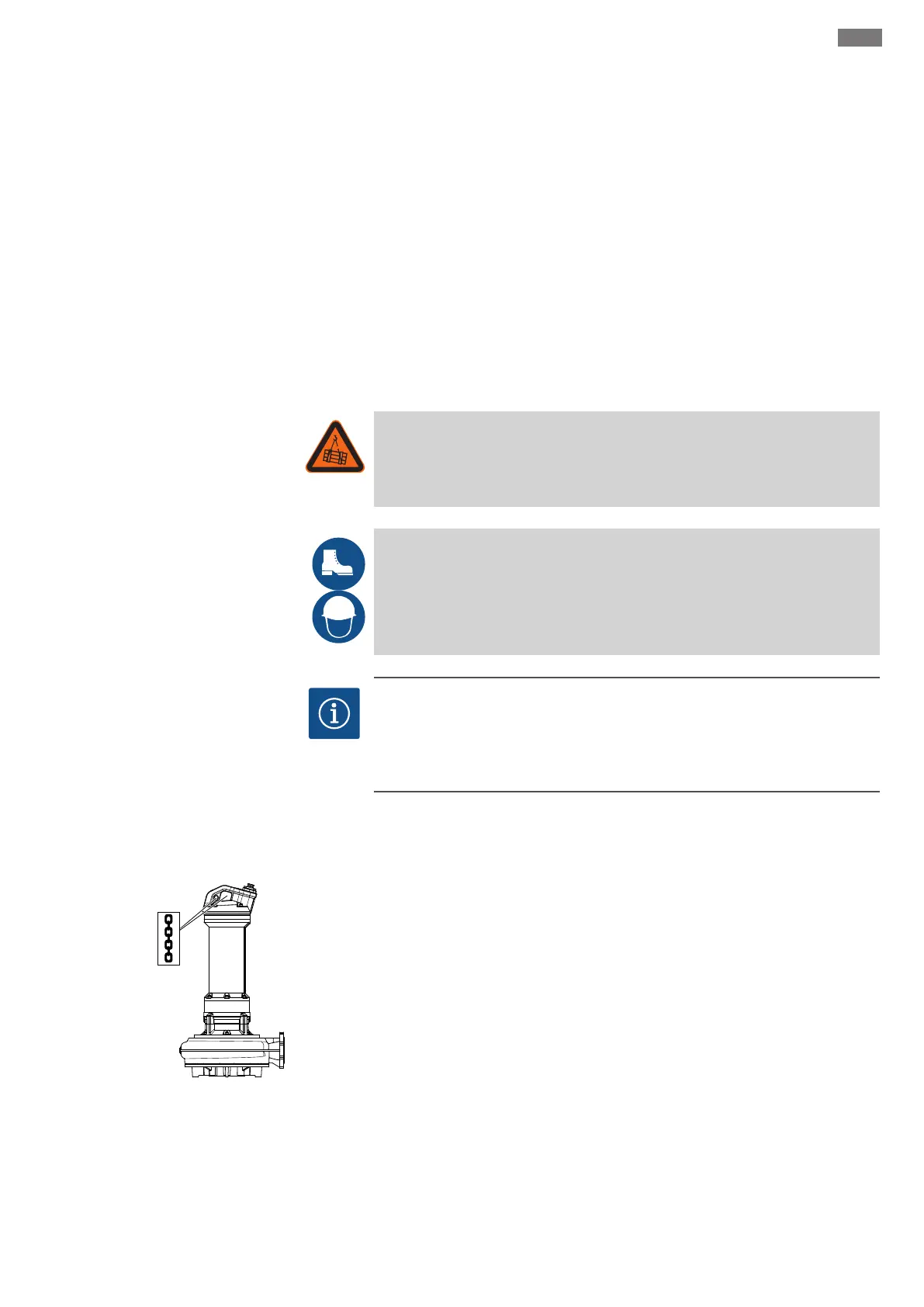

5 Transportation and storage
5.1 Delivery
After receiving the shipment, this must be checked immediately for defects (damage,
completeness). Defects must be noted on the freight documentation! Furthermore, de-
fects must be notified to the transport company or the manufacturer immediately on
the day of receipt of shipment. Subsequently notified defects can no longer be asser-
ted.
