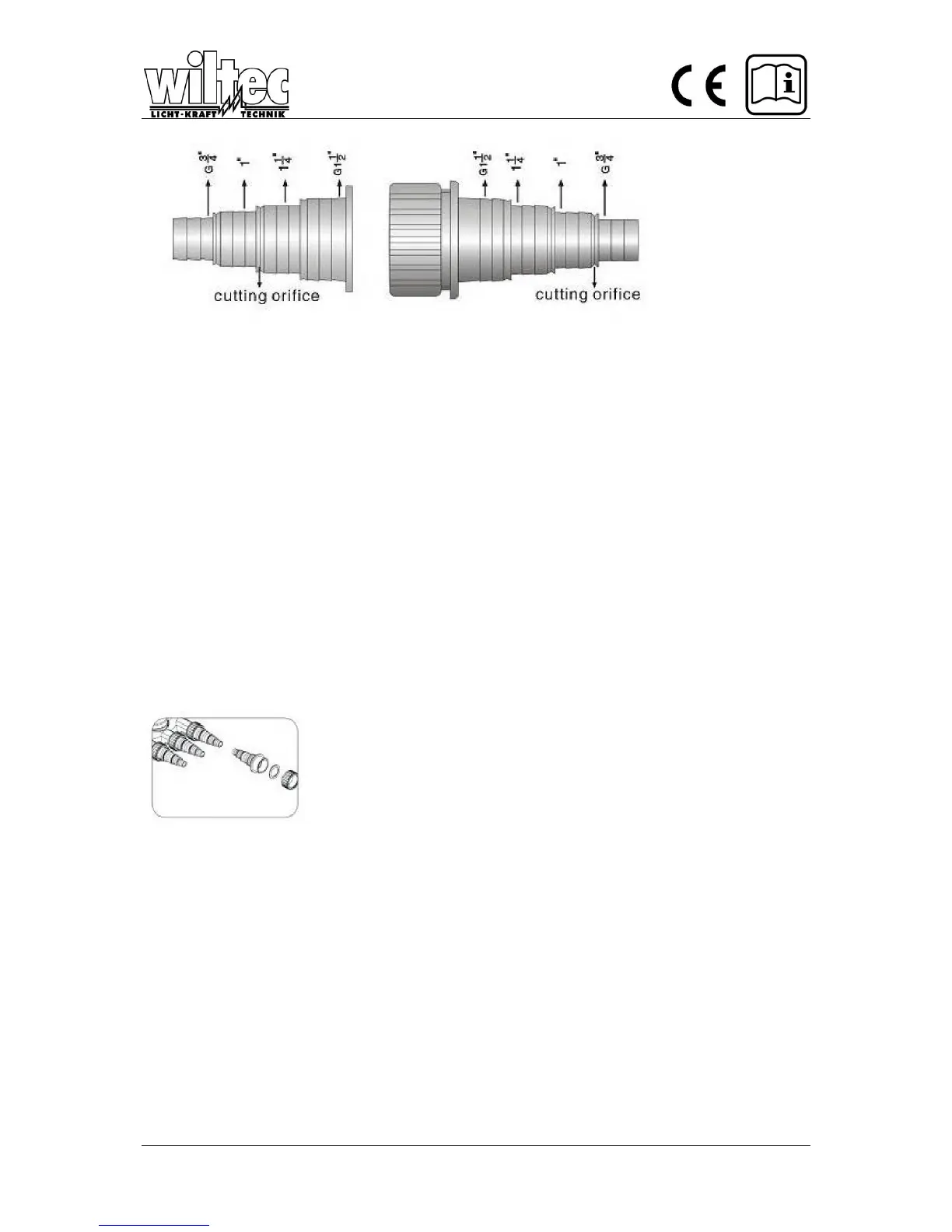

cutting orifice
Hose connector / assembling closing cap:
Slide the nut on the black stepped nozzle. Insert the flat gasket into the nut and
screw it on the water inlet stub and the water outlet stub respectively. Screw the clos-
ing caps on the clean stub.
Connecting the water inlet:
The pump is connected to the nozzle showing the direction of arrow to the filter.
Make use of a hose diameter that is equal to that one of the pump outlet. Saw off the
unused diameter of the hose nozzle.
Connecting the water outlet:
The hose nozzle showing direction of arrow from the filter is the outlet towards the
pond. Connect an appropriate hose to the largest diameter of the nozzle and saw off
the remaining diameter. Make use of hose clamps to prevent loosening of the tubes.
We recommend the heat the hoses with warm water to facilitate the attachment to the
connection.
Connecting the cleaning connection:
In order to mount a drain hose permanently on a cleaning connection (Clean), screw
off the closing cap from the cleaning connection (Clean), mount the third hose nozzle
along with an appropriate hose. When filter-operated, the cleaning connection or the
assembled drain hose have to be closed at any time by means of the closing cap or
an inserted flat gasket. This is meant to be a security in case the switch is set to
“Clean” inadvertently.
Attention! Never operate the device without water flow or without pump filter!
Operating mode of the pressure filter
The pressure filter with its integrated UVC is a sealed filter system for the biological
and mechanical cleaning of pond water.
