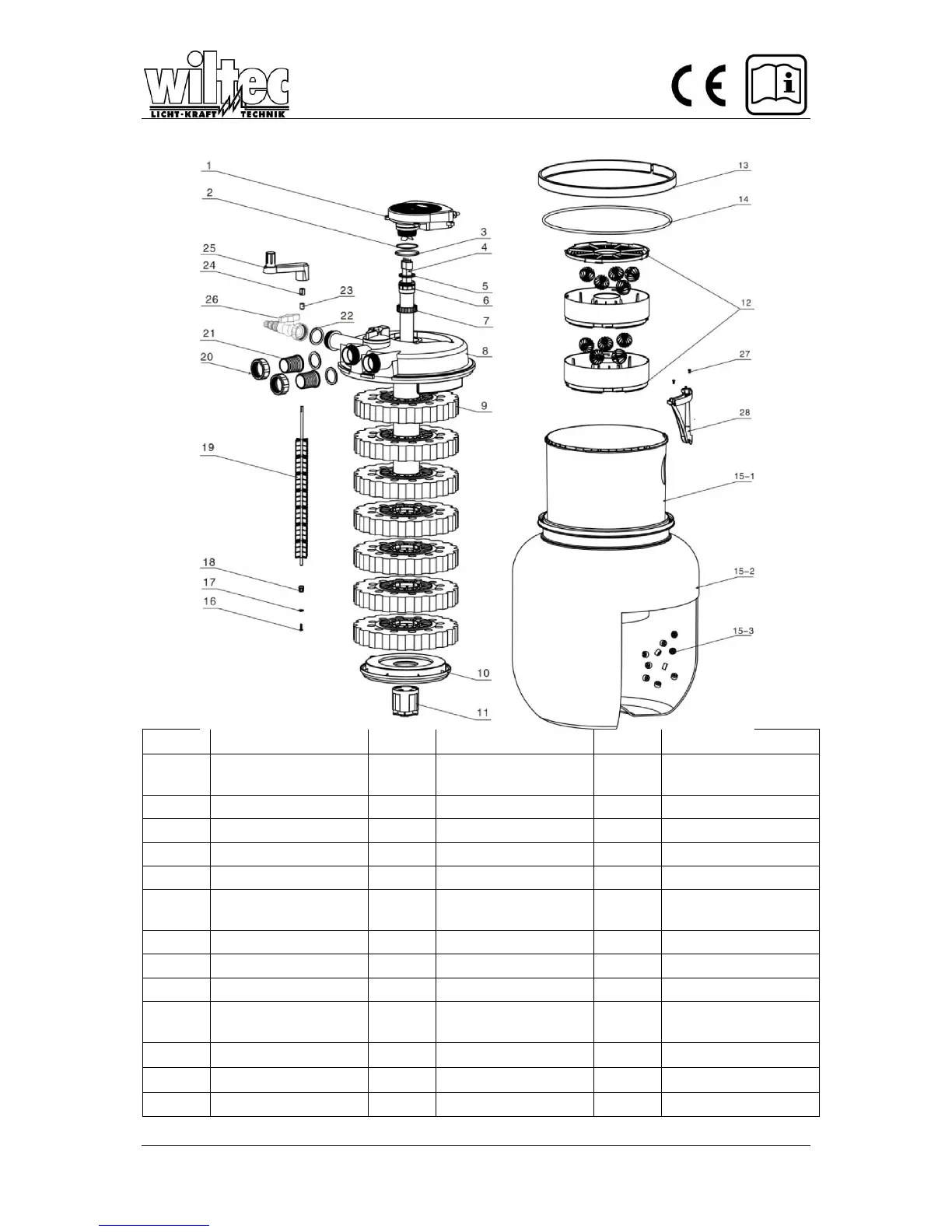

Partlist
No. NAME No. NAME No. NAME
1
UV head with
cable
11 diversion tube 20 inelet&outlet nut
2 O-ring 1 Ø71*2.8 12-1 filter basket base 21-1 inlet&outlet Ø32
3 rubber lining 12-2 filter basket cover 21-2 inlet&outlet Ø38
4 UV-C lamp 55W 12-3 bio-ball around 21-3 inlet&outlet Ø50
5 O-ring 2 Ø21 13 clamp 22 rubber gasket
6 Quartz glass tube 14
O-ring 3
Ø421*7.5
23 up bearing
7 Sealing screw 15-1 inner container 24 shaft connection
8 Lid 15-2 container 25 handle
9-1 sponge part-blue 15-3 bio cell Ø18*10 26 Valve
9-2
sponge part-
yellow
16 screw M5*12 27 screw 2
9-3 sponge holder 17 gasket 28 diversion plate
9-4 sponge press 18 down bearing
10 plate 19 clean gear
