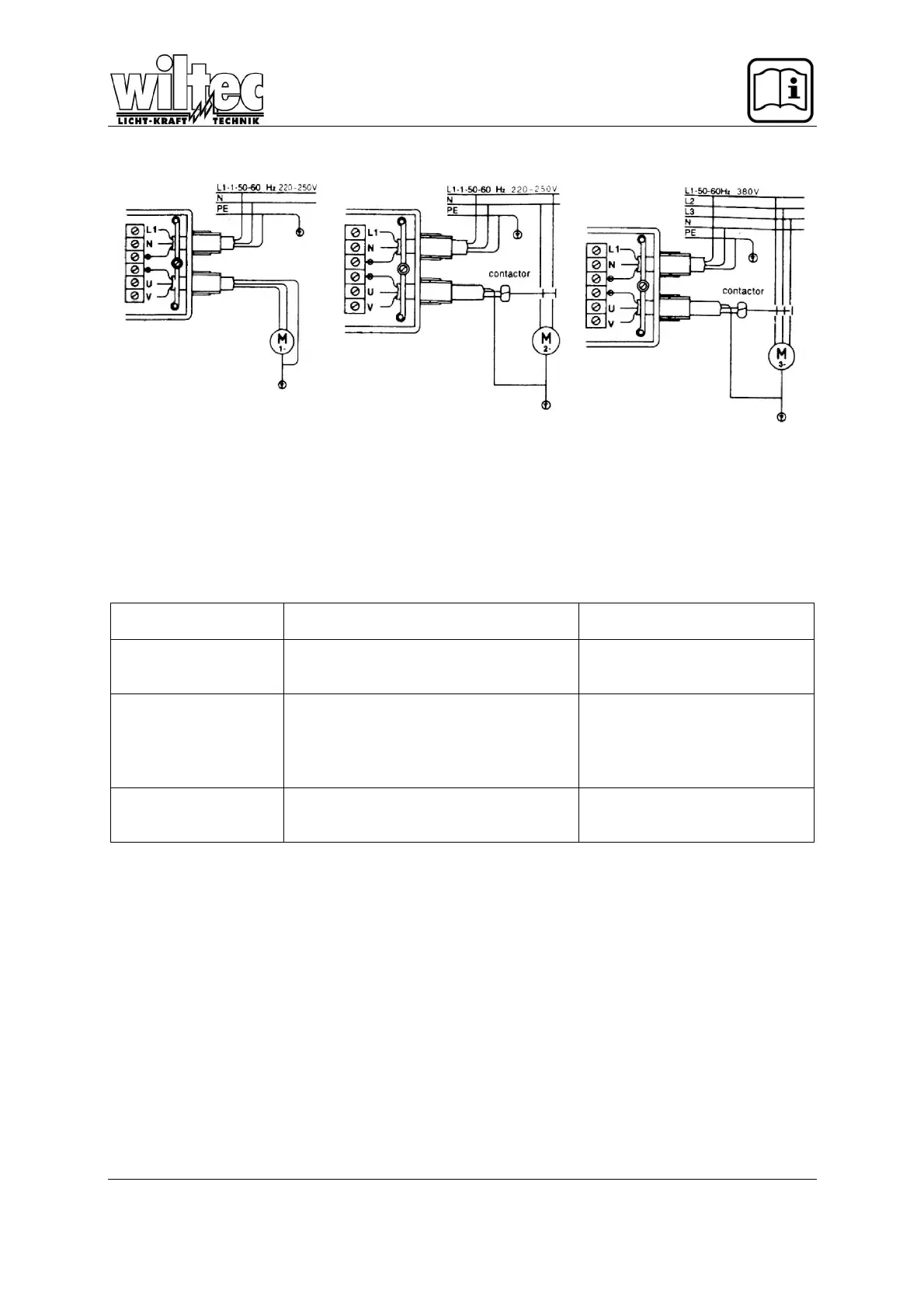

Wiring diagram for connecting different pump motors to the pump control:
Wiring diagram for
single-phase 220V pumps
up to 1,1 kW
Wiring diagram for
single-phase 220V pumps
above(greater than) 1,1 kW
control via 2-phase
relay (contactor), relay selec-
tion depending on the pump
power /capacity
Wiring diagram for
three-phase 400V pump also
above (greater than) 1,1 kW
control via 3-phase relay (con-
tactor), relay selection depend-
ing on the pump power /capac-
ity
Possible dysfunctions and remedy
Dysfunction Device error error external to device
The pump does not
start
-
Circuit board is damaged
-
absent voltage
-
defective pump
-
mixed up electric cables
The pump does not
stop
-
Circuit board is damaged
-
the flow detector is blocked in its up-
per position
.
The reset button is blocked
-
The pump has not sufficient pressure
-
There is a leak with more
than 0,6 l/min loss
Intermittent pump
operation( pump runs
intermittently)
-
Circuit board is damaged
-
The pump has not sufficient pressure
-
There is a leak with more
than 0,6 l/min loss
