4
General Specifications

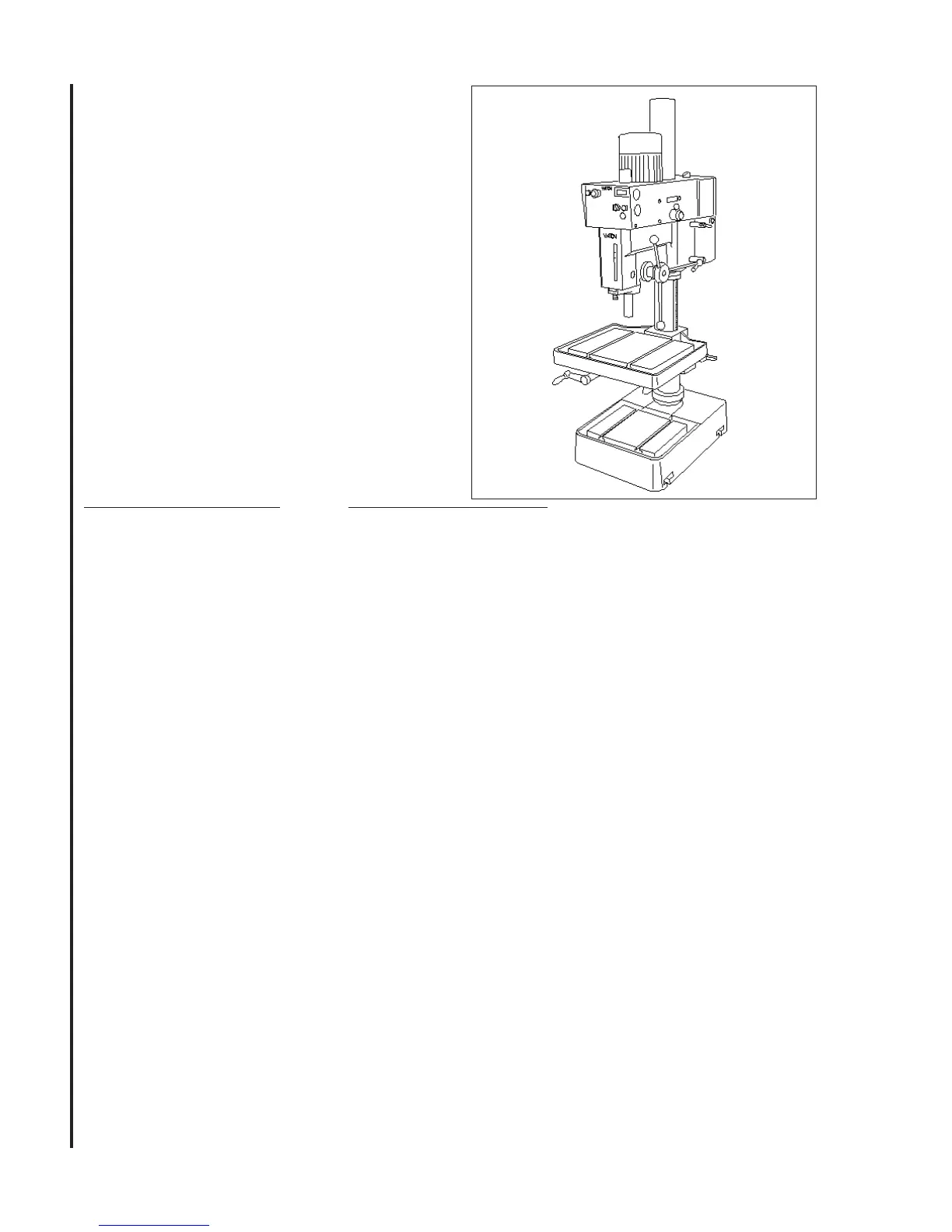

The Wilton 20 Inch Variable Speed Drill presses
Models 2221VS, 2223VS, 2232AC, and 2234AC are
available in manual speed control or inverter speed
control configuration. Electrical power options are
single-phase, 115 and 220 volts, or 3-phase, 440
volts.
Specifications
Manual Speed Control Models Inverter Speed Control Models
2221VS 2223VS 2232AC 2234AC
Drilling Capacity
Cast Iron .............................................. 1-1/4 In. ................. 1-1/4 In. .................... 1-1/2 In. ................. 1-1/2 In.
Steel .................................................... 1 In. ....................... 1 In. .......................... 1-3/8 In. ................. 1-3/8 In.
Spindle to Table (Max.) ................................. 32-3/8 In. ............... 32-3/8 In. .................. 32-3/8 In. ............... 32-3/8 In.
Spindle to Base (Max.) ................................ 44-1/2 In. ............... 44-1/2 In. ..................44-1/2 In. ............... 44-1/2 In.
Spindle to Column (Max.) ............................ 10-7/16 In. ............. 10-7/16 In. ................ 10-7/16 In. ............. 10-7/16 In.
Motor
Rating .................................................. 2 hp, 1-Phase ........ 2 hp, 3-Phase .......... 2 hp, 3-Phase ....... 2 hp, 3-Phase
Voltage ................................................ 115/220 V .............. 220/440V .................. 220V ...................... 440V
Pre-wired Voltage ................................ 115 V ..................... 220V ........................ 220V ...................... 440V
T-Slots (Table/Base)
Number ............................................... 2 ............................ 2 ..............................2 ............................ 2
Size ..................................................... 5/8 In. .................... 5/8 In. ....................... 5/8 In. .................... 5/8 In.
Column Diameter ........................................ 4-1/2 In. ................. 4-1/2 In. ....................4-1/2 In. ................. 4-1/2 In.
Spindle
Travel .................................................. 6 In. ....................... 6 In. ..........................6 In. ....................... 6 In.
Taper ................................................... MT-3 ...................... MT-3 .........................MT-3 ...................... MT-3
RPM (Variable) .................................... 300-2000 ............... 300-2000 ..................65-2000 ................. 65-2000
Quill
Diameter ............................................. 3 In. ....................... 3 In. ..........................3 In. ....................... 3 In.
Travel .................................................. 6 in. ....................... 6 in. ..........................6 in. ....................... 6 in.
Table
Overall ................................................. 22x18-3/4 In. .......... 22x18-3/4 In. ............22x18-3/4 In. .......... 22x18-3/4 In.
Working Surface .................................. 18-1/8x14-3/4 ........ 18-1/8x14-3/4 ........... 18-1/8x14-3/4 ........ 18-1/8x14-3/4
Travel .................................................. 32-3/8 In. ............... 32-3/8 In. ..................32-3/8 In. ............... 32-3/8 In.
Base
Overall ................................................. 26x19 In. ................ 26x19 In. ..................26x19 In. ................ 26x19 In.
Working Surface .................................. 15-1/4x12-1/16 ...... 15-1/4x12-1/16 ......... 15-1/4x12-1/16 ...... 15-1/4x12-1/16
Overall Dimensions
Length ................................................. 34-1/4 In. ............... 34-1/4 In. .................. 36-5/8 In. ............... 36-5/8 In.
Width ................................................... 27 In. ..................... 27 In. ........................27 In. ..................... 27 In.
Height .................................................. 77-1/4 In. ............... 77-1/4 In. .................. 82-1/4 In. ............... 82-1/4 In.
Weight
Net ...................................................... 715 lbs.(325 kgs) ... 715 lbs.(325 kgs) ..... 715 lbs.(325 kgs) ... 715 lbs.(325 kgs)
Gross .................................................. 803 lbs.(365 kgs) ... 803 lbs.(365 kgs) ..... 792 lbs.(360 kgs) ... 792 lbs.(360 kgs)
1. All work shall be secured using either clamps or a vise to the drill press table. It is unsafe to use your hands
to hold any workpiece being drilled.
